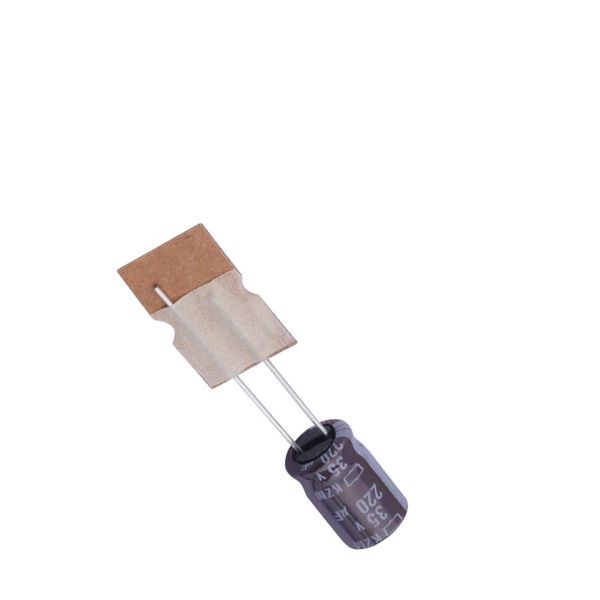

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS Low impedance, 105 KZN P136 KZMSeries Higher ripple Long-Life version of KZH series KZM Endurance with ripple current : 6,000 to 10,000 hours at 105 Newly innovative electrolyte is employed to minimize ESR Longer life Rated voltage range : 6.3 to 50Vdc, Nominal capacitance range : 27 to 10,000F KZH P142 Non solvent resistant type RoHS Compliant SPECIFICATIONS Items Characteristics Category -40 to +105 Temperature Range Rated Voltage Range 6.3 to 50Vdc Capacitance Tolerance 20% (M) (at 20, 120Hz) Leakage Current I=0.01CV or 3A, whichever is greater. Where, I : Max. leakage current ( A), C : Nominal capacitance (F), V : Rated voltage (V) (at 20 after 2 minutes) Dissipation Factor Rated voltage (Vdc) 6.3V 10V 16V 25V 35V 50V (tan) 0.22 0.19 0.16 0.14 0.12 0.10 tan (Max.) When nominal capacitance exceeds 1,000 F, add 0.02 to the value above for each 1,000 F increase. (at 20, 120Hz) 2 max. Low Temperature Z(-25)/Z(+20) Characteristics Z(-40)/Z(+20) 3 max. (at 120Hz) Endurance The following specifications shall be satisfied when the capacitors are restored to 20 after subjected to DC voltage with the rated ripple current is applied (the peak voltage shall not exceed the rated voltage) for the specified period of time at 105. Time 5 &6.3 : 6,000hours 8 : 8,000hours 10 to 18 : 10,000hours Capacitance change 25% of the initial value (6.3, 10Vdc : 30%) D.F. (tan) 200% of the initial specified value Leakage current The initial specified value Shelf Life The following specifications shall be satisfied when the capacitors are restored to 20 after exposing them for 500 hours at 105 without voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4. Capacitance change 25% of the initial value (6.3, 10Vdc : 30%) D.F. (tan) 200% of the initial specified value Leakage current The initial specified value DIMENSIONS mm Terminal Code : E Sleeve(PET : Brown) D 5 6.3 8 10 12.5 16 18 d 0.5 0.5 0.6 0.6 0.6 0.8 0.8 F 2.0 2.5 3.5 5.0 5.0 7.5 7.5 D D+0.5max. L 15min. 4min. L L+1.5max. (5 to 10) (12.5 to 18) Gas escape end seal Vent (Except5 &6.3) PART NUMBERING SYSTEM 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 E KZM AAA E AA AAA M AAA N Supplement code Size code Capacitance tolerance code Capacitance code (ex. 100 F:101, 1,000 F:102) Lead formingtaping code Terminal code Voltage code (ex. 6.3V:6R3, 10V:100) Series code Category Please refer toProduct code guide (radial lead type RATED RIPPLE CURRENT MULTIPLIERS Frequency Multipliers Frequency (Hz) 1k 10k 100k 120 Capacitance (F) 27 to 180 0.40 0.75 0.90 1.00 220 to 560 0.50 0.85 0.94 1.00 680 to 1,800 0.60 0.87 0.95 1.00 2,200 to 3,900 0.75 0.90 0.95 1.00 4,700 to 10,000 0.85 0.95 0.98 1.00 Note : T he endurance of capacitors is reduced with internal heating produced by ripple current at the rate of halving the lifetime with every 5 rise. When long life performance is required in actual use, the rms ripple current has to be reduced. Product specifications in this catalog are subject to change without notice.Request our product specifications before purchase and/or use. Please use our products based on the information contained in this catalog and product specifications. 139 CAT. No. E1001N D d F0.5 F0.5MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS Low impedance, 105 KZMSeries STANDARD RATINGS Impedance (max/100kHz) WV Cap Case size Rated ripple current tan Part No. (Vdc) (F) DL(mm) (mArms/105,100kHz) 20 -10 220 5 11 0.22 0.22 0.80 345 EKZM6R3E221ME11D 470 6.3 11 0.22 0.094 0.35 540 EKZM6R3E471MF11D 820 8 11.5 0.22 0.056 0.19 945 EKZM6R3E821MHB5D 1,200 8 15 0.22 0.045 0.15 1,250 EKZM6R3E122MH15D 1,200 10 12.5 0.22 0.039 0.14 1,330 EKZM6R3E122MJC5S 1,500 8 20 0.22 0.029 0.11 1,500 EKZM6R3E152MH20D 1,800 10 16 0.22 0.028 0.10 1,760 EKZM6R3E182MJ16S 2,200 10 20 0.24 0.020 0.060 1,960 EKZM6R3E222MJ20S 6.3 2,700 10 25 0.24 0.018 0.054 2,250 EKZM6R3E272MJ25S 3,900 12.5 20 0.26 0.017 0.043 2,480 EKZM6R3E392MK20S 4,700 12.5 25 0.28 0.015 0.038 2,900 EKZM6R3E472MK25S 5,600 12.5 30 0.30 0.013 0.033 3,450 EKZM6R3E562MK30S 6,800 12.5 35 0.32 0.012 0.031 3,570 EKZM6R3E682MK35S 6,800 16 20 0.32 0.015 0.038 3,250 EKZM6R3E682ML20S 8,200 16 25 0.36 0.013 0.035 3,630 EKZM6R3E822ML25S 10,000 18 25 0.40 0.012 0.031 3,650 EKZM6R3E103MM25S 150 5 11 0.19 0.22 0.80 345 EKZM100E151ME11D 330 6.3 11 0.19 0.094 0.35 540 EKZM100E331MF11D 680 8 11.5 0.19 0.056 0.19 945 EKZM100E681MHB5D 1,000 8 15 0.19 0.045 0.15 1,250 EKZM100E102MH15D 1,000 10 12.5 0.19 0.039 0.14 1,330 EKZM100E102MJC5S 1,500 8 20 0.19 0.029 0.11 1,500 EKZM100E152MH20D 1,500 10 16 0.19 0.028 0.10 1,760 EKZM100E152MJ16S 1,800 10 20 0.19 0.020 0.060 1,960 EKZM100E182MJ20S 10 2,200 10 25 0.21 0.018 0.054 2,250 EKZM100E222MJ25S 3,300 12.5 20 0.23 0.017 0.043 2,480 EKZM100E332MK20S 3,900 12.5 25 0.23 0.015 0.038 2,900 EKZM100E392MK25S 4,700 12.5 30 0.25 0.013 0.033 3,450 EKZM100E472MK30S 4,700 16 20 0.25 0.015 0.038 3,250 EKZM100E472ML20S 5,600 12.5 35 0.27 0.012 0.031 3,570 EKZM100E562MK35S 6,800 16 25 0.29 0.013 0.035 3,630 EKZM100E682ML25S 8,200 18 25 0.33 0.012 0.031 3,650 EKZM100E822MM25S 100 5 11 0.16 0.22 0.80 345 EKZM160E101ME11D 220 6.3 11 0.16 0.094 0.35 540 EKZM160E221MF11D 470 8 11.5 0.16 0.056 0.19 945 EKZM160E471MHB5D 680 8 15 0.16 0.045 0.15 1,250 EKZM160E681MH15D 680 10 12.5 0.16 0.039 0.14 1,330 EKZM160E681MJC5S 1,000 8 20 0.16 0.029 0.11 1,500 EKZM160E102MH20D 1,000 10 16 0.16 0.028 0.10 1,760 EKZM160E102MJ16S 1,500 10 20 0.16 0.020 0.060 1,960 EKZM160E152MJ20S 16 1,800 10 25 0.16 0.018 0.054 2,250 EKZM160E182MJ25S 2,200 12.5 20 0.18 0.017 0.043 2,480 EKZM160E222MK20S 2,700 12.5 25 0.18 0.015 0.038 2,900 EKZM160E272MK25S 3,300 12.5 30 0.20 0.013 0.033 3,450 EKZM160E332MK30S 3,300 16 20 0.20 0.015 0.038 3,250 EKZM160E332ML20S 3,900 12.5 35 0.20 0.012 0.031 3,570 EKZM160E392MK35S 4,700 16 25 0.22 0.013 0.035 3,630 EKZM160E472ML25S 5,600 18 25 0.24 0.012 0.031 3,650 EKZM160E562MM25S : Enter the appropriate lead forming or taping code. Product specifications in this catalog are subject to change without notice.Request our product specifications before purchase and/or use. Please use our products based on the information contained in this catalog and product specifications. 140 CAT. No. E1001N
