T2271A CK Tools

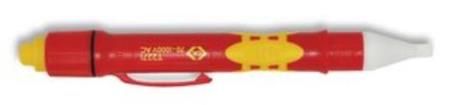

PRODUCT SPECIFICATION Brand C.K Product Range Non-contact voltage detector Catalogue number 2271A, 2272A Date 03/06/2013 Range Description Non-contact voltage detectors Features Suitable for non-contact AC voltage tests, earthing/ground connection checks, proper connection check, broken wire detection High sensitivity tester, offering an extensive non- contact voltage detection range of 70-1000v AC T2271A - Bright red LED illumination on detection of AC voltage T2272A - Bright red LED illumination & audible alarm on detection of AC voltage Installation category CAT IV 1000v offers protection against transient voltage spikes for the safe testing of fixed installations T2271A Double insulated to ensure safe use near live circuitry Ergonomic dual component body constructed with handy pocket clip On/Off button for longer battery life Uses 2 x 1.5v AAA batteries (Not supplied) T2272A Item Item Description Commodity Carton EAN No Number code Qty Non-contact voltage detector with visual T2271A 5013969844931 90303399 36 indicator Non-contact voltage detector with T2272A 5013969844948 90303399 36 audible/visual indicator Copyright Carl Kammerling International Ltd Technical product information Specifications T2271A & T2272A Voltage detection range 70-1000v AC Operating temperature -10 to +50 Degrees C Frequency range 50 to 500Hz Indicator (T2271A) Visual LED indicator Indicator (T2272A) Visual LED indicator & audible alarm Installation category CAT IV Power supply 2 x 1.5v AAA batteries (Not supplied) Standards compliance None applicable User health and safety None applicable information RoHS/WEEE The products are REACH, RoHS and WEEE compliant compliance Material safety data None applicable Warranty C.K voltage detectors are guaranteed for 12 months against imperfect materials or workmanship. Damage caused by use outside of the operating instruction guideline is not covered Country of origin China Dimensional details Product only Product on primary packaging Item Width mm Depth mm Height mm Net weight g Width mm Depth mm Height mm Gross weight g T2271A 23 19 160 18 113 20 208 39 T2272A 23 19 165 22 113 20 208 43 Shelf box (secondary packaging) Euro Pallet data Wi x Hi Item Width mm Depth mm Height mm Gross No of Number of weight g cartons on rows high base T2271A 220 460 125 1625 - - T2272A 220 460 125 1769 - - Packaging waste details Primary Packaging Secondary packaging Item Plastic g Use Card g Use Plastic g Use Card g Use Backing T2271A 10 Blister 11 - - 221 Box card Backing T2272A 10 Blister 11 - - 221 Box card Copyright Carl Kammerling International Ltd
