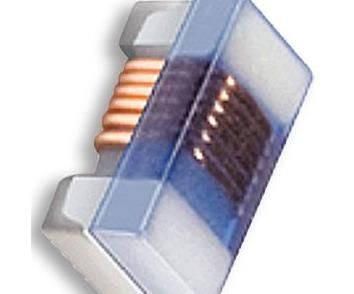

Web Sample Tools & Support Document 198-1 page & buy software & FAQ Chip Inductors 0402CS (1005) Halogen Continuing in our long tradition of innovation and lead- C B Free overall D Pick and H ership, Coilcraft introduced the industrys first 0402 place wirewound inductor. material I F This series shares all of the characteristics of Coilcrafts G J A AEC other ceramic inductors: exceptionally high Q factors, + Q200 125C F I especially at use frequencies outstanding self-resonant frequency tight inductance tolerance and excellent Terminal wraparound: E Recommended batch-to-batch consistency. terminal approx 0.007/0,18 both ends Land Pattern A B C D max max max ref E F G H I J 0.047 0.025 0.026 0.010 0.020 0.009 0.022 0.026 0.014 0.018 inches Typical L vs Frequency 1,19 0,64 0,66 0,25 0,51 0,23 0,56 0,66 0,36 0,46 mm 60 56 nH Core material Ceramic 50 Environmental RoHS compliant, halogen free Terminations RoHS matte Sn over Ni over Ag-Pt-glass frit. Other terminations available at additional cost. 40 Weight 0.8 1.0 mg Ambient temperature 40C to +125C with Irms current. Maximum part temperature +140C (ambient + temp rise). 30 27 nH Storage temperature Component: 40C to +140C. Tape and reel packaging: 40C to +80C 20 19 nH Resistance to soldering heat Max three 40 second reflows at +260C, parts cooled to room temperature between cycles 12 nH Temperature Coefficient of Inductance (TCL) +25 to +125 ppm/C 10 Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30C / 5.6 nH 85% relative humidity) 1 nH 0 Packaging 2000 or 5000 or 10000 per 7 reel 110 100 1000 10000 Paper tape: 8 mm wide, 0.68 mm thick, 2 mm pocket spacing Frequency (MHz) PCB washing Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. See Doc787 PCB Washing.pdf. Typical Q vs Frequency 120 110 12 nH 5.6 nH 100 19 nH 90 27 nH 80 70 56 nH 60 50 1 nH 40 30 20 10 0 110 100 1000 10000 Frequency (MHz) Document 198-1 Revised 08/06/21 US +1-847-639-6400 sales coilcraft.com UK +44-1236-730595 sales coilcraft-europe.com Coilcraft Inc. 2021 This product may not be used in medical or high Taiwan +886-2-2264 3646 sales coilcraft.com.tw risk applications without prior Coilcraft approval. China +86-21-6218 8074 sales coilcraft.com.cn Specification subject to change without notice. Singapore + 65-6484 8412 sales coilcraft.com.sg Please check web site for latest information. Q Factor Inductance (nH)Document 198-2 Designers Kit C328 contains 20 each of all 5% values Designers Kit C328-2 contains 20 each of all 2% values 0402CS Series (1005) 2 900 MHz 1.7 GHz 5 6 7 Inductance Percent SRF min DCR max Irms 1 3 4 4 Part number (nH) tolerance L typ Q typ L typ Q typ (GHz) (Ohms) (mA) 0402CS-1N0XJR 1.0 5 1.02 77 1.02 69 12.70 0.045 1360 0402CS-1N2XJR 1.2 5 1.17 28 1.17 38 12.90 0.090 740 0402CS-1N8X R 1.8 5,3,2 1.78 54 1.78 75 12.00 0.070 1040 0402CS-1N9X R 1.9 5,3,2 1.72 68 1.74 82 11.30 0.070 1040 Halogen 0402CS-2N0X R 2.0 5,3,2 1.93 54 1.93 75 11.10 0.070 1040 Free 0402CS-2N2X R 2.2 5,3,2 2.19 59 2.23 100 10.80 0.070 960 0402CS-2N4X R 2.4 5,3,2 2.24 51 2.27 68 10.50 0.068 790 0402CS-2N7X R 2.7 5,3,2 2.58 42 2.60 61 10.40 0.120 640 0402CS-3N3X R 3.3 5,3,2 3.10 65 3.12 87 7.00 0.066 840 0402CS-3N6X R 3.6 5,3,2 3.56 45 3.62 71 6.80 0.066 840 AEC 0402CS-3N9X R 3.9 5,3,2 3.89 50 4.00 75 6.00 0.066 840 + Q200 125C 0402CS-4N3X R 4.3 5,3,2 4.19 47 4.30 71 6.00 0.091 700 0402CS-4N7X R 4.7 5,3,2 4.55 48 4.68 68 4.77 0.130 640 0402CS-5N1X R 5.1 5,3,2 5.15 56 5.25 82 4.80 0.083 800 0402CS-5N6X R 5.6 5,3,2 5.16 54 5.28 81 4.80 0.083 760 0402CS-6N2X R 6.2 5,3,2 6.16 52 6.37 76 4.80 0.083 760 0402CS-6N8X R 6.8 5,3,2 6.56 63 6.93 78 4.80 0.083 680 0402CS-7N5X R 7.5 5,3,2 7.91 60 8.22 88 4.80 0.10 680 0402CS-8N2X R 8.2 5,3,2 8.50 57 8.85 84 4.40 0.10 680 0402CS-8N7X R 8.7 5,3,2 8.78 54 9.21 73 4.10 0.20 480 0402CS-9N0X R 9.0 5,3,2 9.07 62 9.53 78 4.16 0.10 680 0402CS-9N5X R 9.5 5,3,2 9.42 54 9.98 69 4.00 0.20 480 0402CS-10NX R 10 5,3,2 9.8 50 10.10 67 3.90 0.20 480 0402CS-11NX R 11 5,3,2 10.7 52 11.20 78 3.68 0.12 640 0402CS-12NX R 12 5,3,2 11.9 53 12.70 71 3.60 0.12 640 0402CS-13NX R 13 5,3,2 13.4 51 14.63 57 3.45 0.21 440 0402CS-15NX R 15 5,3,2 14.6 55 15.50 77 3.28 0.17 560 0402CS-16NX R 16 5,3,2 16.6 46 18.86 47 3.10 0.22 560 0402CS-18NX R 18 5,3,2 18.3 57 20.28 62 3.10 0.23 420 0402CS-19NX R 19 5,3,2 19.1 50 21.10 67 3.04 0.20 480 0402CS-20NX R 20 5,3,2 20.7 52 23.66 53 3.00 0.25 420 0402CS-22NX R 22 5,3,2 23.2 53 26.75 53 2.80 0.30 400 0402CS-23NX R 23 5,3,2 23.8 49 26.90 64 2.72 0.30 400 0402CS-24NX R 24 5,3,2 25.1 51 29.50 50 2.70 0.30 400 0402CS-27NX R 27 5,3,2 28.7 49 33.50 63 2.48 0.30 400 0402CS-30NX R 30 5,3,2 31.1 46 38.50 39 2.35 0.30 400 0402CS-33NX R 33 5,3,2 34.9 31 41.74 32 2.35 0.30 400 0402CS-36NX R 36 5,3,2 39.5 44 48.40 53 2.32 0.44 320 0402CS-39NX R 39 5,3,2 41.7 47 50.23 45 2.10 0.55 200 0402CS-40NX R 40 5,3,2 39.0 44 47.40 33 2.24 0.44 320 0402CS-43NX R 43 5,3,2 45.8 46 61.55 34 2.03 0.81 100 0402CS-47NX R 47 5,3,2 50.0 38 2.10 0.83 150 0402CS-51NX R 51 5,3,2 56.6 40 1.75 0.82 100 0402CS-56NX R 56 5,3,2 62.8 42 1.76 0.97 100 0402CS-68NX R 68 5,3,2 78.2 36 1.62 1.12 100 0402CS-82NX R 82 5,3,2 1.26 1.55 50 0402CS-R10X R 100 5,3,2 1.16 2.00 30 0402CS-R12X R 120 5,3,2 1.10 2.20 50 1. When ordering, specify tolerance, termination and packaging codes: 2. Inductance measured at 250 MHz using a Coilcraft SMD-F test fixture and Coilcraft-provided correlation pieces with an Agilent/HP 4286 0402CS-R12XJRW impedance analyzer. 3. Tolerances in bold are stocked for immediate shipment. Tolerance: G = 2% H = 3% J = 5% 4. Q measured using an Agilent/HP 4291A with an Agilent/HP 16193 (Table shows stock tolerances in bold.) test fixture. Termination: R = RoHS matte Sn over Ni over Ag-Pt-glass frit. 5. For SRF >6 GHz, measured using an Agilent/HP 8722ES network Special order: analyzer and a Coilcraft SMD-D test fixture. For SRF 6 GHz, measured T = RoHS Sn/Ag/Cu (95.5/4.0/0.5) using an Agilent/HP 8753D network analyzer and a Coilcraft SMD-D S = Not RoHS Sn/Pb (63/37). test fixture. Packaging: W = 7 machine-ready reel. EIA-481 punched paper tape 6. DCR measured on a micro-ohmmeter. (2000 parts per full reel). Quantities less than full reel 7. Current that causes a 15C temperature rise from 25C ambient. This available: in tape (not machine ready) or with leader information is for reference only and does not represent absolute and trailer ( 25 charge). maximum ratings. Q = 7 machine-ready reel. EIA-481 punched paper tape 8. Electrical specifications at 25C. (5000 parts per full reel). Quantities less than full reel Refer to Doc 362 Soldering Surface Mount Components before soldering. available: in tape (not machine ready) or with leader and trailer ( 25 charge). Y = 7 machine-ready reel. EIA-481 punched paper tape. Factory order only, not stocked (10000 parts per full reel). U = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from U to W. Document 198-2 Revised 08/06/21 US +1-847-639-6400 sales coilcraft.com UK +44-1236-730595 sales coilcraft-europe.com Coilcraft Inc. 2021 This product may not be used in medical or high Taiwan +886-2-2264 3646 sales coilcraft.com.tw risk applications without prior Coilcraft approval. China +86-21-6218 8074 sales coilcraft.com.cn Specification subject to change without notice. Singapore + 65-6484 8412 sales coilcraft.com.sg Please check web site for latest information.
