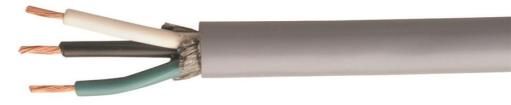

PRODUCT DATA SHEET Controlled Document - Engineering Drive 1530 Shields Drive Waukegan, IL 60085 Toll-Free (800) 323-9355 Fax: (847) 689-1192 PART NUMBER: 20037 DESCRIPTION: 14/3 STRANDED TYPE STOW FLEXIBLE POWER CABLE CONSTRUCTION: This cable consists of three bare copper insulated conductors cabled with fillers and an overall jacket. APPROVALS: UL Standard 62, CSA 22.2 No. 49, NEC Article 400. APPLICATION: 600V Portable Oil and Water Resistant Outdoor Flexible Power Cable Construction Parameters: Conductor 14 AWG Bare Copper Stranding 41/30 Insulation Material PVC Insulation Thickness 0.046 Nom. Insulated Conductor Diameter 0.166 Nom. Number of Conductors 3 Lay Length 2.00 Nom. Filler Type Polypropylene Separator/Wrap Paper Tissue Jacket Material PVC Jacket Thickness 0.083 Nom. Overall Cable Diameter 0.525 Nom. Approximate Cable Weight 162.0 Lbs/1M Nom. Flame Rating UL/CSA Horizontal Flame Test Electrical Properties: O O Temperature Rating -20 C to 60 C Operating Voltage 600 V RMS Max. O DC Resistance per Conductor 20 C 2.58 Ohms/1M Nom. Insulation Colors Black White Green Jacket Color Yellow or Gray (Other colors available for mimimun order - consult factory) CCI ROYAL E54864 14-3 STOW (UL) 600V CSA LL39753 12-3 Legend (Indent Print) STOW 60C FT1 WATER-RESISTANT This product complies with European Directive 2002/95/EC (RoHS) On special orders, the customer will accept all factory lengths and +/- 10 percent of total order requested. The information presented here is, to the best of our knowledge, true and accurate. Since conditions of use are beyond Coleman Cable s control all product data presented is for informational purposes only and does not create a binding obligation or liability on Coleman Cable or confer any rights on any customer. The sale of products(s) is conditioned upon acceptance of a purchase order subject to Coleman Cable s standard terms and conditions contained therein, including without limitation Coleman Cable s standard warranty. Coleman cable disclaims all liability in connection with the use of information contained herein or otherwise. This specification is proprietary intellectual property of Coleman Cable. Any information contained herein shall not be disclosed to any party without written consent of Coleman Cable. Customer Name Customer Approval Specification Issue Date: October 13, 2006 1-800-323-9355 (Phone) Designed By: PEP 20037 1-847-689-1192 (Fax) 2006 Coleman Cable, Inc.X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for Coleman Cable manufacturer: Other Similar products are found below : Coleman Cable
