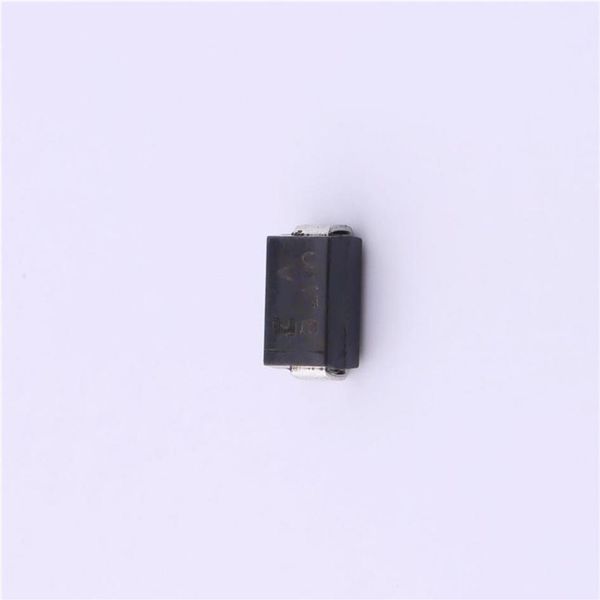

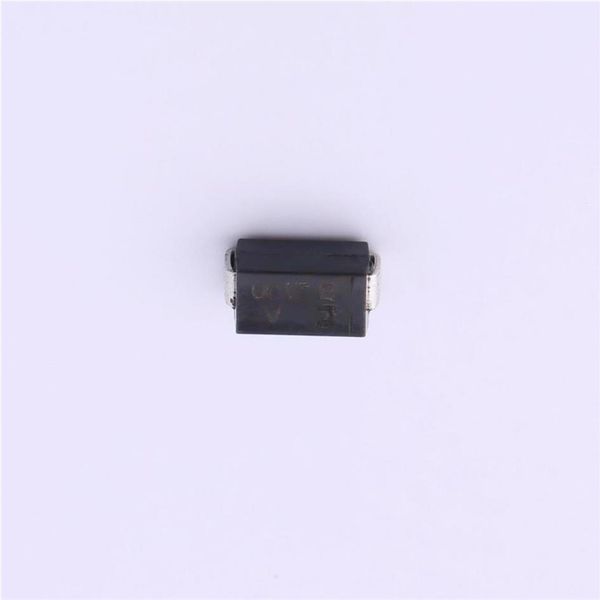

SMD Schottky Barrier Rectifiers ACDBA2100-HF Reverse Voltage: 100 Volts Forward Current: 2.0 Amp RoHS Device DO-214AC (SMA) Halogen free Features 0.065 (1.65) 0.110 (2.79) 0.049 (1.25) 0.100 (2.54) - Low profile package. - Ideal for automated placement. 0.177 (4.50) 0.157 (3.99) - Guard Ring for over voltage protection. - Low forward voltage drop . 0.012 (0.305) 0.006 (0.152) - Comply with AEC-Q101 0.090 (2.29) Mechanical data 0.078 (1.98) 0.008(0.20) - Case: DO-214AC / SMA, molded plastic. 0.060 (1.52) 0.004(0.10) 0.030 (0.76) 0.208 (5.28) - Epoxy: UL flammability classification rate 94V-0 . 0.193 (4.90) - Terminals: Lead free plating (Tin finish). -Solderable per MIL-STD-202, Method 208. Dimensions in inches and (millimeter) - Polarity: Indicated by cathode band. Circuit diagram - Weight: 0.062 grams(approx.). Maximum Ratings (at TA=25C unless otherwise noted) Symbol Parameter Conditions MIN. TYP. MAX. Unit Repetitive peak reverse voltage VRRM 100 V DC blocking voltage VDC 100 V RMS voltage VRMS 70 V Average forward rectified current IF 2 A 8.3ms single half sine-wave superimposed Peak forward surge current IFSM 50 A on rate load (JEDEC method) Operating Temperature range TJ -55 +150 C Storage temperature range TSTG -55 +150 C Electrical Characteristics (at TA=25C unless otherwise noted) Symbol Parameter Conditions MIN. TYP. MAX. Unit Instantaneous forward voltage IF = 2A, TA=25C VF 0.85 V VR = VRRM, TA=25C IR 0.2 mA Reverse Current VR = VRRM, TA=100C IR 5.0 mA Junction capacitance (Note 1) f=1MHZ and applied 4V DC reverse Voltage CJ 70 pF Thermal Resistance Junction to case R JC 40 C/W Note: 1. Measured at 1.0MHZ and applied reverse voltage of 4.0V DC. Company reserves the right to improve product design , functions and reliability without notice. REV: A AQW-JB011 Page 1 Comchip Technology CO., LTD.SMD Schottky Barrier Rectifiers Rating and Characteristics Curvers (ACDBA2100-HF) Fig.1 - Typical Forward Current Fig.2 - Typical Forward Characteristics Derating Curve 3.0 100 2.5 10 2.0 1.0 1.5 1.0 0.1 0.5 TJ=25C Pulse Width 300us 2% Duty Cycle 0.01 0 75 0 25 50 100 125 150 175 0.4 0.5 0.6 0.7 0.8 0.9 Case Temperature, (C) Forward Voltage, (V) Fig.3 - Maximum Non-repetitive Fig.4 - Typical Reverse Characteristics Forward Surge Current 100 50 TJ=25C 8.3ms single half sine wave, JEDEC method 40 10 100C 30 1.0 20 0.1 25C 10 0.01 0 0.001 1 10 100 20 40 60 80 100 Number of Cycles at 60Hz Percent of Rated Peak Reverse Voltage, (%) Fig.5 - Typical Junction Capacitance 500 400 300 200 100 0 0 1 10 100 Reverse Voltage, (V) Company reserves the right to improve product design , functions and reliability without notice. REV: A AQW-JB011 Page 2 Comchip Technology CO., LTD. Junction Capacitance, (pF) Peak Forward Surge Current, (A) Average Forward Current, (A) Reverse Leakage Current, (mA) Instantaneous Forward Current, (A)
