2502-2722-020 Comus

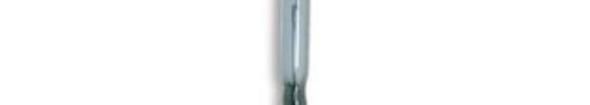

Reed Switch - Miniature - Normally Open Contacts Part Number : GC2722 Product Data Sheet PICTURE DIMENSIONS 19 0.55 2.6 (0.748) (0.0217) (0.102) 55.0 (2.165) Drawings not to scale All dimensions in mm (inches) nominal. SPECIFICATION Contact Form Normally Open Contact Material Rhodium Switching Capacity Max. 12 VA Switching Voltage Max. 230 VAC/DC Switching Current Max. 1.0 A Carrying Current Max. 2.0 A Dielectric Strength Min. 400 VDC Contact Resistance Max. 100 mOhms 11 Insulation Resistance Min. 10 Pull - In - Sensitivity 30 - 50 AT Min. Drop - Out - Sensitivity 5 Max. Bounce Time 0.5 ms Max. Release Time 0.10 ms Typ. Resonant Frequency 2900 Hz Max. Operating Frequency 200 Hz Vibration (10-1000Hz) 35 g Shock (11 ms) 50 Typ. Capacitance 0.5 pF Operating Temperature Range -40C + 125C Type Test Coil 1700 NOTE Ordering Information When cutting or bending switch leads it is important that PART NUMBER 2722 30 50 the glass seal is not damaged. The cutting or bending Type point should be no closer than 3mm (.118in.) to the glass to metal seal and the lead should be supported between Minimum (AT) the cutting or bending point and the glass to metal seal. Sensitivity We offer a crop and form service for Reed Switches to Maximum (AT) be customized to your specification. Sensitivity Example: Did you know we also sell Type 2722 Standard Sensitivity. Pull-in sensitivity between 30-50 AT is PART NO: 2722 30 50 Available in ranges of 5 AT e.g: 30-35, 35-40 etc. Float Switches Magnets Movement Proximity Acceleration / Reed Relays Solid State Sensors Switches Shock Switches Relays Rev. No. Revision Note Date Signature 2 Datasheet Redesign 26-05-06 NG As part of the company policy of continued product improvement, specifications may change without notice. Our sales office will be pleased to help you with the latest information on this product range and the details of our full design and manufacturing service. All products are supplied to our standard conditions of sale unless otherwise agreed in writing. Phone : (1) 973 777 6900 www.comus-intl.com Fax: (1) 973 777 8405 2006 Copyright Comus International Ltd, 454 Allwood Road, Clifton, New Jersey, 07012, USA.X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for Magnetic/Reed Switches category: Click to view products by Comus manufacturer: Other Similar products are found below : 59200-020 MDSR-4-12-23 MMRB20006 PSW-21 AMS-17-B AMS-20MG AMS-37-G W/Brk AMS-38S-I AMS-38SW AMS-39B-B AMS-39B-W HRB10030 2116900170 AMS-10S-B AMS-25B-B AMS-37BROWN AMS-37GRAY AMS-38MG AMS-38SB AMS-9-B AMS-T10C(B) 4350238 505-171W WHITE 505-211B 505-391G 505-5114W WHITE 505-70B 507-382B BMC-33B HM00-01800 4350186 4360013 505-101-GC 505-101-GS 505-101WC 505-101-WS 505-172W 505-201W 505-392W 505-90G 505-90I 507-381BB RSW-21A-I ODC-56B FF6-21-DC-03-SS FF6-11-AC-06 FF6-21-AC-06 DRR-129(42-48) ODC-56A AMS-10MGW
