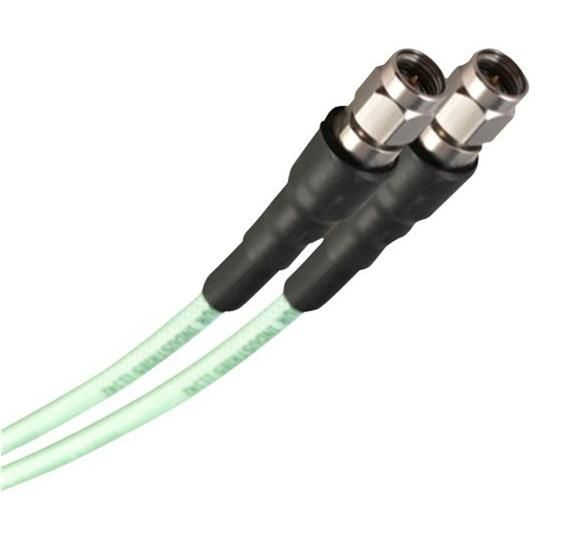

TSX74-S1S1-1M0 CONDUCTRF

This document is the property of Conduct RF. The information contained herein is not to be disclosed or copied in whole or in part without the written consent of Conduct RF. Notes: 1. Only RoHS Compliant Processes and Materials used for this assembly. 2. Marking to Contain ConductRF, Part No. & Serial No., Black Text. TESTeCON Los Loss 3. Mark BLUE Shrink Tube on both connectors ends with DC-27GHz & Connector Series RF Test Cable 4. Single Centered Marker up to 15(4.5M), Two Markers 12(30cm) from ends for lengths over 15(4.5M) 5. Sweep Tested for DC to 27GHz, Plot Data and Store. 6. Serial No. to be Marked as Cxxxxx, where xxxxx = sequential no. from log. 7. Caps to be Fitted Prior to Packaging 8. Cables to be Coiled and Placed in Anti-Static Bag with ConductRF Label. (See Separate Label Instructions) DC-27 ConductRF DC-27 GHz GHz TSX74-S1S1-XXX SMA SMA S/N-Cxxxxx L ConductRF TSX74-S1S1-XXX Max Insertion Loss(dB) S/N-Cxxxxx L XXX 27GHz 1.213 2ft F02 Marker Example 2.056 4ft F04 2.477 5ft F05 2.898 6ft F06 4.583 10ft F10 Part No. Congurator - XXX 5.426 12ft F12 FXX = Length in Feet (eg F03=3ft) 8.796 20ft F20 SXX = Length in Inches (eg S18=18) XMX = Length in Meters (eg 2M5=2.5m) 1.753 1M 1M0 CXX = Length in CM (eg C50=50cm) 1.40:1 VSWR(max) Customer DWG Title: SMA Male to Male, 27GHz Flexible Test Cable, Low Loss Remarks: Originated: Conduct RF Sheet 1 of 1 Range: TSA74 sales ConductRF.com 01/26/16 Tel: +1 978 374 6840 1 Pre-Release DG 06/23/16 Dwg Ref: TSX74-S1S1 REV. DESCRIPTION ECN DRAWN DATE Tolerances: Checked: JW Approved: PL Rev: 1 Part No: TSX74-S1S1-XXX Length +/-2% REVISION HISTORYX-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for CONDUCTRF manufacturer: Other Similar products are found below : SF18G-N1S1-F05 VNA18-N1N1-S24 VNA40-DNFD1-S24 SF27G-E1EF-1M0 SW50G-C1CF-1M0 TSA74-N1S1-1M0 PFA61-D1D1-1M0 SF27G-EFEF-1M0 PFA61-C1C1-1M0 SF07G-N1D1-F05 SW50G-CFCF-1M0 VNA18-N1NF-S24 SF18G-N1N2-1M0 SF09G-N1N1-F05 TEA90-N1S1-1M0 SF09G-N1NF-F05 TEA90-N1N1-1M0 SF18G-N1NF-1M0 SF18G-N1N1-1M0
