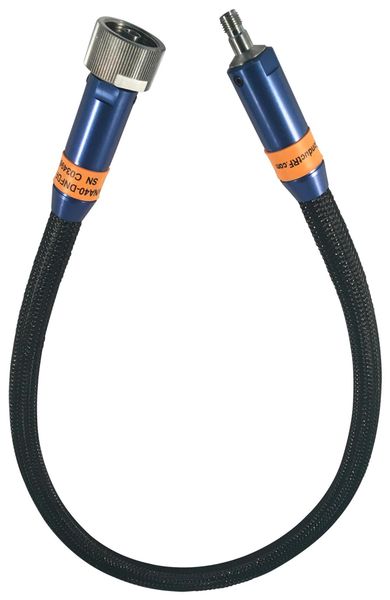

VNA40-DNFDF-S24 CONDUCTRF

This document is the property of Conduct RF. The information contained herein is not to be disclosed or copied in whole or in part without the written consent of Conduct RF. Notes: 1. Only RoHS Compliant Processes and Materials used for this assembly. 2. Marking to Contain www.ConductRF.com, Part No. & Serial No., 3. Marker to be Black Text on ORANGE SHRINK TUBE. 4. Sweep Tested for DC to 27GHz, Plot Data and Store. 5. Serial No. to be Marked as Cxxxxx, where xxxxx = sequential no. from log. 6. Caps to be Fitted Prior to Packaging 7. Cables to be Coiled and Placed in Anti-Static Bag with ConductRF Label. Marking 1: Marking 2: Part Number www.ConductRF.com S/N Reading Direction Reading Direction Length Max Insertion Loss(dB) Length Units XXX 12GHz 18GHz 27GHz 0.806 1.029 1.323 12 in. S12 1.358 1.746 2.263 24 in. S24 1.909 2.463 3.204 36 in. S36 2.461 3.180 4.144 48 in. S48 3.012 3.897 5.085 60 in. S60 Part No. Congurator - XXX Length Units XXX Max Insertion Loss(dB) FXX = Length in Feet (eg F03=3ft) 0.797 1.017 1.307 30 cm C30 SXX = Length in Inches (eg S18=18) 1.159 1.488 1.925 60 cm C60 XMX = Length in Meters (eg 2M5=2.5m) 2.063 2.664 3.467 100 cm 1M0 CXX = Length in CM (eg C50=50cm) 2.968 3.840 5.010 150 cm 1M5 BOM - Ref VNA BOM Model Document 1.20:1 1.35:1 VSWR(max) Customer DWG Title: Armored VNA Cable 27GHz 3.5mm Female to NMD Male Remarks: Originated: Conduct RF Sheet 1 of 1 Range: VNA sales ConductRF.com 06/13/16 Tel: +1 978 374 6840 1 Pre-Release DG 10/20/16 Dwg Ref: VNA26-ENFE1 REV. DESCRIPTION ECN DRAWN DATE Tolerances: Checked:JW Approved: PL Rev: 1 Part No: VNA26-ENFE1-XXX Length +/-2% REVISION HISTORYX-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for CONDUCTRF manufacturer: Other Similar products are found below : SF18G-N1S1-F05 VNA18-N1N1-S24 VNA40-DNFD1-S24 SF27G-E1EF-1M0 SW50G-C1CF-1M0 TSA74-N1S1-1M0 PFA61-D1D1-1M0 SF27G-EFEF-1M0 PFA61-C1C1-1M0 SF07G-N1D1-F05 SW50G-CFCF-1M0 VNA18-N1NF-S24 SF18G-N1N2-1M0 SF09G-N1N1-F05 TEA90-N1S1-1M0 SF09G-N1NF-F05 TEA90-N1N1-1M0 SF18G-N1NF-1M0 SF18G-N1N1-1M0
