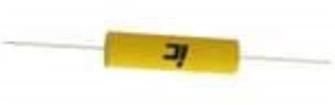

685PHC600K Cornell Dubilier

Metallized Polypropylene - High Capacitance Low ESR FEATURES Switching Power Supplies UPS DC Link Motor Speed Controls APPLICATIONS Solar Heaters Power Converters -40C to +100C Operating Temperature Range Above +85C applied voltage must be de-rated by 1.5%/C +10% at 1 kHz, 25C Capacitance Tolerance +5% optional VDC 250 330 400 600 700 850 Surge Voltage Non-repetitive 400 400 600 800 1000 1200 SVDC VDC 250 330 400 600 700 850 AC voltage VAC 160 220 250 330 400 500 5uF<C<2 Dissipation Factor (MAX) C< 5uF C>75uF 5uF Tan at 1 kHz and 25C .06% .1% .15% Insulation Resistance 30000 MxuF After 1 minute of 100VDC applied Not to exceed 3G between the terminals at 25C Self Inductance <1 nano-Henry per mm of lead spacing Long term stability Capacitance variation <1% MAX after 2 years Terminal to Terminal Terminal to case 160% of VDC VDC applied for 10 Dielectric Strength Seconds and 25C or 3KVAC at 50/60 Hz applied between the terminals and 200% of VDC applied for 2 Seconds case for 60 Seconds and 25C and 25C >100000 with VDC Life Expectancy >30000 with VAC Failure quota 300/billion component hours Test Condition Performance requirements Temperature= +40C +2C Max Capacitance change < 2% of initially measured valued Damp Heat Test Relative Humidity=93 +2% DF Change < 200% of initially specified valued Test length= 56 days Insulation resistance > 50% of minimum specified value Max Capacitance change <1% of initially measured value Resistance to soldering Heat DF Change Solder bath temperature: +260C +/- 5C < .1% at 1kHz Exposure time: 10 seconds +/- 1 second Insulation resistance >50% of minimum specified value Construction Metallized Polypropylene film Electrodes Vacuum deposited Metal layers Coating Flame retardant tape wrap (UL510) with epoxy end fill (UL94V-0) Lead terminations Lead free tinned copper leads Sep-20 High Frequency Metallized PHC Polypropylene Axial Lead Maximum Maximum Typical Typical RMS Ripple RMS Ripple Capacitance dv/dt ESR (m) Dims DxL Capacitance dv/dt ESR (m) Dims DxL WVDC IC PART NUMBER Current (A) WVDC IC PART NUMBER Current (A) (F) (v/ sec.) 100 kHz, (mm) (F) (v/ sec.) 100 kHz, (mm) 100 kHz, 100 kHz, +25C +25C +70C +70C 250 1 105PHC250K 50 4.5 7.6 11x29 330 30 306PHC330KS 20 14 4.5 36x59 250 1.5 155PHC250K 50 5.5 6.1 13x29 330 33 336PHC330KR 25 14 3.9 39.5x55 250 2 205PHC250K 50 6 4.9 14.5x29 330 33 336PHC330KS 20 14 4.3 37.5x59 250 2 205PHC250KG 40 6 5.1 12.5x34 330 35 356PHC330KR 25 14 3.8 41x55 250 2.2 225PHC250KG 50 6.5 5 15x29 330 35 356PHC330KS 20 14 4.2 38.5x59 250 2.2 225PHC250K 40 6 5.7 13x34 330 40 406PHC330KS 20 14 3.9 41x59 250 2.5 255PHC250KG 50 7 4.8 15.5x29 400 0.47 474PHC400K 75 4 8.6 11x29 250 2.5 255PHC250K 40 7 5.4 14x55 400 0.68 684PHC400KG 75 5.5 7.1 13x29 250 3 305PHC250KG 50 7.5 4.4 17x29 400 0.68 684PHC400K 55 5 8.9 12x34 250 3 305PHC250K 40 7 4.8 15x34 400 1 105PHC400KG 75 6.5 5.8 15x29 250 3.3 335PHC250K 40 8 4.4 15.5x34 400 1 105PHC400K 55 6 6.7 13x34 250 4 405PHC250K 40 9 3.8 17x34 400 1.5 155PHC400KG 75 7.5 4.7 17.5x29 250 4.7 475PHC250KJ 40 10 3.5 18x34 400 1.5 155PHC400K 55 7 5.6 15.5x34 250 5 505PHC250K 40 10 3.4 18.5x34 400 2 205PHC400K 55 9 4.6 17.5x34 250 6.8 685PHC250K 40 10.5 3.1 21x34 400 2.2 225PHC400K 55 9 4.4 18.5x34 250 10 106PHC250K 40 10.5 2.5 24x34 400 2.5 255PHC400K 55 9.5 4.2 19x34 250 10 106PHC250KN 25 10.5 3.3 21.5x46 400 3 305PHC400K 55 10.5 3.8 21x34 250 15 156PHC250K 25 14 2.7 25.5x46 400 3.3 335PHC400K 55 10.5 3.7 22x34 250 20 206PHC250K 25 14 5 29x46 400 3.3 335PHC400KN 40 10.5 4.3 19x46 250 22 226PHC250KN 25 14 4.7 30.5x46 400 4 405PHC400KJ 55 10.5 3.3 24x34 250 25 256PHC250K 25 14 4.4 32x46 400 4 405PHC400K 40 10.5 3.8 20.5x46 250 30 306PHC250K 20 14 4.5 31x55 400 4.7 475PHC400K 40 9.5 7.6 22x46 250 30 306PHC250KS 15 14 5.3 29.5x59 400 5 505PHC400K 40 10 7.4 22.5x46 250 33 336PHC250KR 20 14 4.3 32.5x55 400 6.8 685PHC400K 40 11 6.4 26x46 250 33 336PHC250KS 15 14 5 31x59 400 10 106PHC400KN 40 13 5.4 31x46 250 40 406PHC250K 20 14 3.9 36x55 400 10 106PHC400K 30 12 6.3 27x55 250 40 406PHC250KS 15 14 4.5 33.5x59 400 10 106PHC400KS 25 11 7.1 26x59 250 50 506PHC250K 20 14 3.5 40x55 400 15 156PHC400K 30 14 5 33x55 250 50 506PHC250KS 15 14 3.9 37x59 400 15 156PHC400KS 25 14 5.6 31x59 250 60 606PHC250KS 15 14 3.5 40x59 400 20 206PHC400K 30 14 4.3 37x55 330 0.68 684PHC330KG 60 4.5 9.1 11x29 400 20 206PHC400KS 25 14 4.7 35x59 330 1 105PHC330KG 60 5.5 6.9 12.5x29 400 22 226PHC400KR 30 14 4.1 39x55 330 1.5 155PHC330KG 60 6.5 5.5 15x29 400 22 226PHC400KS 25 14 4.5 37x59 330 1.5 155PHC330KJ 45 6 6.3 13.5x34 400 25 256PHC400K 30 14 3.8 41.5x55 330 2 205PHC330KG 60 7.5 4.7 16.5x29 400 25 256PHC400KS 25 14 4.2 39x59 330 2 205PHC330KJ 45 7 5.7 15x34 600 0.33 334PHC600KG 95 4 9.5 12x29 330 2.2 225PHC330KG 60 8 4.3 17.5x29 600 0.47 474PHC600KG 95 5 8.3 13.5x29 330 2.2 225PHC330KJ 45 7.5 5.3 15.5x34 600 0.47 474PHC600K 75 5 9.4 12.5x34 330 2.5 255PHC330KJ 45 8 5 16.5x34 600 0.68 684PHC600KG 95 6 6.8 16x29 330 3 305PHC330KJ 45 9 4.4 18.5x34 600 0.68 684PHC600K 75 6 7.8 14x34 330 3.3 335PHC330KJ 45 9 4.3 19x34 600 1 105PHC600K 75 8 6.1 17.5x34 330 4 405PHC330KJ 45 10.5 3.8 20.5x34 600 1.5 155PHC600K 75 9 4.9 20x34 330 4.7 475PHC330KJ 45 10.5 3.3 22x34 600 2 205PHC600KJ 75 10.5 4.1 23x34 330 4.7 475PHC330KN 30 10.5 4.2 19x46 600 2 205PHC600K 55 10 5.3 20x46 330 5 505PHC330KJ 45 10.5 3.2 22.5x34 600 2.2 225PHC600KJ 75 10.5 3.8 24x34 330 5 505PHC330KN 30 10.5 4.1 19.5x46 600 2.2 225PHC600K 55 10 4.8 21x46 330 6.8 685PHC330KN 30 10.5 3.6 22x46 600 2.5 255PHC600K 55 10.5 4.4 22x46 330 10 106PHC330KN 30 11 6.7 26x46 600 3 305PHC600K 55 10.5 4.2 24x46 330 15 156PHC330KN 30 13 5.4 31x46 600 3.3 335PHC600K 55 10.5 3.8 25x46 330 15 156PHC330KR 25 12.5 6 28x55 600 4 405PHC600K 55 13.5 3.6 27x46 330 15 156PHC330KS 20 12 6.8 26.5x59 600 4.7 475PHC600K 55 12 6.4 29x46 330 20 206PHC330KR 25 14 5.1 31.5x55 600 4.7 475PHC600KR 50 11.5 7.7 26.5x55 330 20 206PHC330KS 20 13.5 5.8 30x59 600 4.7 475PHC600KS 40 11 8.6 24.5x59 330 22 226PHC330KR 25 14 4.8 33x55 600 5 505PHC600KN 55 12.5 6.3 29.5x46 330 22 226PHC330KS 20 14 5.4 31x59 600 5 505PHC600K 50 12 7.4 27x55 330 25 256PHC330KR 25 14 4.5 35x55 600 5 505PHC600KS 40 11.5 8.3 25x59 330 25 256PHC330KS 20 14 5 33x59 600 6.8 685PHC600K 50 12.5 6.5 30x55 330 30 306PHC330KR 25 14 4.1 38x55 600 6.8 685PHC600KS 40 12 7.3 28.5x59
