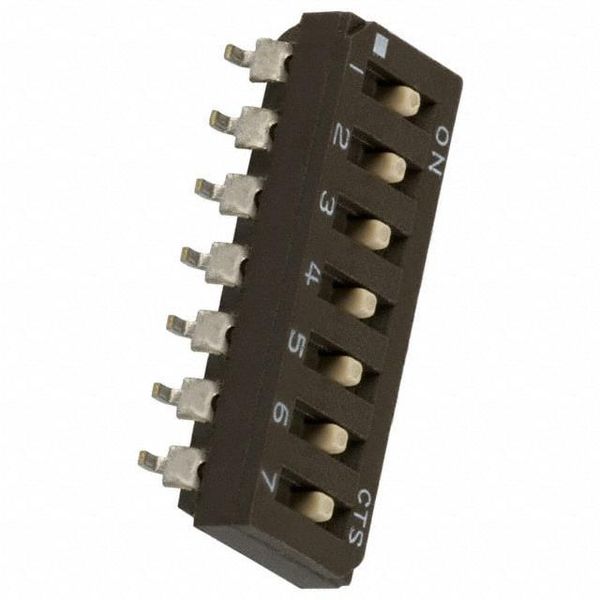

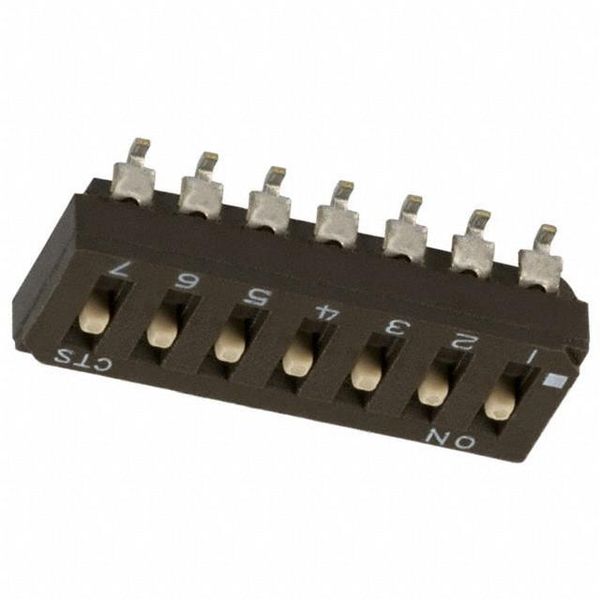

219-7LPSTRF CTS

Series 219 SMD DIP Switch Removable tape seal to withstand IR vapor phase or wave soldering temperatures, and board washing Gull-wing and Jbend terminal configurations Available low profile, medium, and extended height actuators SPST configuration available 0.6mm/.024 actuator travel Optional top tape seal for board spray washing Description Positive detent separated from contactor causes contactor does not deflect during actuation. Unique compact type design allows to be used at small size application. Optional top tape sealed structure is optimized for board washing during soldering process. It makes it the ideal choice for any server, security and HVAC systems. Ordering Information Number of Actuator B Bottom Top Tape Terminal Packaging Actuation Series S Shipping Position Switch Positions H eig h t Seal Seal Type Type Preset 219- 12 LP S T J R F S RRRTTT T T T T 20212124 1 2 1 E E TTT T Code Top tape seal No. of switch T Code positions Blank No top tape seal TSS Code Spec. 2 2 positions Top tape seal (Not Blank Anti-static tube packaging 3 3 positions T available on extended R Tape & reel packaging 4 4 positions actuator 5 5 positions 6 6 positions 7 7 positions Code Spec. Code Spec. 8 8 positions Extended height actuator Blank Gull wing terminal 9 9 positions E (0.6mm/.024) J J ben d terminal 10 10 positions Medium actuator 12 12 positions M (0.25mm/.010) LP L ow pro fil e ( F lush) Code Spec. Blank Ship at ON position F Ship at OFF position Notes: Contact CTS for other common features not listed. 2021-3-12 Rev. C Page 1 of 7 2021 CTS Corporation. Information/product(s) subject to change. No warranty that product(s) will meet the stated specifications for customer specific applications or test equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote. Series 219 SMD DIP Switch Electrical Specifications Parameter Conditions & Remarks Min Max Unit Circuit SPST 2 12 position Initial 25 Contact Resistance milliohms At end of life 50 Insulation Resistance Between insulated terminals 1000 megohms 500 VAC between adjacent Dielectric Strength 1 minute switches 100mA 20 VDC Actuation Life 2,000 cycles 0.1mA 5 VDC (dry circuit) Between adjacent closed Switch Capacitance 5 pF switches 100 mA Nonswitching Rating or or 50 VDC Mechanical and Environmental Soldering Maximum reflow temperature, 250C for 30 seconds MSL Level 1 RoHS Lead-Free. Fully compliant to RoHS Directive 2011/65/EU Per MIL-STD-202F, method 213B, condition A( 50Gs) Shock with no contact inconsistencies greater than 1 microsecond Per MIL-STD-202F, method 204D, condition B ( .06 or 15Gs between 10 HZ to 2K HZ) with Vibration no contact inconsistencies greater than 1 microsecond Coplanarity 0.1mm/.004 maximum Bottom epoxy seal standard Seal Top tape seal optional Marking Special marking available-consult CTS Standard anti-static tube packaging Packaging: Optional tape and reel packaging Operating Temperature -55C to +85C Range Storage Temperature -55C to +85C Range Soldering Profile 2021-3-12 Rev. C Page 2 of 7 2021 CTS Corporation. Information/product(s) subject to change. No warranty that product(s) will meet the stated specifications for customer specific applications or test equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote.
