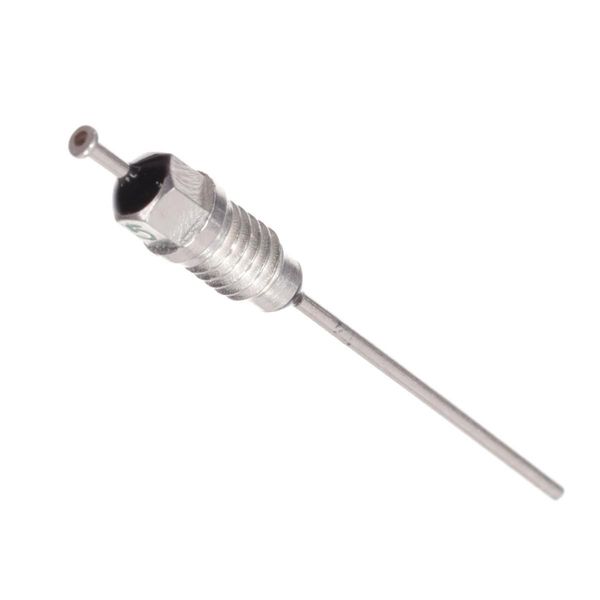

4200-005LF CTS

Images are for reference only
See Product Specifications

Part No.	4200-005LF
Manufacturer:	CTS
Category:	EMI Feedthrough Filters
Description:	EMI Filter 10A 300VDC Wire Lead Panel Mount
Datasheet:	4200-005LF Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 33.8184 ea
Line Total: USD 33.82

Availability - 233
Ship by Mon. 25 Nov to Wed. 27 Nov

MOQ: 1 Multiples: 1
Pack Size: 1

4200-005LF More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

233

Ship by Mon. 25 Nov to Wed. 27 Nov

MOQ : 1
Multiples : 1

1 : USD 33.8184
10 : USD 33.0908
50 : USD 29.7297
250 : USD 28.8634
500 : USD 28.5862
2500 : USD 28.5747

Specifications

Manufacturer
CTS CTS

Product Category
EMI Feedthrough Filters EMI Feedthrough Filters

RoHS - XON
E E

Product
Emi Filters Emi Filters

Capacitance
3000 pF 3000 pF

Voltage Rating
300 V 300 V

Maximum DC Current
10 A 10 A

Circuit Type
Pi Filter Pi Filter

Dimensions
3.96 Mm Dia. X 1.24 In L X 0.35 In H 3.96 Mm Dia. X 1.24 In L X 0.35 In H

Packaging
Tray Tray

Series
4200 4200

Thread Size
6-40 UNF-2A 6-40 UNF-2A

Brand
CTS CTS

Case Diameter
3.96 mm 3.96 mm

Case Height
0.35 in 0.35 in

Case Length
1.24 in 1.24 in

Cnhts
8548900000 8548900000

Hts Code
8548900100 8548900100

Product Type
Emi Filters Emi Filters

Factory Pack Quantity :
50 50

Subcategory
Filters Filters

Taric
8548909099 8548909099
