TD-1101SR-5.0H-160 DEALON

Name: TD-1101SR-5.0H-160
Brand: DEALON
SKU: TD1101SR50H160_DEALON
Availability: InStock
Rating: 5 (11 reviews)

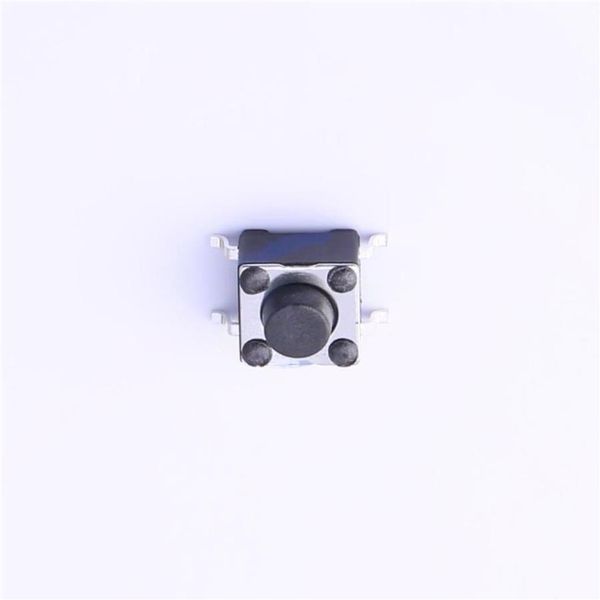

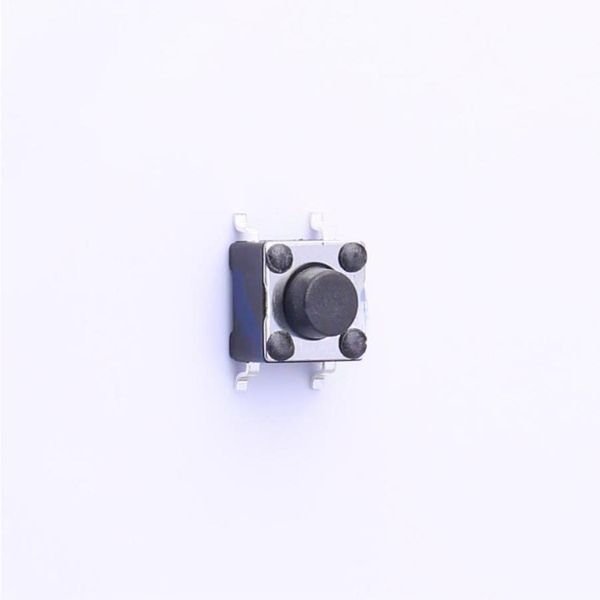

TD-1101SR-5.0H-160 electronic component of DEALON

Images are for reference only
See Product Specifications

Part No.	TD-1101SR-5.0H-160
Manufacturer:	DEALON
Category:	Tactile Switches
Description:	NO 6mm Gull Wing 5mm Black 50mA Round Button Brick nogging SPST 6mm 12V 160gf@±50gf SMD Tactile Switches ROHS
Datasheet:	TD-1101SR-5.0H-160 Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

20: USD 0.0321 ea
Line Total: USD 0.64

Availability - 1067
Ship by Fri. 24 Jan to Wed. 29 Jan

MOQ: 20 Multiples: 20
Pack Size: 20

TD-1101SR-5.0H-160 More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

1067

Ship by Fri. 24 Jan to Wed. 29 Jan

MOQ : 20
Multiples : 20

20 : USD 0.0321
200 : USD 0.0258
1000 : USD 0.0219
2000 : USD 0.0197
10000 : USD 0.0179
20000 : USD 0.0169

Specifications

Manufacturer

DEALON DEALON

Product Category

Tactile Switches Tactile Switches

Operating Force

160gf@ ± 50gf 160gf@ ± 50gf

Voltage Rating DC

12 V 12 V

Mounting Style

Brick nogging Brick nogging

Category

Tactile Switches Tactile Switches

Rohs

y y

Strike Gundam

NO NO

Switch Width

6 mm 6 mm

Pin Style

Gull Wing Gull Wing

Switch Height

5 mm 5 mm

Actuator/Cap Color

Black Black

Contact Current

50 mA 50 mA

Actuator Style

Round Button Round Button

Circuit

SPST SPST

Switch Length

6 mm 6 mm
