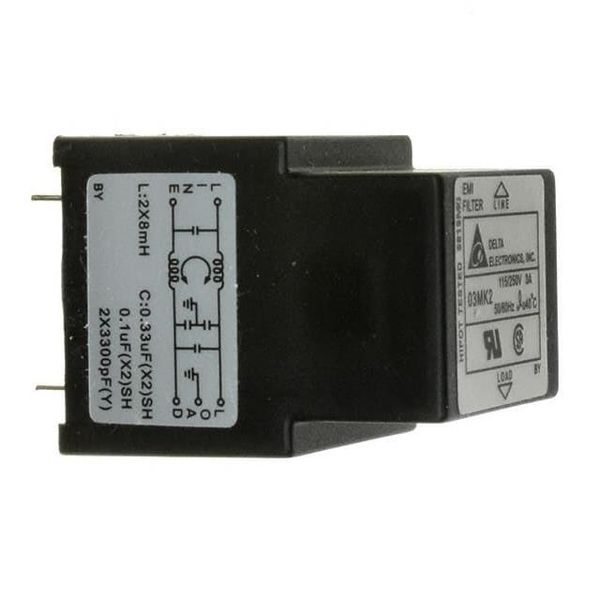

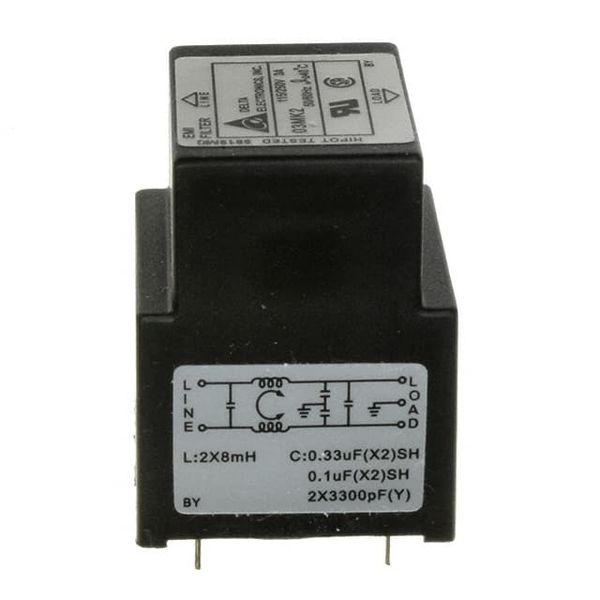

DELTA PARTS NUMBERING SYSTEM MODELS OTHER THAN POWER ENTRY MODULE TYPES AND P.C. BOARD MOUNTING TYPES 03 GE E G3 V -R Option resistor Design sequence: (for cylinder types, the 8th digit designates the outside diameter S- 38mm M- 43mm L- 50mm) Input/Output connection: G = lugs W = PVC wires S = screws G5 = 5 lugs (6.3*0.8mm) W5 = 5 wires (UL 1015 AWG 18, 4 long) Case style: A- Small mounting ears 90 degrees from terminal sides B- Triangle mounting ears 90 degrees from terminal sides C- Triangle mounting ears on terminal sides D- IEC connector with mounting screws E- IEC connector package F- Cylinder types G- Two-hole mounting bars, 90 degrees from terminal sides N- IEC connector with snap-in type Series: Electrical circuit, see specific catalog pages Current rating: AC rms e.g.: 03 amp POWER ENTRY MODULE TYPES 06 AR 2 D Special design: A- with ground choke D- with double pole power switch for models AB, AK, AR series Module construction: 1- IEC connector & fuse holder 2- IEC connector, fuse holder and power switch 3- IEC connector, fuse holder, power switch and voltage selector switch 4- IEC connector, fuse holder & voltage selector switch 5- For models other than CK, CR series same construction as 4 but with voltage selector switch at front panel Series: Electric circuit, see specific catalog pages PCB MOUNTING TYPES 03 ME 3 A -R Current rating: AC rms Option resistor e.g.: 06 amp Special design: A: with ground choke Design sequence Series: Electrical circuit, see specific catalog page Current rating: AC rms e.g. : 03 amp 1-6DELTA PARTS NUMBERING SYSTEM 3-Phase Types 10 TD S6 D Special Design: Dual: diff. and common choke Input/Output connection : G = lugs W = PVC wires S = screws T = terminal blocks e.g. G6 = 6 lugs W6 = 6 wires T2: 2 terminal blocks TIW4: 1 terminal block / 4 wires Series: TD: used in system TDH: used in system TDR: used in system, vertical style TDV: used in system, vertical style TDS: used in system, screw style TY: used in both & y system TYS: used in & y system, screw style TYT: used in & y system terminal block style PT: P.C.B. Filter PY: P.C.B. Filter Current rating: AC rms e.g.: 10 amp 1-7
