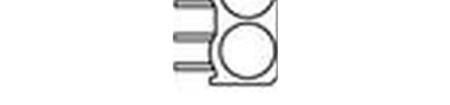

5mm LED CBI Circuit Board Indicator Sloped Back Housing with Standoffs 550-xx07 6.10 PART NO. COLOR A .240 GENERAL PURPOSE 6.10 550-0207 Green 4.83 .240 .190 3.0 550-0307 Yellow .118 550-0407 Red CATHODE 3.68 Red Cathode for .145 B Red/Green Bi-Color INTEGRAL RESISTOR Yellow Cathode for Yellow/Green Bi-Color 5.21 2.54 550-0507 Red, 5V .205 .100 9.02 .355 550-0707 Green, 5V RECOMMENDED 2.54 550-0807 Yellow, 5V P.C. HOLE PATTERN .100 Dimension A: 3.43 .135 for -0207 to -0407, 5.0 .197 for all others LOW CURRENT Dimension B: .635 .025 for -0507 to -0707, .508 .020 for all others Hole Diameter: 1.22 .048 for .635 .025 leads, 1.02 .040 for all others 550-1107 Red Dimensions in mm inches 550-1207 Yellow Standard Polarity shown in drawing: Cathode right 550-1307 Green HIGH EFFICIENCY Features 550-2207 Green 550-2307 Yellow Multiple CBIs form horizontal LED arrays on 6.35mm 550-2407 Red (0.250) center-lines. 550-2507 Orange High Contrast, UL 94 V-0 rated, black housing Oxygen index: 32% BI-COLOR Polymer content: PBT, 0.206 g 550-3007 Red/Green Housing stand-offs facilitate PCB cleaning NEW 550-3107 Yellow/Green Solderability per MIL-STD-202F, method 208F SUPER BRIGHT, DIFFUSED LEDs are safe for direct viewing per IEC 825-1, EN-60825-1 550-5107 Red Compatible with: 550-5207 Green 6 550-xx07 Dual Block 550-5307 Yellow 550-xx07-004 Quad Block SUPER BRIGHT, WATER CLEAR (Non-tinted, Non-diffused) Custom 550-5507 Red For custom LEDs contact factory. 550-5607 Green 550-5707 Yellow Tolerance note: As noted, otherwise: LED Protrusion: 0.04 mm 0.016 CBI Housing: 0.02mm 0.008 To order any of the 550-xx07 part numbers with Reverse Polarity (Cathode Left), please add -010 to the part numbers shown above. PART NUMBER ORDERING CODE 5 5 0 x x 0 7 0 1 0 Series LED Type Reverse Polarity Option 1) Cathode Left 010 Ordering Code Suffix required ONLY for Reverse Polarity Option Dialight Corporation 1501 Route 34 South Farmingdale, NJ 07727 TEL: (732) 919-3119 FAX: (732) 751-5778 www.dialight.co m 6-13550-xx07 Typical Operating Characteristics See LED data sheet for additional information (T =25C) A See page 6-55 and 6-56 for Reference Only LED Drive Circuit Examples. See page 6-57 for Pin Out GENERAL PURPOSE Peak I V Test Viewing LED V F Part Number Color Wavelength nm mcd Volts Current (mA) Angle 2 Data sheet Page 550-0207 Green 565 12.3 2.1 20 60 5ND-9674 6-51 550-0307 Yellow 585 12.3 2.1 20 60 5ND-9673 6-51 550-0407 Red 635 12.3 2 20 60 5ND-9672 6-51 INTEGRAL RESISTOR Peak I Test Forward Viewing LED V Part Number Color Wavelength nm mcd Voltage Current (mA) Angle 2 Data sheet Page 550-0507 Red 655 2 5 13 60 5RD-9422 6-52 550-0707 Green 565 8 5 12 60 5RD-9423 6-52 550-0807 Yellow 583 8 5 10 60 521-9284 6-41 LOW CURRENT Peak I V Test Viewing LED V F Part Number Color Wavelength nm mcd Volts Current (mA) Angle 2 Data sheet Page 550-1107 Red 635 2 1.8 2 50 521-9320 6-42 550-1207 Yellow 583 1.8 1.9 2 50 521-9321 6-42 550-1307 Green 565 1.8 1.8 2 50 521-9327 6-42 HIGH EFFICIENCY Peak I V Test Viewing LED V F Part Number Color Wavelength nm mcd Volts Current (mA) Angle 2 Data sheet Page 550-2207 Green 563 10 2.1 10 65 5HD-9270-5 6-49 550-2307 Yellow 585 6.3 2.1 10 50 5HD-9271-5 6-49 550-2407 Red 650 7 2.2 10 50 5HD-9269 6-49 550-2507 Orange 600 7 1.9 10 60 521-9704 6-43 BI-COLOR Peak I V Test Viewing LED V F Part Number Color Wavelength nm mcd Volts Current (mA) Angle 2 Data sheet Page 550-3007 Red/Green 660/565 90/40 1.8/2.1 20 60 521-9651 6-46 550-3107 Yellow/Green 585/565 8.7/8.7 2.1/2.1 20 50 521-9724 6-46 SUPER BRIGHT, DIFFUSED Peak I V Test Viewing LED V F Part Number Color Wavelength nm mcd Volts Current (mA) Angle 2 Data sheet Page 550-5107 Red 650 34 2.1 20 50 5SD-9441 6-53 550-5207 Green 563 34 2.2 20 50 5SD-9456 6-53 550-5307 Yellow 585 34 2.2 20 50 5SD-9455 6-53 SUPER BRIGHT, WATER CLEAR (NON-TINTED, NON-DIFFUSED) Peak IV VF Test Viewing LED Part Number Color Wavelength nm mcd Volts Current (mA) Angle 2 Data sheet Page 550-5507 Red 635 125 2.2 20 24 521-9464 6-47 550-5607 Green 565 120 2.3 20 24 521-9465 6-47 550-5707 Yellow 583 140 2.2 20 24 521-9466 6-47 Dialight Corporation 1501 Route 34 South Farmingdale, NJ 07727 TEL: (732) 919-3119 FAX: (732) 751-5778 www.dialight.co m 6-14
