3mm

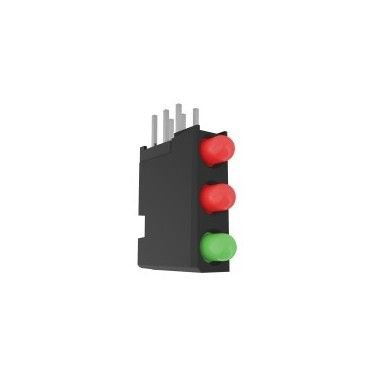

LED CBI Circuit Board Indicator
Tri-Level
564-0x00-xxx
PART NO. COLOR*
CATHODE ID
4.32 A
[.170]
11.56
HIGH EFFICIENCY - LED TYPE 01
MAX
[.455]
REF
564-0100-111 Red-Red-Red
POS.1
5.08 564-0100-132 Red-Yellow-Green
[.200]
POS.2
564-0100-222 Green-Green-Green
15.24
[.600]
5.08
[.200] 564-0100-777 Orange-Orange-Orange
POS.3
2.54 NEW
564-0100-999 Blue-Blue-Blue
[.100]
3.68
[.145]
.010
LOW CURRENT - LED TYPE 02
5.08 4.45[.175] .010
[.200]
( TYP ) RED CATHODE LEAD
2.54 [.100] .010
YEL CATHODE LEAD
564-0200-111 Red-Red-Red
TOP LED
(BI-COLOR LEDs)
5.08 [.200] .010
2.54 [.100] .010
564-0200-132 Red-Yellow-Green
1.09 [.043] 2.54
[.100] .002 564-0200-222 Green-Green-Green
.002 ( 6X )
INTEGRAL RESISTOR, 5 VOLTS - LED TYPE 03
Dimension A:
Red/Green Bi-color 2.76 [.109 .015] all other colors 2.67 [.103 +- .015] 564-0300-111 Red-Red-Red
2.54
564-0300-132 Red-Yellow-Green
[.100]
.002
2.54 4
564-0300-222 Green-Green-Green
[.100]
.002
Dimensions in mm [inches]
BI-COLOR - LED TYPE 07
Features
564-0700-111 Red/Green-Red/Green-Red/Green
564-0700-444 Yellow/Green-Yellow/Green-
Multiple CBIs form horizontal LED arrays on 4.45mm
Yellow/Green
(0.175) center-lines.
High Contrast, UL 94 V-0 rated, black housing
* Top-Middle-Bottom LED
Oxygen index: 29%
Polymer content: PBT, 0.078 g
Housing stand-offs facilitate PCB cleaning
Solderability per MIL-STD-202F, method 208F
LEDs are safe for direct viewing per IEC 825-1,
EN-60825-1
Tolerance note: As noted, otherwise:
LED Protrusion: 0.04 mm [0.016]
CBI Housing: 0.02mm[0.008]
Custom Combinations
Contact factory for information on custom
color combinations
ATTENTION
PART NUMBER ORDERING CODE
OBSERVE PRECAUTIONS
LED Type
Series FOR HANDLING
Top LED Position
ELECTROSTATIC
SENSITIVE
5 6 4 - 0 x 0 0 - x x x
DEVICES
Middle LED Position Bottom LED
Position
Color = 0) Blank 1) Red or Red/Green Bi-color 2) Green 3) Yellow
4) Yellow/Green Bi-color 7) Orange 8) Blue
Dialight Corporation 1501 Route 34 South Farmingdale, NJ 07727 TEL: (732) 919-3119 FAX: (732) 751-5778 www.dialight.co m
4-43564-0x00-xxx
Typical Operating Characteristics (T =25C) See LED data sheet for additional information
A
See Pages 4-73 and 4-74 for LED Drive Circuit Examples
See Page 4-72 for Pin Out
HIGH EFFICIENCY
Peak I V Test Viewing LED
V F
Part Number Color Wavelength nm mcd Volts Current (mA) Angle 2 Data sheet Page #
Red 635 10 2* 10 60 521-9216 4-58
Green 565 12.6 2.1* 10 60 521-9210 4-58
564-0100-xxx
Yellow 585 10 2.1* 10 60 521-9211 4-58
Orange 600 7 2.2 10 60 521-9498 4-58
Blue 428 12 3.5 10 70 521-9831 4-57
* I = 20mA
F
LOW CURRENT
Peak I V Test Viewing LED
V F
Part Number Color Wavelength nm mcd Volts Current (mA) Angle 2 Data sheet Page #
Red 635 1.6 1.7 2 60 521-9324 4-60
564-0200-xxx Green 565 1.6 1.9 2 60 521-9326 4-60
Yellow 585 1.6 1.8 2 60 521-9325 4-60
INTEGRAL RESISTOR, 5 VOLTS
Peak I Test Forward Viewing LED
V
Part Number Color Wavelength nm mcd Voltage Current (mA) Angle 2 Data sheet Page #
Red 635 29 5 10 60 521-9215 4-59
564-0300-xxx Green 565 19 5 10 60 521-9323 4-59
Yellow 585 12.6 5 10 60 521-9322 4-59
BI-COLOR
Peak I V Test Viewing LED
V F
Part Number Color Wavelength nm mcd Volts Current (mA) Angle 2 Data sheet Page #
564-0700-111 Red/Green 635/565 4.7/10 2/2.1 10 50 521-9459 4-63
564-0700-444 Yellow/Green 585/565 4.3/6.3 2.1*/2.1* 10 80 521-9478 4-62
* I = 20mA
F
