FEATURES / BENEFITS
585 Series High brightness with low current draw - uses up to
90% less energy than an incandescent
CLUSTER BASED LED
Long life - up to 100K hours
T3 1/4 Miniature Bayonet (BA9s)
True non-polarized configurations available
No heat generated
Mounts directly into industry standard socket
Resistant to shock and vibration
Super bright LED cluster design
Available in 6, 14, and 28 VDC, 120 VAC
Dialight's line of based LED lamps is designed to directly
replace many popular subminiature and miniature incandescent
lamps. The benefits of LED technology over incandescent are
significant: They offer long life, are shock resistant, withstand
vibration and provide energy conservation.
SPECIFICATIONS
Operating Voltages: 6,14, 28 VDC, 120 VAC
1.09
[27.70]
Polarized and non-polarized available
o o
Operating temperature: -30 C to +85 C
CENTER
CONTACT (+)
o o
.430
Storage temperature: -40 C to +100 C
[10.92]
Replaces incandescent lamp numbers*: 44,
47, 313, 755,1815, 1819, 1847, 1850, 1866,
1889,1891, 1892, 1893 and 1895
Measurements are typical
* See Dialights Incandescent lamp/based LED
Dimensions are inches [mm] cross reference for a complete listing
CONSIDERATIONS
Since lens caps act as filters for the light emitted from the based LED, it is important to match the emitting color of the LED.
If not matched properly, the overall light output may be substantially reduced. Dialight recommends using transparent lenses,
which will optimize the light output.
If you are unfamiliar with the polarity of the circuit, Dialight recommends using a non-polarized version.
Although these lamps can be operated at a lower voltage, which will increase the life, the intensity will be reduced.
Operation of the based LED at a higher voltage should not exceed 10% above the recommended voltage.
Dialight does not recommend that based LED lamps be used in neon sockets.
Dialight reserves the right to make changes at any time
in order to supply the best product possible. Dialight Corporation
1501 Route 34 South Farmingdale, NJ 07727 USA
Tel: (1) 732-919-3119 Fax: (1) 732-751-5778 www.dialight.com
MDEL585E001_D585 Series
CLUSTER BASED LED
T3 1/4 Miniature Bayonet (BA9s)
POLARIZED
Peak Forward
Part Number Color Wavelength Nominal Voltage Current Intensity
(nm) (VDC) TYP.-(mA) TYP.-(mcd)
585-5211 Red 660 6 60 480
585-5311 Green 565 6 60 420
585-5511 Yellow 592 6 90 1800
585-5213 Red 660 14 40 480
585-5313 Green 565 14 40 420
585-5513 Yellow 592 14 60 1800
585-5215 Red 660 28 20 560
585-5315 Green 565 28 20 490
585-5515 Yellow 592 28 30 2100
NON-POLARIZED
Peak Forward
Part Number Color Wavelength Nominal Voltage Current Intensity
(nm) (VDC) TYP.-(mA) TYP.-(mcd)
585-5223 Red 660 14 40 480
585-5323 Green 565 14 40 420
585-5523 Yellow 592 14 60 1800
585-5225 Red 660 28 20 560
585-5325 Green 565 28 20 490

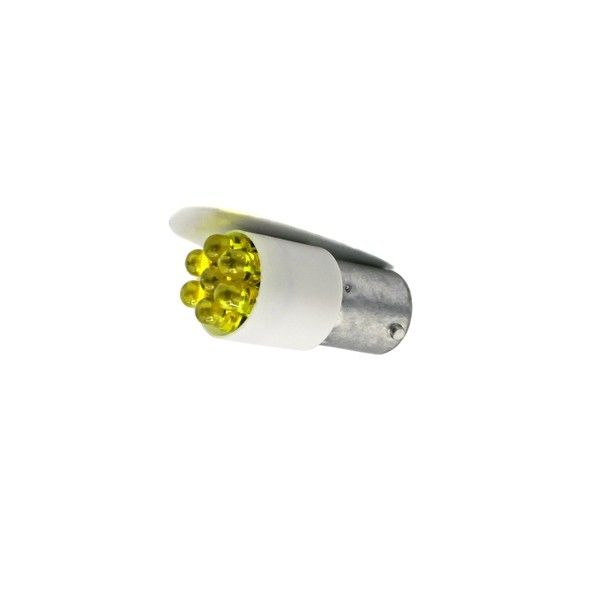

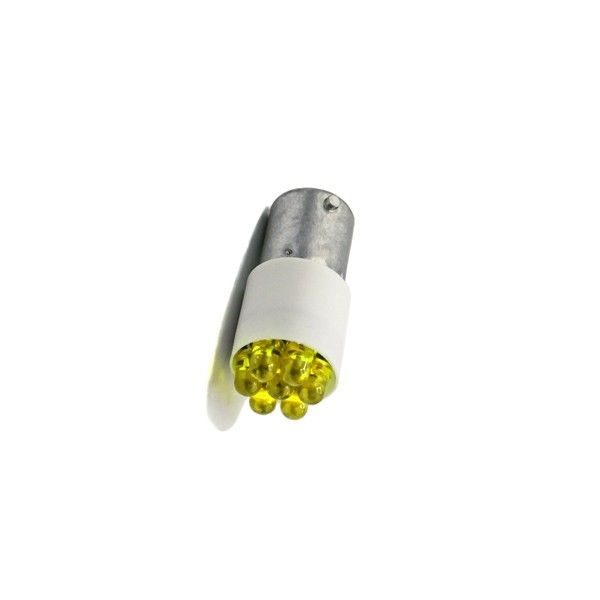

585-5525 Yellow 592 28 30 2100
585-5256 Red 660 120 VAC 9 252
585-5356 Green 565 120 VAC 9 220
585-5556 Yellow 592 120 VAC 9 945
Based LEDsSELECTION
With the technological advancements in Light Emitting Diodes (LEDs) brightness can now rival the incandescent lamp when used
in similar packages. These advancements have created a new type of product called the based LED - an LED with the functionality
of an incandescent bulb.
The following styles are currently available in red, green, yellow, blue and white:
T1 3/4 Midget Flange T1 3/4 Bi-Pin T1 3/4 Wedge (T5) T2 Telephone Slide
T3 1/4 Miniature Bayonet (BA9S) T3 1/4 Miniature Screw (E10) T3 1/4 Wedge (T10) 15mm SC Bayonet (BA15s)
Dialights line of based LEDs continues to grow. Please visit our website for more information.
www.dialight.com
Dialight reserves the right to make changes at any time
in order to supply the best product possible.
Dialight Corporation
1501 Route 34 South Farmingdale, NJ 07727 USA
Tel: (1) 732-919-3119 Fax: (1) 732-751-5778 www.dialight.com
MDEL585E001_D
