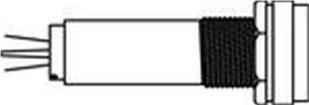

610 Series 10 mm Panel Mount Indicators Certicfi ations & Ratings RoHS compliant Application The 610 Series LED Panel Mount Indicators are designed for a variety of applications such as: Main power indication Remote power indication Status indication Maintenance and warning indication Instrumentation . and many more Dimensions inches mm Round Mechanical Information Mounting Hole Size: 0.413 (10.5 mm) .590 15.0 M10 P=1.0 Anode (Dot) Max Panel Thickness: 0.236 (6.0 mm) Mounting Torque: 0.217 lbs/ft (3 kg/cm) Specifications Voltage Options: 6 V DC (no resistor required) .394 10.0 .472 12.0 1.18 30 Operating Temp: -25 C to +85 C (-13 F to +185 F) .079 2.0 1.54 39 Storage Temp: -40 C to +100 C (-40 F to +212 F) 0.12 3.0 Electrical Connection: Solder terminals Square .590 15.0 Housing: Polycarbonate M10 P=1.0 Anode (Dot) Terminals: CopperNickel Plated Lock Washer: IronNickel Plated Nut: BrassNickel Plated .394 10.0 1.18 30 .472 12.0 .079 2.0 1.54 39 0.12 3.0 Ordering Information 610 Series Voltage Current Intensity Typ. Part Number Color LED Shape (V DC) (mA) (mcd) 610-3132-120F 75 Red 610 Series drawn from mfr 610-3232-120F 110 specsRound Green scale 1:3 Dialight reserves the right to make changes at any 610-3332-120F 60 Yellow time in order to supply the best product possible. 6 15 The most current version of this document will always be 610-4132-120F 75 Red available at: www.dialightsignalsandcomponents.com Warranty Statement: Except for the warranty expressly 610-4232-120F 110 Square Green provided for herein/above/below , Dialight disclaims any and all other warranties, express or implied, including, without limitation, any warranties of merchantability, 610-4332-120F 60 Yellow fitness for a particular purpose, title, and noninfringement. www.dialightsignalsandcomponents.com Dialight PMI data 610 Sep2019 610 Series drawn from mfr specs scale 1:3X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for LED Panel Mount Indicators category: Click to view products by Dialight manufacturer: Other Similar products are found below : 607-3232-140F 821-0331-503 FL2870C8R FL2950WL7B FL2950WL8G FL589WL8R FL67C8R H8630FBBA3 NL177WL2A NL177WL3G NL276C2A NL2950BWL3G NL589WL2R NL67C2C NL67C3R C480AABG3 L32R-R2-2311 L3353-MWRG L39UR-R24- 2111 L58D-G2-W L58D-Y2-W L59D-R12-W L59UD-R12-W L625DG L625DR LE177WL39007 LE2950BWL39018 LH1048BSWL3702 LH1048BWL3702 LH382A LH677G LHM628A FL276WL7R FL2950BWL7R FL2950WL7R FL2950WL8R FL2950WL8R-12 FL2951WL8G FL2951WL8R FL589C7R FL67WL8G MPC5BCW18.0 556-1605-808F 556-1705-809F 556-3008-839F 558-0201-818F 559-0001-813F 559-1301-801F 559-3501-804F VL1CK0P600
