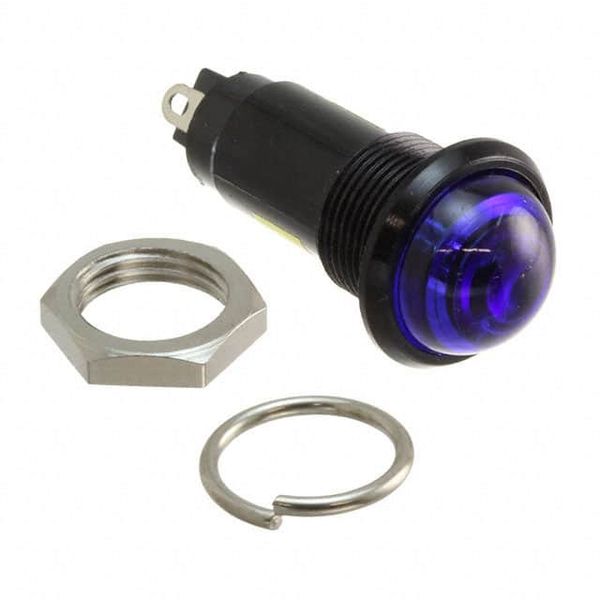

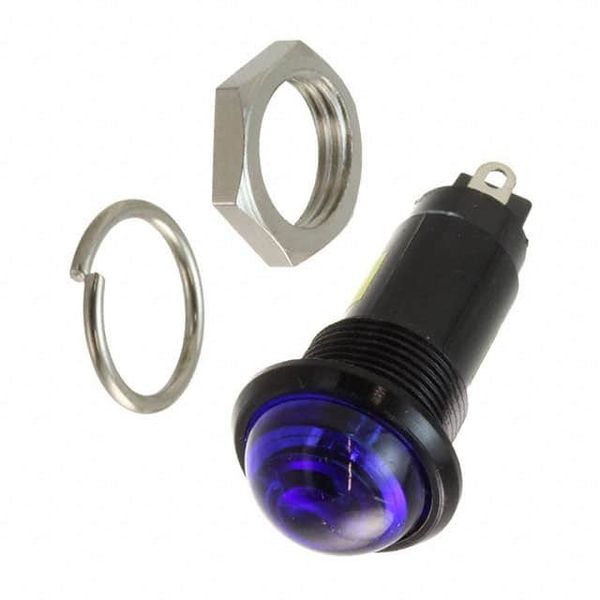

686 Series 16 mm High Intensity Panel Mount Indicators Certicfi ations & Ratings RoHS compliant Application The 686 Series LED Panel Mount Indicators are designed for a variety of applications such as: Main power indication Remote power indication Status indication Maintenance and warning indication Instrumentation . and many more Dimensions inches mm Mechanical Information M16 P=1.0 Mounting Hole Size: 0.650 (16.5 mm) Anode (Dot) Max Panel Thickness: 0.236 (6.0 mm) .709 18.0 Mounting Torque: 0.217 lbs/ft (3 kg/cm) Specifications .867 22.0 Voltage Options: 6, 12 & 24 V DC (no resistor required) Operating Temp: -20 C to +75 C (-4 F to +167 F) Storage Temp: -40 C to +100 C (-40 F to +212 F) .276 .433 11.0 7.0 Electrical Connection: Solder terminals 1.043 26.5 .098 2.5 Housing: Polycarbonate 1.575 40.0 Terminals: CopperNickel Plated 616/686 Series Lock Washer: IronNickel Plated drawn from mfr specs Ordering Information 686 Series scale 1:3 Nut: BrassNickel Plated Voltage Current Intensity Typ. Part Number Color (V DC) (mA) (mcd) 686-1132-121F 660 Red 686-1232-122F Green 8150 6 686-1332-123F Orange 500 686-1432-124F 240 Blue 686-1132-131F 660 Red 686-1232-132F 8150 Green 12 15 686-1332-133F 500 Orange 686-1432-134F Blue 240 686-1132-141F Red 660 Dialight reserves the right to make changes at any time in order to supply the best product 686-1232-142F 8150 Green possible. The most current version of this document will always be available at: 24 www.dialightsignalsandcomponents.com 686-1332-143F 500 Orange Warranty Statement: Except for the warranty expressly provided for herein/above/below , Dialight disclaims any and all other warranties, express or implied, including, without limitation, 686-1432-144F 240 Blue any warranties of merchantability, fitness for a particular purpose, title, and noninfringement. www.dialightsignalsandcomponents.com Dialight PMI data 686 Feb2018X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for LED Panel Mount Indicators category: Click to view products by Dialight manufacturer: Other Similar products are found below : 607-3232-140F 821-0331-503 FL2870C8R FL2950WL7B FL2950WL8G FL589WL8R FL67C8R H8630FBBA3 NL177WL2A NL177WL3G NL276C2A NL2950BWL3G NL589WL2R NL67C2C NL67C3R C480AABG3 L32R-R2-2311 L3353-MWRG L39UR-R24- 2111 L58D-G2-W L58D-Y2-W L59D-R12-W L59UD-R12-W L625DG L625DR LE177WL39007 LE2950BWL39018 LH1048BSWL3702 LH1048BWL3702 LH382A LH677G LHM628A FL276WL7R FL2950BWL7R FL2950WL7R FL2950WL8R FL2950WL8R-12 FL2951WL8G FL2951WL8R FL589C7R FL67WL8G MPC5BCW18.0 556-1605-808F 556-1705-809F 556-3008-839F 558-0201-818F 559-0001-813F 559-1301-801F 559-3501-804F VL1CK0P600
