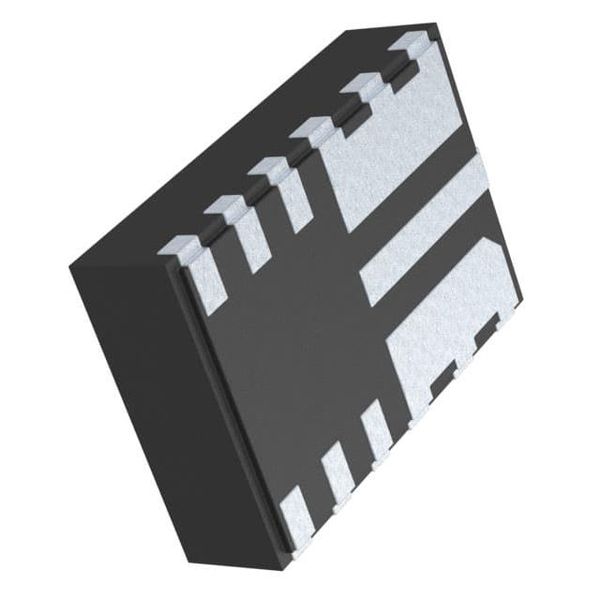

AP63356/AP63357 3.8V TO 32V INPUT, 3.5A LOW IQ SYNCHRONOUS BUCK WITH ENHANCED EMI REDUCTION Description Pin Assignments Top View The AP63356/AP63357 is a 3.5A, synchronous buck converter with a wide input voltage range of 3.8V to 32V. The device fully integrates a SW 74m high -side power MOSF E T and a 40m low -side power MOSFET to provide high-efficiency step-down DC-DC conversion. The AP63356/AP63357 device is easily used by minimizing the 9 VIN 1 8 GND external component count due to its adoption of peak current mode control along with its integrated loop compensation network. The AP63356/AP63357 design is optimized for Electromagnetic Interference (EMI) reduction. The device has a proprietary gate driver EN 2 7 NC scheme to resist switching node ringing without sacrificing MOSFET turn-on and turn-off times, which reduces high-frequency radiated EMI FB 3 6 BST noise caused by MOSFET switching. AP63356/AP63357 also features Frequency Spread Spectrum (FSS) with a switching frequency jitter of COMP 4 5 PG 6%, which reduces EMI by not allowing emitted energy to stay in any one frequency for a significant period of time. V-DFN3020-13 The device is available in a 3mm 2mm V-DFN3020-13 package. (Type A) Features Applications VIN 3.8V to 32V 5V, 12V, and 24V Distributed Power Bus Supplies 3.5A Continuous Output Current Flat Screen TV Sets and Monitors 0.8V 1% Reference Voltage Power Tools and Laser Printers 22A Low Quiescent Current (Pulse Frequency Modulation) White Goods and Small Home Appliances 450kHz Switching Frequency FPGA, DSP, and ASIC Supplies Pulse Width Modulation (PWM) Regardless of Output Load Home Audio o AP63356 Network Systems Supports Pulse Frequency Modulation (PFM) Gaming Consoles o AP63357 Consumer Electronics o Up to 86% Efficiency at 5mA Light Load General Purpose Point of Load Proprietary Gate Driver Design for Best EMI Reduction Frequency Spread Spectrum (FSS) to Reduce EMI Low-Dropout (LDO) Mode Power Good Indicator with 5M Internal Pull-up Precision Enable Threshold to Adjust UVLO Protection Circuitry o Undervoltage Lockout (UVLO) o Output Undervoltage Protection (UVP) o Cycle-by-Cycle Peak Current Limit o Thermal Shutdown Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. Green Device (Note 3) Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See AP63356/AP63357 Typical Application Circuit INPUT VIN BST C3 L 100nF 6.8H OUTPUT VOUT EN SW 5V C4 R1 47pF 157k AP63356 C1 C2 FB 10F AP63357 2 x 22F R2 30k PG COMP GND Figure 1. Typical Application Circuit VIN = 12V, VOUT = 5V, L = 6.8 H VIN = 12V, VOUT = 3.3V, L = 4.7 H VIN = 24V, VOUT = 5V, L = 6.8 H VIN = 24V, VOUT = 3.3V, L = 4.7 H 100 90 80 70 60 50 40 30 20 10 0 0.001 0.010 0.100 1.000 10.000 IOUT (A) Figure 2. AP63356 Efficiency vs. Output Current VIN = 12V, VOUT = 5V, L = 6.8 H VIN = 12V, VOUT = 3.3V, L = 4.7 H VIN = 24V, VOUT = 5V, L = 6.8 H VIN = 24V, VOUT = 3.3V, L = 4.7 H 100 90 80 70 60 50 40 30 20 10 0 0.001 0.010 0.100 1.000 10.000 IOUT (A) Figure 3. AP63357 Efficiency vs. Output Current 2 of 29 August 2019 AP63356/AP63357 Diodes Incorporated www.diodes.com Document number: DS41949 Rev. 3 - 2 Efficiency (%) Efficiency (%)
