Preliminary Datasheet
Single/Dual Low Bias Current, Low Voltage, Rail-to-Rail
AZV831/2
Input/Output CMOS Operational Amplifiers MOS Operational
General Description Features
The AZV831/AZV832 is single/dual channels Single Supply Voltage Range: 1.6V to 5.5V
rail-to-rail input and output amplifier, which provides Ultra-low Input Bias Current: 1pA (Typ.)
a wide input common-mode voltage range and output Offset Voltage: 0.5mV (Typ.), 2.5mV (Max.)
voltage swing capability for maximum signal swings Rail-to-Rail Input
in low supply voltage applications. The device is V : 300mV beyond Rails @ V =5V
CM CC
fully specified to operate from 1.6V to 5.0V single Rail-to-Rail Output Swing:
supply, or 0.8V and 2.5V dual supply applications. 10k Load: 4mV from Rail
It features very low supply current dissipation 70A 1k Load: 25mV from Rail
per channel, which is well suitable for today's Supply Current: 70A/Amplifier
low-voltage and/or portable systems. Unity Gain Stable
Gain Bandwidth Product: 1.0MHz
The AZV831/AZV832 features optimal performance Slew Rate: 0.45V/s @ V =5.0V
CC
in very low bias current of 1pA, which enables the IC Operation Ambient Temperature Range: -40C
to be used for integrators, photodiode amplifiers, and to 85C
piezoelectric sensors etc. The device has typical
0.5mV input offset voltage and provides 1MHz
bandwidth.
The AZV831/AZV832 adopts the latest packaging Applications
technology to meet the most demanding
space-constraint applications. The AZV831 is Sensors
available in standard SOT-23-5 and SC-70-5 Photodiode Amplification
packages. The AZV832 is offered in the traditional Battery-Powered Instrumentation
MSOP-8 and SOIC-8 packages. Pulse Blood Oximeter, Glucose Meter

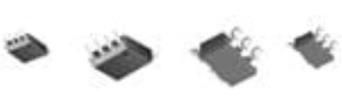

SC-70-5 SOT-23-5 SOIC-8 MSOP-8
Figure 1. Package Types of AZV831/AZV832
Jul. 2012 Rev. 1. 0 BCD Semiconductor Manufacturing Limited
1
Preliminary Datasheet
Single/Dual Low Bias Current, Low Voltage, Rail-to-Rail
AZV831/2
Input/Output CMOS Operational Amplifiers
Pin Configuration
KS/K Package
SC-70-5/SOT-23-5
OUTPUT 1 5 VCC
VEE
2
34
IN+ IN-
AZV831
M/MM Package
(SOIC-8/MSOP-8)
8
OUTPUT 1 1 VCC
2 7
IN 1- OUTPUT 2
3 6
IN 1+ IN 2-
5
4
VEE IN 2+
AZV832
Figure 2. Pin Configuration of AZV831/2 (Top View)
