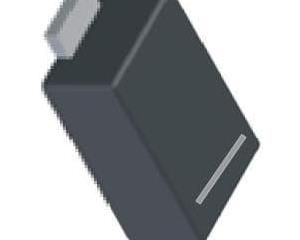

DFLS240Q Green 2.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER PowerDI123 Product Summary Features and Benefits Guard Ring Die Construction for Transient Protection V (V) I (A) V Max (V) I Max (A) RRM O F R High Current Capability Low Leakage Current Patented Interlocking Clip Design for High Surge Current 40 2 0.7 20 Capacity Lead-Free Finish RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. Green Device (Note 3) Qualified to AEC-Q101 Standards for High Reliability PPAP Capable (Note 4) Mechanical Data Applications Case: PowerDI 123 Bridge Diodes Case Material: Molded Plastic, UL Flammability Classification Blocking Diodes Rating 94V-0 Reverse Protection Diodes Moisture Sensitivity: Level 1 per J-STD-020 Polarity Indicator: Cathode Band Terminals: Matte Tin Finish Annealed over Copper Leadframe. Solderable per MIL-STD-202, Method 208 Weight: 0.018 grams (Approximate) PowerDI123 Ordering Information (Note 5) Part Number Compliance Case Packaging DFLS240Q-7 Automotive PowerDI123 3,000/Tape & Reel Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied. 2. See DFLS240Q Maximum Ratings ( T = +25C, unless otherwise specified.) A Single phase, half wave, 60Hz, resistive or inductive load. For capacitance load, derate current by 20%. Characteristic Symbol Value Unit V Peak Repetitive Reverse Voltage RRM Working Peak Reverse Voltage V 40 V RWM DC Blocking Voltage V R RMS Reverse Voltage V 28 V R(RMS) Average Forward Current I 2.0 A F(AV) Non-Repetitive Peak Forward Surge Current 8.3ms I 40 A FSM Single Half Sine-Wave Superimposed on Rated Load Thermal Characteristics Characteristic Symbol Typ Max Unit Thermal Resistance, Junction to Ambient Air (Note 6) R 73 C/W JA Thermal Resistance, Junction to Soldering Point (Note 7) R 13 C/W JS Operating Temperature Range T -65 to +125 C J Storage Temperature Range -65 to +150 C T STG Electrical Characteristics ( T = +25C, unless otherwise specified.) A Characteristic Symbol Min Typ Max Unit Test Condition Reverse Breakdown Voltage (Note 8) 40 V V(BR)R IR = 20A 0.52 0.58 I = 1.0A F Forward Voltage V V F 0.65 0.7 I = 2.0A F 20 A V = 40V, T = +25C R A Leakage Current (Note 8) I R 6.0 mA V = 40V, T = +100C R A Total Capacitance 28 pF C V = 10V, f = 1.0MHz T R 2 Notes: 6. Part mounted on Polymide board with 2 oz., copper, 74mm pad layout. TA = +25C 7. Theoretical R calculated from the top center of the die straight down to the PCB/cathode tab solder junction. JS 8. Short duration pulse test used to minimize self-heating effect. 2 of 5 DFLS240Q May 2016 Diodes Incorporated www.diodes.com Document number: DS38904 Rev. 1 - 2
