DGD2101MS8-13 Diodes Incorporated

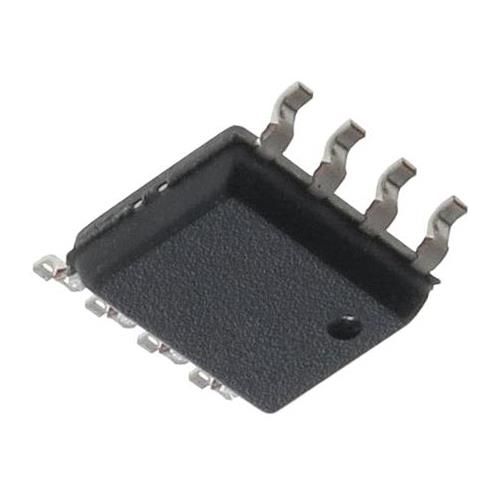

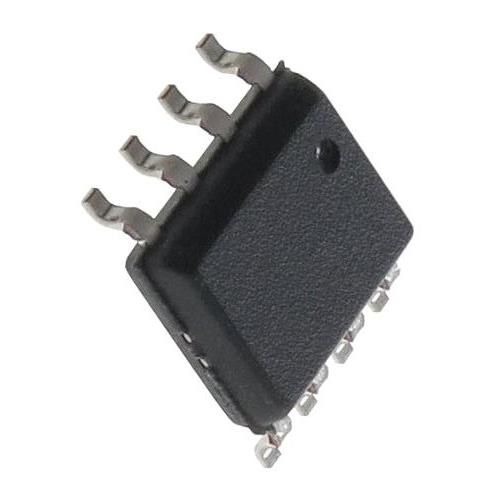

DGD2101M HIGH-SIDE AND LOW-SIDE GATE DRIVER IN SO-8 Description Features The DGD2101M is a high-voltage / high-speed gate driver capable of Floating High-Side Driver in Bootstrap Operation to 600V driving N-Channel MOSFETs and IGBTs in a high-side/low-side Drives Two N-Channel MOSFETs or IGBTs in High-Side / Low- configuration. High-voltage processing techniques enable the Side Configuation DGD2101Ms high side to switch to 600V in a bootstrap operation. The Outputs Tolerant to Negative Transients 50ns (max) propagation delay matching between the high and the low Wide Low-Side Gate Driver and Logic Supply: 10V to 20V side drivers allows high frequency switching. Logic Inputs CMOS and TTL Compatible (Down to 3.3V) Schmitt Triggered Logic Inputs with Internal Pull Down The DGD2101M logic inputs are compatible with standard TTL and Undervoltage Lockout for V CC CMOS levels (down to 3.3V) for easy interfacing with controlling Extended Temperature Range: -40C to +125C devices. The driver outputs feature high-pulse current buffers designed Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) for minimum driver cross conduction. The low-side gate driver and Halogen and Antimony Free. Green Device (Note 3) logic share a common ground. For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q101, PPAP capable, and The DGD2101M is available in a space saving SO-8 package, the manufactured in IATF 16949 certified facilities), please operating temperature extends from -40C to +125C. contact us or your local Diodes representative. DGD2101M Pin Diagrams V 1 8 V B CC 2 7 HO HIN 3 6 V LIN S LO 4 5 COM Top View: SO-8 Pin Descriptions Pin Number Pin Name Function 1 V Low-side and logic fixed supply CC 2 HIN Logic input for high-side gate driver output (HO), in phase 3 LIN Logic input for low-side gate driver output (LO), in phase 4 COM Low-side return 5 LO Low-side gate drive output 6 V High-side floating supply return S 7 HO High-side gate drive output 8 V High-side floating supply B Functional Block Diagram 2 of 11 DGD2101M October 2019 Diodes Incorporated www.diodes.com Document number: DS39633 Rev. 2 - 2
