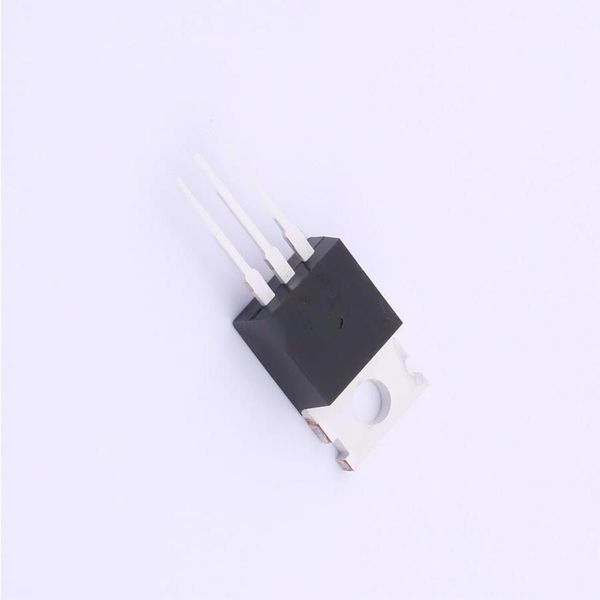

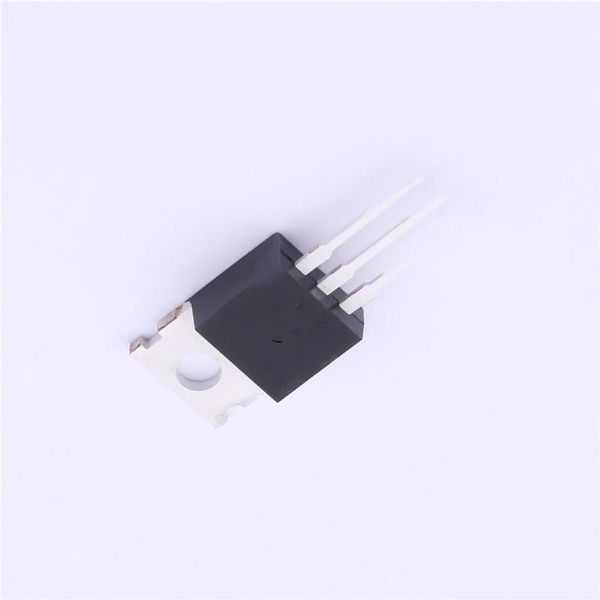

MBR10100CT-G1 Diodes Incorporated

MBR10100C HIGH VOLTAGE POWER SCHOTTKY RECTIFIER Product Summary Features V (V) I (mA) Low Forward Voltage: 0.85V +25C F (MAX) R (MAX) V (V) I (A) RRM O High Surge Current Capability +25C +25C +150C Operating Junction Temperature 100 2 5 0.85 0.1 10A Total (5A Each Diode Leg) Guard-Ring for Stress Protection Description Lead-Free Finish RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. Green Device (Note 3) High voltage dual Schottky rectifier suited for switch mode power For automotive applications requiring specific change control supplies and other power converters. This device is intended for use (i.e. parts qualified to AEC-Q101, PPAP capable, and in medium voltage operation, and particularly, in high frequency manufactured in IATF 16949 certified facilities), please circuits where low switching losses and low noise are required. contact us or your local Diodes representative. MBR10100C Ordering Information MBR10100C XX XX - XX Product Name Package Packing RoHS/Green T : TO-220-3 (2) Blank : Tube G1 : RoHS Compliant TF : TO-220F-3 and Green Package Part Number Marking ID Packing TO-220-3 (2) MBR10100CT-G1 MBR10100CT-G1 50 Pieces/Tube TO-220F-3 MBR10100CTF-G1 MBR10100CTF-G1 50 Pieces/Tube Marking Information (1) TO-220-3 (2) (Front View) First and Second Lines: Logo and Marking ID (See Ordering Information) Third Line: Date Code Y: Year XXXXXXXX WW: Work Week of Molding A: Assembly House Code XX: 7th and 8th Digits of Batch Number XX-XX YWWAXX (2) TO-220F-3 (Front View) First and Second Lines: Logo and Marking ID (See Ordering Information) Third Line: Date Code Y: Year WW: Work Week of Molding XXXXXXXX A: Assembly House Code XXX-XX XX: 7th and 8th Digits of Batch Number YWWAXX 2 of 7 MBR10100C October 2019 Diodes Incorporated www.diodes.com Document number: DS36953 Rev. 7 - 2
