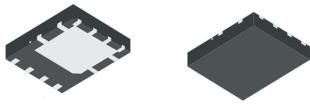

NOT RECOMMENDED FOR NEW DESIGN - SBRT20M80SLP CONTACT US Green 20A TrenchSBR TRENCH SUPER BARRIER RECTIFIER POWERDI 5060 Product Summary Features and Benefits V (MAX) (V) I (mA) F R(MAX) Reduced ultra-low forward voltage drop (V ) Better efficiency F V (V) I (A) RRM O +25C +25C and cooler operation. 80 20 0.61 0.16 Reduced high temperature reverse leakage Increased reliability against thermal runaway failure in high temperature operation. Less than 1.1mm package profile ideal for thin applications. Lead-Free Finish RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free Green Device (Note 3) Mechanical Data Description and Applications Case: POWERDI5060-8 Packaged in the compact thermally efficient POWERDI5060-8 Case Material: Molded Plastic, Green Molding Compound package, the SBRT20M80SLP provides very low V and excellent F UL Flammability Classification Rating 94V-0 reverse leakage stability at high temperatures. It is ideal for use as a Moisture Sensitivity: Level 1 per J-STD-020 rectifier, freewheel diode or blocking diode in: Terminals: Finish - Matte Tin Annealed over Copper Leadframe Solderable per MIL-STD-202, Method 208 DC-DC Converters Polarity: See Below AC-DC Adaptors Weight: 0.097 grams (Approximate) POWERDI5060-8 Top View Bottom View Pin A 1 A A A Top View Bottom View C C C C Ordering Information (Note 4) Part Number Case Packaging SBRT20M80SLP-13 POWERDI5060-8 2,500/Tape & Reel Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied. 2. See SBRT20M80SLP Maximum Ratings ( T = +25C, unless otherwise specified.) A Single phase, half wave, 60Hz, resistive or inductive load. For capacitance load, derate current by 20%. Characteristic Symbol Value Unit V Peak Repetitive Reverse Voltage RRM Working Peak Reverse Voltage 80 V V RWM DC Blocking Voltage V RM Average Rectified Output Current I 20 A O Non-Repetitive Peak Forward Surge Current 8.3ms 210 A I FSM Single Half Sine-Wave Superimposed on Rated Load Thermal Characteristics Characteristic Symbol Value Unit Typical Thermal Resistance Junction to Ambient (Note 5) R 12 C/W JA Typical Thermal Resistance Junction to Case (Note 5) R 1 C/W JC Operating and Storage Temperature Range T T -55 to +150 C J, STG Electrical Characteristics ( T = +25C, unless otherwise specified.) A Characteristic Symbol Min Typ Max Unit Test Condition 0.52 I = 10A, T = +25C F J Forward Voltage Drop (Note 6) V 0.55 0.61 V I = 20A, T = +25C F F J 0.59 I = 20A, T = +125C F J V = 80V, T = +25C 60 160 A R J Leakage Current (Note 6) I R 45 mA V = 80V, T = +125C R J Notes: 5. Test with Aluminum substrate 2oz, 2-inch sq. copper pad + additional Aluminum heatsink 50mm*50mm*23mm. 6. Short duration pulse test used to minimize self-heating effect. SBR and POWERDI are registered trademarks of Diodes Incorporated. 2 of 6 April 2021 SBRT20M80SLP Diodes Incorporated www.diodes.com Document number: DS36977 Rev. 4 - 3
