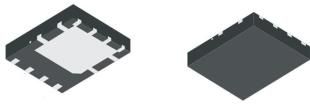

Green SBRT20U50SLPQ 20A TrenchSBR TRENCH SUPER BARRIER RECTIFIER POWERDI 5060 Product Summary Features and Benefits V (MAX) (V) I (mA) Patented Trench SBR technology provides superior avalanche F R(MAX) V (V) I (A) RRM O +25C +25C capability versus Schottky diodes, ensuring more rugged and 50 20 0.5 0.5 reliable end applications. Reduced ultra-low forward voltage drop (V ) Better efficiency F and cooler operation. Reduced high temperature reverse leakage Increased reliability against thermal runaway failure in high temperature operation. Less than 1.1mm package profile ideal for thin applications. Lead-Free Finish RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free Green Device (Note 3) Qualified to AEC-Q101 Standards for High Reliability PPAP Capable (Note 4) Description and Applications Mechanical Data Packaged in the compact thermally efficient POWERDI5060-8 Case: POWERDI5060-8 package, the SBRT20U50SLPQ provides very low V and excellent Case Material: Molded Plastic, Green Molding compound. UL F reverse leakage stability at high temperatures. It is ideal for use as a Flammability Classification Rating 94V-0 rectifier, freewheel diode or blocking diode in: Moisture Sensitivity: Level 1 per J-STD-020 Automotive Applications Terminals: Finish - Matte Tin annealed over Copper Leadframe. Solderable per MIL-STD-202, Method 208 Polarity: See Below POWERDI5060-8 Weight: 0.097 grams (approximate) Top View Bottom View Pin1 A A A A BOTTOMSIDE ANODE PINS HEAT SINK Top View Bottom View C C C Note: All four anode pins must C be electrically connected at the printed circuit board. Ordering Information (Note 5) Part Number Compliance Case Packaging SBRT20U50SLPQ-13 Automotive POWERDI5060-8 2500/Tape & Reel Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied. 2. See SBRT20U50SLPQ Maximum Ratings ( T = +25C, unless otherwise specified.) A Single phase, half wave, 60Hz, resistive or inductive load. For capacitance load, derate current by 20%. Characteristic Symbol Value Unit V Peak Repetitive Reverse Voltage RRM Working Peak Reverse Voltage 50 V V RWM DC Blocking Voltage V RM RMS Reverse Voltage V 35 V R(RMS) Average Rectified Output Current I 20 A O Non-Repetitive Peak Forward Surge Current 8.3ms 200 A I FSM Single Half Sine-Wave Superimposed on Rated Load Non-Repetitive Avalanche Energy E 640 mJ AS (T = +25C, I = 14.5A, L = 8.5Mh) J AS Repetitive Peak Avalanche Energy (1s, +25C) 40000 W P ARM Thermal Characteristics Characteristic Symbol Value Unit Typical Thermal Resistance Junction to Ambient (Note 6) 12 C/W R JA Operating Temperature Range T -55 to +150 C J Storage Temperature Range T -55 to +175 C STG Electrical Characteristics ( T = +25C, unless otherwise specified.) A Characteristic Symbol Min Typ Max Unit Test Condition 0.375 0.420 I = 10A, T = +25C F J Forward Voltage Drop (Note 7) V V F 0.445 0.500 I = 20A, T = +25C F J 0.144 0.500 V = 50V, T = +25C R J Leakage Current (Note 7) I mA R 100 V = 50V, T = +125C R J Total Capacitance C 350 pF V = 50V, f = 1MHz T R I =0.5A, I =1.0A, F R Reverse Recovery Time t 48 ns rr I =0.25A, RG1 rr Notes: 6. Device mounted on Al substrate PCB (30mm*30mm) with additional heat sink (Al 48mm*35mm*80mm) 7. Short duration pulse test used to minimize self-heating effect. 12 100 Note 5 10 10 T = 150C A T = 125C A 1 8 T = 85C A 6 0.1 T = 25C A 4 0.01 T = -55C A 2 0.001 0 0.0001 0 5 10 15 20 25 0 100 200 300 400 500 I AVERAGE FORWARD CURRENT (A) F(AV) V , INSTANTANEOUS FORWARD VOLTAGE (V) F Figure 1 Forward Power Dissipation Figure 2 Typical Forward Characteristics POWERDI are registered trademarks of Diodes Incorporated. 2 of 5 March 2014 SBRT20U50SLPQ Diodes Incorporated www.diodes.com Document number: DS36830 Rev. 2 - 2 NEW PRODUCT P , POWER DISSIPATION (W) D I, INSTANTANEOUS FORWARD CURRENT (A) F
