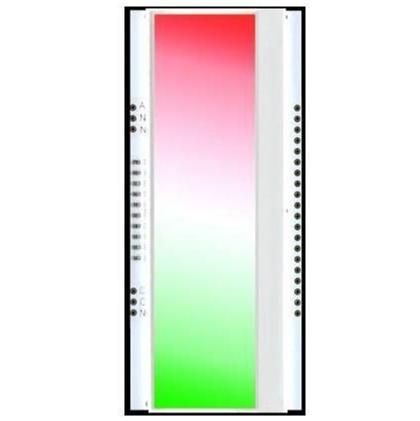

EA LED94X40-ERW Display Visions

available in low quantities flat: 6.5mm with LED b./l. mounted DOGM240-6 GRAPHIC Stand 03.2022 240x64 INCL. CONTROLLER UC1611s EA DOGM240W-6 + EA LED94X40-W EA DOGM240B-6 + EA LED94X40-W EA DOGM240W-6 + EA LED94X40-A TECHNICAL DATA * CONTROLLER UC1611s WITH INTEGRATED GRAFIC-RAM * HIGH-CONTRAST LCD SUPERTWIST DISPLAY (STN AND FSTN) WITH 15m DOT GAP * OPTIONAL LED BACKLIGHTS IN VARIOUS COLORS * 240x64 DOTS (CORRESPONDS TO 8x40 CHARS OR 4x20 LARGE CHARS) * POWER SUPPLY: SINGLE SUPPLY 2,7..3,3V (typ. 500 A) * NO ADDITIONAL VOLTAGES REQUIRED 2 * THREE DIFFERENT INTERFACES: 3-WIRE SPI, 4-WIRE SPI AND I C * OPERATING TEMPERATURE RANGE -20..+70C (STORAGE -30..+80C) * LED BACKLIGHTING 10 to 150mA * NO MOUNTING REQUIRED: SIMPLY SOLDER ONTO PCB ORDERING CODE GRAPHICS DISPLAY, 240x64, 94x40 mm EA DOGM240x-6 x: W = white background (FSTN pos. transflective) B = blue background (STN neg. transmissive) S = black background (FSTN neg. transmissive) N = superwhite background (FSTN pos. reflective, cannot be backlit) LED BACKLIGHT, WHITE EA LED94X40-W LED BACKLIGHT, AMBER EA LED94X40-A LED BACKLIGHT, DUO COLOR GREEN/RED EA LED94X40-GR LED BACKLIGHT, 3 COLORS GREEN/RED/WHITE EA LED94X40-ERW ACCESSORIES USB TEST BOARD FOR PC (WINDOWS 2000, XP, VISTA) EA 9780-4USB TOUCH PANEL, 4-WIRE, ANALOG, STICK-ON EA TOUCH240-4 ZIF CONNECTOR FOR TOUCH PANEL, BOTTOM CONTACT EA WF100-04S 10 CHARACTER SETS e.g. 6x8,8x8,8x16,CYRILLIC, FONT EDITOR EA USBSTICK-FONT SOCKET 4.8mm HEIGHT (2 pcs. ARE NECCESSARY) EA FL-20PDOGM240-6 GRAPHIC PINOUT The EA DOGM240-6, a 240x64 dots graphics Pin Symbol Level Function Pin Symbol Level Function 1 NC (A1+: LED backlight) 21 VB0+ - Voltage Converter display, is a new addition to ELECTRONIC 2 NC (A2+: LED backlight) 22 VB1+ - Voltage Converter 3 NC (A3+: LED backlight) 23 VB1- - Voltage Converter ASSEMBLYs EA DOG series. It, too, has pins that 4 24 VB0- - Voltage Converter allow it to be mounted quickly and easily. 5 25 VA0+ - Voltage Converter 6 26 VA1+ - Voltage Converter 7 27 VA1- - Voltage Converter CONTRAST ADJUSTMENT 8 28 VA0- - Voltage Converter 9 29 VLCD - Pow er LC Drive The contrast can be set by means of a command 10 30 VDD H Pow er Supply +2,7..3,3V 11 31 VSS for all the displays in theEA DOGM- Series. The L Pow er Supply 0V (GND) 12 32 VSS contrast setting of the display must be set once 13 33 BM0 H / L Config Serial Interface 14 34 CD H/ L L= Command, H= Data by the software, and is then kept constant 15 35 CS1 (A3) H Chip Select (high low ) 16 36 CS0 (A2) L Chip Select (active low ) throughout the entire operating temperature range 17 37 RST L Reset (active low ) 18 NC (C1-: LED backlight) 38 SCK (D0) H/ L Serial Clock (-20..+70C), thanks to the integrated temperature 19 NC (C2-: LED backlight) 39 SDA (D3) H/ L Serial Data compensation. 20 NC (C3-: LED backlight) 40 D13 H/ L Config Serial Interface CHARACTER SET AND FONT EDITOR (ACCESSORY) With the ordering code EA USBSTICK-FONT a memory stick comes with various character sets, especially made for this display. An import function allows additionally to use Windows fonts. With the FontEditor it is easy to generate for example Cyrillic, Greek and Arabic fonts. The preview function shows immediately the size and style in simulation window. When the testboard EA 9780-4USB is connected to the USB port, you can see the character (or any predefined text) live on the display 4 DIFFERENT TECHNOLOGIES See below for an overview of available technologies STN and FSTN. See also an recommandation to combine with backlights and their usability: Displayfarbe optionale Displayfarbe empfohlene Displaytyp Technologie Lesbarkeit mit Beleuchtung unbeleuchtet Beleuchtung Beleuchtung mit und ohne auch bei FSTN pos. schwarz auf Beleuchtungskrper abgeschalteter schwarz auf wei alle transflektiv Beleuchtungsfarbe zu verwenden Bel. lesbar Beleuchtungsfarbe STN neg. blau nur beleuchtet zu --- --- auf blauem wei, amber transmissiv verwenden Hintergrund Beleuchtungsfarbe FSTN neg. nur beleuchtet zu --- --- alle auf schwarzem transmissiv verwenden Hintergrund ohne FSTN pos. keine Beleuchtung schwarz auf wei --- --- Beleuchtung reflektiv mglich bestens lesbar Page 2 Printing and typographical errors reserved. DISPLAY VISIONS reserves the right to change specifications without prior notice.
