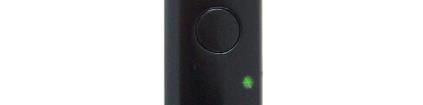

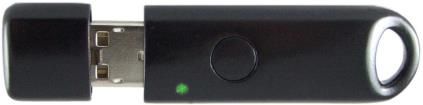

EL-USB-LITE Low Cost USB Temperature Data Logger -10 to 50C (14 to 122F) measurement range Stores over 4,000 readings 30 minute logging rate Immediate and delayed logging start User-programmable alarm thresholds Status indication via red and green LEDs EasyLog software available as a free download This standalone data logger measures and stores over 4,000 temperature readings over a -10 to +50C (+14 to +122F) range at a resolution of 1C (2F) at a fixed 30 minute sample rate. The user can easily set up the logger and view downloaded data by plugging the data logger into a PCs USB port and using the available free downloadable EasyLog software. Data can then be graphed, printed and exported to other applications. The data logger is supplied complete with a CR1620 lithium coin cell, which can typically allow logging for up to 1 month. EL-WIN-USB Lascars EasyLog control software is available as a free download from www.easylogusb.com. Easy to install and use, the control software is compatible with 32-bit and 64-bit versions of Windows XP, Vista, 7, 8 and 10. The software is used to set up the logger, download, graph and annotate data or export in Excel, PDF and jpeg formats. The software allows the following parameters to be configured: Logger name Logging rate every 30 minutes High and low alarms Immediate and delayed logging start Download the latest version of the software free of charge from www.easylogusb.com SPECIFICATIONS Measurement range -10 to 50C (14 to 122F) Internal resolution 1C (2F) ACCESSORIES Accuracy (overall error) 2.5C (4.5F) BAT 3VX5 Pack of x5 replacement Logging rate Every 30 minutes baeriestt Operating temperature range -10 to 50C (14 to 122F) INCLUDED IN THE BOX Baertt y Life 1 Month Readings 4,080 BAT 3VX5 Baertt y Dimensions 68 x 18.5 x 18.5mm (2.67 x 0.72 x 0.72EL-USB-LITE Low Cost USB Temperature Data Logger LED STATUS INDICATION The EL-USB-LITE features a bi-colour LED indicate logging and alarm status. To save power the status indication only operates when the push buton is pressed for a short while. Green single flash The data logger is currently logging. No alarm. Red single flash The data logger is currently logging. Low alarm. Red double flash The data logger is currently logging. High alarm. No LEDs flash The data logger is stopped, the baertt y is empty or there is no baertt y fitted. BATTERY INFORMATION Replacement We recommend that you replace the baertt y every month, or prior to logging critical data. The data logger does not lose its stored readings when the baertt y is discharged or replaced however, the data logging process will stop and will not resume until the baertt y is replaced and the logger restarted by EL-WIN-USB. For maximum logging life, only use Maxell or Panasonic CR1620 Lithium baeries. tt Before replacing please remove the EL-USB-LITE from the PC. WARNING Handle lithium metal baeries ctt arefully, observe warnings on baertt y casing. Dispose of in accordance with local regulations. www.lascarelectronics.com Issue 15 05/2016 N.R Page 3 of 3
