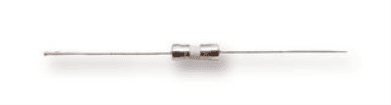

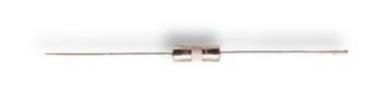

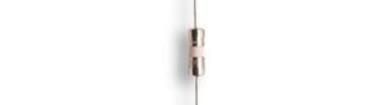

HALOGEN 3.6x10mm Axial-leaded, Time-Delay, Ceramic Tube Fuses HF Pb C310T Series FREE Dimensions - mm Drawing Not to Scale Axial Leaded Device Description Time-delay Axial leaded 3.6x10mm physical size Ceramic tube, nickel-plated brass cap construction Tinned copper axial leads Designed to IEC60127-3, Sheet 4 RoHS complaint (-R suffix code), lead-free and halogen free Electrical Characteristics Amp 1.5I 2.1I 2.75I 4I 10I n n n n n Rating Min Max Min Max Min Max Min Max 315mA ~ 6.3A 1hour 120sec 400ms 10sec 150ms 3sec 20ms 150ms Agency Information Ordering Guide JDXY2/JDXY8, File E19180 Specify packaging, product, and option code (e.g., C310T-1-R-TR1) VDE Approval: Certificate Nos. 40030092, 40024327 CQC Approval: File CQC10012042452, CQC08012023887 TUV Approval: Certificate No. R50179879001 KTL Approval: Nos. SU05030-10001, SU05030-10002, SU05001-10002, SU05001-10001 Specifications Catalog Voltage Interrupting Typical Cold Typical Typical Voltage Agency Approvals 2 Number Rating Vac Rating 250Vac (Amps) Resistance (m)* Melt I t Drop (mV) VDE cURus CQC TUV KTL C310T-315-R 250 35 442.80 0.936 220 X C310T-500-R 250 35 249.80 0.8 190 X X X X C310T-630-R 250 35 173.80 2.73 180 X C310T-1-R 250 35 75.90 6.7 140 X X X X C310T-1.25-R 250 35 59.50 12.54 130 X C310T-2-R 250 35 30.00 27.2 100 X X X X C310T-2.5-R 250 35 20.35 21.80 100 X X X X C310T-3.15-R 250 35 14.68 36.40 100 X X X X C310T-4-R 250 40 10.75 57.50 100 X X** X X** C310T-5-R 250 50 8.06 85.00 100 XX**XX** C310T-6.3-R 250 63 6.54 163.60 100 X X** X X** * DC Cold resistance measured at <10% of rated current. ** Agency approval pending. 0610 BU-SB08672 Page 1 of 2 Data Sheet 4088Time-Current Curves 1000 100 10 1 0.1 0.01 0.001 0.1 1 10 100 1000 Current in Amps Solder Temperature 2603C Soldering Information 260 3 Sec. Max. Wave Solder: Recommended reservoir temperature of Ambient 260C and 3 seconds maximum. Cooling Manual Solder*: Generally 4-5 seconds at 350C. Reflow Solder: Not recommended. 150 *Soldering iron. 100 9030 Sec Preheating Time (sec) Wave Solder Profile Packaging Code Packaging Code Suffix Description -TR1 1500 Fuses on a reel and five (5) reels in one (1) carton The only controlled copy of this Data Sheet is the electronic read-only version located on the Cooper Bussmann Network Drive. All other copies of this document are by definition uncontrolled. This bulletin is intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Cooper Bussmann reserves the right, without notice, to change design or construction of any products and to discontinue or limit distribution of any products. Cooper Bussmann also reserves the right to change or update, without notice, any technical information con- tained in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications. Life Support Policy: Cooper Bussmann does not authorize the use of any of its products for use in life support devices or systems without the express written approval of an officer of the Company. Life sup- port systems are devices which support or sustain life, and whose failure to perform, when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in significant injury to the user. 2010 Cooper Bussmann St. Louis, MO 63178 www.cooperbussmann.com 0610 BU-SB08672 Page 2 of 2 Data Sheet 4088 Time in Seconds 0.315A 0.5A 0.63A 1A 1.25A Temperature C 2A 2.5A 3.15A 4A 5A 6.3A
