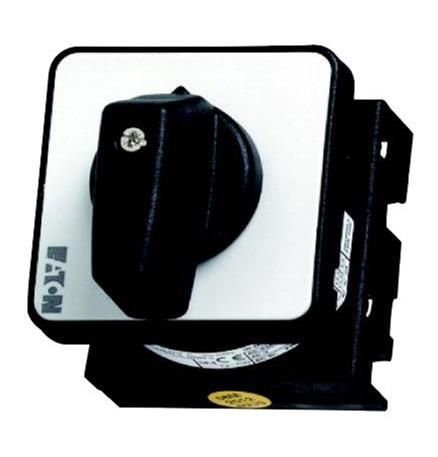

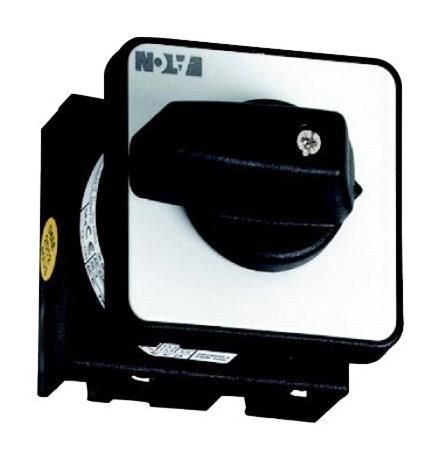

Changeoverswitches,Contacts:4,20A,frontplate:HAND-0-AUTO,45, maintained,flushmounting Partno. T0-2-15432/E Articleno. 034110 Similar to illustration Deliveryprogramme Product range Control switches Part group reference T0 Basic function Changeoverswitches with black thumb grip and front plate Contacts 4 Degree of Protection Front IP65 Design flush mounting Contact sequence Switching angle 45 Switching performance maintained With 0 (Off) position Front plate no. front plate HAND-0-AUTO MotorratingAC-23A,50-60Hz 400 V P kW 5.5 Rated uninterrupted current I A 20 u Number of contact units contact 2 unit(s) Technicaldata General Standards IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL Switch-disconnector according to IEC/EN 60947-3 Climatic proofing Damp heat, constant, to IEC 60068-2-78 Damp heat, cyclic, to IEC 60068-2-30 Ambient temperature Open C -25 - +50 Enclosed C -25 - +40 Overvoltage category/pollution degree III/3 Rated impulse withstand voltage U V AC 6000 imp Mechanical shock resistance g 15 03/18/2016 034110 - HPL-ED2016 V20.0 EN 1 / 5Mounting position As required Protection against direct contact when actuated from front (EN 50274) Finger and back-of-hand proof Contacts Electrical characteristics Rated operational voltage U V AC 690 e Rated uninterrupted current I A 20 u Note on rated uninterrupted current Rated uninterrupted current Iu is specified for max. cross-section. u Load rating with intermittent operation, class 12 AB 25 % DF x I 2 e AB 40 % DF x I 1.6 e AB 60 % DF x I 1.3 e Short-circuit rating Fuse A gG/gL 20 Rated short-time withstand current (1 s current) I A 320 cw rms Note on rated short-time withstand current lcw Current for a time of 1 second Rated conditional short-circuit current Iq kA 6 Switchingcapacity cos rated making capacity as per IEC 60947-3 A 130 Rated breaking capacity cos to IEC 60947-3 A 230 V A 100 400/415 V A 110 500 V A 80 690 V A 60 Safe isolation to EN 61140 between the contacts V AC 440 Current heat loss per contact at I W 0.6 e Current heat loss per auxiliary circuit at I (AC-15/230 V) CO 0.6 e 6 Lifespan, mechanical Operations > 0.4 x 10 Maximum operating frequency Operations/h 1200 AC AC-3 Rating, motor load switch P kW 220 V 230 V P kW 3 230 V Star-delta P kW 5.5 400 V 415 V P kW 5.5 400 V Star-delta P kW 7.5 500 V P kW 5.5 500 V Star-delta P kW 7.5 690 V P kW 4 690 V Star-delta P kW 5.5 Rated operational current motor load switch 230 V I A 11.5 e 230 V star-delta I A 20 e 400V 415 V I A 11.5 e 400 V star-delta I A 20 e 500 V I A 9 e 500 V star-delta I A 15.6 e 690 V I A 4.9 e 690 V star-delta I A 8.5 e AC-21A Rated operational current switch 440 V I A 20 e AC-23A Motor rating AC-23A, 50 - 60 Hz P kW 03/18/2016 034110 - HPL-ED2016 V20.0 EN 2 / 5
