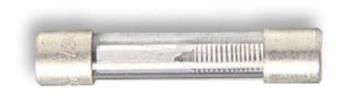

Effective June 2017 Technical Data 2602 Supersedes March 2013 Pb TDC10 and TDC11 1/4 x 1 1/4 (TDC10) fast-acting (TDC11) time delay glass tube fuses Ordering information Specify part number and product code prefix, e.g.: BK/TDC10-20-R Packaging Code Packaging x Description BK 100 fuses packed into a cardboard carton BK1 1000 fuses packed into a cardboard carton Product features Dimensions - mm 6.35 TDC10 fast-acting Drawing Not to Scale TDC11 time-delay 31.8 Lead free and RoHS compliant 14 x 1 14 physical size Glass tube, electroplated brass endcap construction Interrupting rating equals 10 times rated current TDC10 Series designed to British Standard BS2950A FAST -A CTING TDC10 SPECIFICATIONS Part Voltage Rating Interrupting Rating (amps rated voltage) * Number Amps (Vac) 1000V 750V 500V 350V 250V 150V 100V 32V TDC10-50-R 50mA 1000 500mA TDC10-60-R 60mA 1000 600mA TDC10-100-R 100mA 1000 1 TDC10-150-R 150mA 1000 1.5 TDC10-250-R 250mA 1000 2.5 TDC10-500-R 500mA 750 5 TDC10-750-R 750mA 500 7.5 TDC10-1-R 1 350 10 TDC10-1.5-R 1.5 250 15 TDC10-2-R 2 250 20 TDC10-3-R 3 250 30 TDC10-5-R 5 250 50 TDC10-7-R 7 150 70 TDC10-10-R 10 100 100 TDC10-12-R 12 32 120 TDC10-15-R 15 32 150 TDC10-20-R 20 32 200 TDC10-25-R 25 32 250 * Interrupting Rating: Interrupting rating is 10 times the rated current. ** DC Cold Resistance (Measured at <10% of rated current)TDC10 and TDC11 Technical Data 2602 1/4 x 1 1/4 (TDC10) fast-acting (TDC11) time delay glass tube fuses Effective June 2017 T IME -D ELAY TDC11 S PECIFICATIONS Part Voltage Rating Interrupting Rating (amps rated voltage) * Number Amps (Vac) 1000V 750V 500V 350V 250V 150V 100V TDC11-50-R 50mA 1000 500mA TDC11-60-R 60mA 1000 600mA TDC11-100-R 100mA 1000 1 TDC11-150-R 150mA 1000 1.5 TDC11-250-R 250mA 1000 2.5 TDC11-500-R 500mA 750 5 TDC11-750-R 750mA 500 7.5 TDC11-1-R 1 350 10 TDC11-1.5-R 1.5 250 15 TDC11-2-R 2 250 20 TDC11-3-R 3 250 30 TDC11-5-R 5 250 50 TDC11-7-R 7 150 70 TDC11-10-R 10 100 100 * Interrupting Rating: Interrupting rating is 10 times the rated current. ** DC Cold Resistance (Measured at <10% of rated current) Time-Current Curves TDC10 Series TDC11 Series 100 100 10 10 1 1 .1 .1 .01 .01 Time Rated Current Time Rated Current Life Support Policy: Eaton does not authorize the use of any of its products for use in life support devices or systems without the express written approval of an officer of the Company. Life support systems are devices which support or sustain life, and whose failure to perform, when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in significant injury to the user. Eaton reserves the right, without notice, to change design or construction of any products and to discontinue or limit distribution of any products. Eaton also reserves the right to change or update, without notice, any technical information contained in this bulletin. Eaton Electronics Division 1000 Eaton Boulevard Cleveland, OH 44122 United States www.eaton.com/electronics 2017 Eaton Eaton is a registered trademark. All Rights Reserved Printed in USA All other trademarks are property Publication No. 2602 BU-SB13328 of their respective owners. June 2017 Time in Seconds .1 1 10 100 Time in Seconds .1 1 10 100
