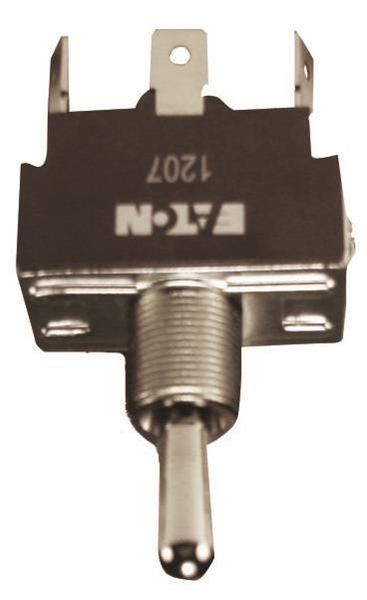

1 4 1 2 3 6 3 XT Series Toggles Vehicle Controls Introduction Applications Keyway Eatons new competitively Commercial and industrial 16.0 0.3 priced ac rated XT Series equipment Toggles offer a standard high 28.6 0.3 Household appliances rating for both single- and dou- Industrial machinery and 6.0 0.3 ble-pole applications. The new automation XT Series Toggle line offers a 16.5 1.0 wide range of switching Medical equipment circuits, functions and acces- 11.9 0.3 Military communications and sories. Ratings for single- and surveillance double-pole include 20 A at 17.2 0.5 125 Vac and 10 A at 277 Vac to Rail systems handle more severe inductive, 11.5 0.5 Signaling and communications motor and lamp loads. In addi- 15/32-32 NS-2A tion, XT Series Toggles have a Test and lab equipment high standard horsepower rating Telecommunications, cable of 1- hp from 125 250 Vac and broadcasting for double-pole applications. The easy-to-install toggles also have Single-Pole Dimensions in mm Accessories an industry standard .480-inch diameter mounting hole. For For more information on relevant added convenience and delivery accessories, see publication Keyway support, select industry standard number TD07002001E. Mounting Hole 19.0 0.5 switch circuit part numbers are +0.1 12.0 -0 available from stock. With so many features, XT Series can be 33.0 0.5 16.5 1.0 used in a variety of applications 6.0 0.2 1.6 0.1 11.0 0.1 11.9 0.3 18.8 0.5 15/32-32 NS-2A 11.5 0.5 3 21 6 5 4 Double-Pole Dimensions in mm Specifications Summary Single-Pole Rating 20 A, 125 Vac 10 A, 277 Vac 3/4 hp 125 250 Vac Double-Pole Rating 20 A, 125 Vac 10 A, 277 Vac 1-1/2 hp 125 250 Vac Available Circuits 1PST, 1PDT, 2PST, 2PDT Terminal Types Copper Screw 1, Brazen Tin-Plated Solder Lugs, Brazen Nickel-Plated .250 Spade Hardware Included Knurl Nut 1, Hex Nut 1 Mounting Means Threaded Bushing 12.0 +.1, -0 mm 16.5 +1, -1 mm Keyway 1.8 mm Located in Down Position Base Material Thermoset Molding Material Finish Zinc Alloy Toggle and Lever Contact Mechanism Slow-make/Slow-break Butt Contact Contact Resistance 50 Ohm Maximum Dielectric Strength AC 1500 V, 1 Minute Operating Temperature 0 ~ 65C Insulation Resistance DC 500 V 100M Ohm Minute Seal Level Rating IP40 Approval UL Recognized component for Canada (cUR marked): File E2702 RoHS Compliant Packaging Sealed in Polybag Labeled with Part Number 1 Furnished bulk packaged. Single-Pole Rating 20 A at 125 Vac 10 A at 277 Vac 3/4 hp, 125 250 Vac Recommended up to 15 A at 28 Vdc Circuit with Toggle In Terminal Type Catalog Number Poles and Throw UP Position CENTER Position DOWN Position 2 .250 Spade Screw Solder Lugs 1 PST ON NONE OFF XTD1A1A2 XTD1A2A2 XTD1A3A2 1 PST ON 3 NONE OFF XTD1F1A2 XTD1F2A2 XTD1F3A2 1 PDT ON OFF ON XTD2B1A XTD2B2A XTD2B3A 1 PDT ON NONE ON XTD2C1A XTD2C2A XTD2C3A 1 PDT ON NONE ON 3 XTD2D1A XTD2D2A XTD2D3A 1 PDT ON 3 OFF ON 3 XTD2E1A XTD2E2A XTD2E3A 1 PDT ON OFF ON 3 XTD2G1A XTD2G2A XTD2G3A 2 Keyway position. 3 Indicates momentary position. Double-Pole Rating 20 A at 125 Vac 10 A at 277 Vac 1-1/2 hp at 125 250 Vac Recommended up to 15 A at 28 Vdc Circuit with Toggle In Terminal Type Catalog Number Poles and Throw UP Position CENTER Position DOWN Position 4 .250 Spade Screw Solder Lugs 2 PST ON NONE OFF XTD3A1A2 XTD3A2A2 XTD3A3A2 2 PST ON 5 NONE OFF XTD3F1A2 XTD3F2A2 XTD3F3A2 2 PDT ON OFF ON XTD4B1A XTD4B2A XTD4B3A 2 PDT ON NONE ON XTD4C1A XTD4C2A XTD4C3A 2 PDT ON NONE ON 5 XTD4D1A XTD4D2A XTD4D3A 2 PDT ON 5 OFF ON 5 XTD4E1A XTD4E2A XTD4E3A 2 PDT ON OFF ON 5 XTD4G1A XTD4G2A XTD4G3A 4 Keyway position. 5 Indicates momentary position. Eaton Corporation Electrical Group 1000 Cherrington Parkway Moon Township, PA 15108 United States 877-ETN-CARE (877-386-2273) Eaton.com 2008 Eaton Corporation PowerChain Management is a registered All Rights Reserved trademark of Eaton Corporation. Printed in USA Publication No. PA07002001E / Z7341 All other trademarks are property of their September 2008 respective owners.
