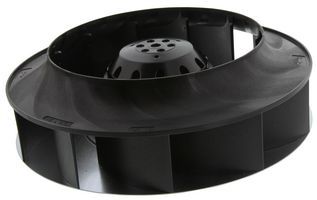

R2E250-AQ05-12 Operating instructions ebm-papst Mulfingen GmbH & Co. KG 1. SAFETY REGULATIONS AND INFORMATION Bachmhle 2 Read these operating instructions carefully before starting work on the D-74673 Mulfingen device. Observe the following warnings to prevent malfunctions or Phone +49 (0) 7938 81-0 danger to persons. Fax +49 (0) 7938 81-110 These operating instructions are to be regarded as part of the device. info1 de.ebmpapst.com The device is only to be sold or passed on together with the operating www.ebmpapst.com instructions. CONTENTS These operating instructions may be duplicated and distributed to inform about potential dangers and their prevention. 1. SAFETY REGULATIONS AND INFORMATION 1 1.1 Hazard levels for warnings 1.1 Hazard levels for warnings 1 These operating instructions use the following hazard levels to indicate 1.2 Staff qualifications 1 1.3 Basic safety rules 1 potentially hazardous situations and important safety regulations: 1.4 Voltage 1 DANGER 1.5 Safety and protective features 2 Indicates an imminently hazardous situation which will result in 1.6 Mechanical movement 2 death or serious injury if the specified actions are not taken. 1.7 Emissions 2 Compliance with the instructions is imperative. 1.8 Hot surface 2 1.9 Transport 2 WARNING Indicates a potentially hazardous situation which can result in 1.10 Storage 2 death or serious injury if the specified actions are not taken. 2. INTENDED USE 3 Exercise extreme caution while working. CAUTION 3. TECHNICAL DATA 4 Indicates a potentially hazardous situation which can result in 3.1 Product drawing 4 minor or moderate injury or damage to property if the specified 3.2 Nominal data 5 actions are not taken. 3.3 Technical description 5 3.4 Mounting data 5 NOTE 3.5 Transport and storage conditions 5 A potentially harmful situation can occur and, if not avoided, can lead to property damage. 4. CONNECTION AND STARTUP 5 4.1 Mechanical connection 5 1.2 Staff qualifications 4.2 Electrical connection 6 The device may only be transported, unpacked, installed, operated, 4.3 Connecting the cables 6 maintained and otherwise used by suitably qualified, trained and 4.4 Connection diagram 7 authorized technical staff. 4.5 Checking connections 8 Only authorized specialists are permitted to install the device, to carry 4.6 Switching on the device 8 out a test run and to perform work on the electrical installation. 4.7 Switching off the device 8 1.3 Basic safety rules 5. MAINTENANCE, MALFUNCTIONS, POSSIBLE 8 CAUSES AND REMEDIES The safety hazards associated with the device must be assessed again 5.1 Cleaning 9 following installation in the final product. 5.2 Safety inspection 9 Note the following when working on the device: 5.3 Disposal 9 Do not perform any modifications, additions or conversions on the device without the approval of ebm-papst. 1.4 Voltage Check the device s electrical equipment at regular intervals see Chapter 5.2 Safety inspection. Replace loose connections and defective cables immediately. DANGER Electrically charged device Risk of electric shock When working on an electrically charged device, stand on a rubber mat. WARNING Live terminals and connections even with device switched off Electric shock Item no. 11626-5-9970 ENU Change 90068 Approved 2016-08-26 Page 1 / 9 ebm-papst Mulfingen GmbH & Co. KG Bachmhle 2 D-74673 Mulfingen Phone +49 (0) 7938 81-0 Fax +49 (0) 7938 81-110 info1 de.ebmpapst.com www.ebmpapst.com Translation of the original operating instructionsR2E250-AQ05-12 Operating instructions Wait five minutes after disconnecting the voltage at all poles 1.7 Emissions before opening the device. WARNING CAUTION Depending on the installation and operating conditions, In the event of a fault, the rotor and the impeller will be the sound pressure level may exceed 70 dB(A). energized Risk of noise-induced hearing loss The rotor and the impeller have basic insulation. Take appropriate technical safety measures. Do not touch the rotor and impeller once installed. Protect operating personnel with appropriate safety CAUTION equipment such as hearing protection. The motor restarts automatically when operating voltage Also observe the requirements of local agencies. is applied, e.g. after a power failure. Risk of injury 1.8 Hot surface Keep out of the device s danger zone. CAUTION When working on the device, switch off the line voltage High temperature on motor housing and ensure that it cannot be switched back on. Risk of burns Wait until the device comes to a stop. Ensure sufficient protection against accidental contact. 1.5 Safety and protective features 1.9 Transport DANGER NOTE Protective device missing and protective device not Transporting the device functioning Transport the device in its original packaging only. Without a protective device there is a risk of serious injury, for Secure the device so it cannot slip, e.g. by using a instance when reaching into the device during operation. lashing strip. Operate the device only with a fixed protective device and guard grille. 1.10 Storage The fixed protective device must be able to withstand the Store the device, partially or fully assembled, in a dry place, kinetic energy of a fan blade that becomes detached at protected against the weather and free from vibration, in the original maximum speed. There must not be any gaps which it is packaging in a clean environment. possible to reach into with the fingers, for example. Protect the device against environmental effects and dirt until final The device is a built-in component. As the operator, you installation. are responsible for ensuring that the device is secured We recommend storing the device for no longer than one year in adequately. order to guarantee trouble-free operation and the longest possible Stop the device immediately if you notice a missing or service life. ineffective protective device. Even devices explicitly intended for outdoor use are to be stored as 1.6 Mechanical movement described prior to commissioning. Maintain the storage temperature, see DANGER Chapter 3.5 Transport and storage conditions. Rotating device Risk of injury to body parts coming into contact with the rotor or the impeller. Secure the device against accidental contact. Before working on the system/machine, wait until all parts have come to a standstill. WARNING Rotating device Long hair and dangling items of clothing, jewelry and the like can become entangled and be pulled into the device. Injuries can result. Do not wear any loose-fitting or dangling clothing or jewelry while working on rotating parts. Protect long hair with a cap. Item no. 11626-5-9970 ENU Change 90068 Approved 2016-08-26 Page 2 / 9 ebm-papst Mulfingen GmbH & Co. KG Bachmhle 2 D-74673 Mulfingen Phone +49 (0) 7938 81-0 Fax +49 (0) 7938 81-110 info1 de.ebmpapst.com www.ebmpapst.com Translation of the original operating instructions
