DS017LS Edsyn

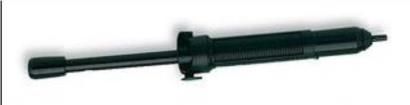

SOLDAPULLT Portable Desoldering Tools ...bringing innovative ideas to life Length: 8 (203mm) Wt: 1.7oz (49g) Length: 13 (330mm) Wt: 3.5oz (99g) SS011 DS017 Static Safe SOLDAPULLT Successor The Original Deluxe SOLDAPULLT s Static protection for sensitive devices s Designed for heavy duty, high volume applications s Precision engineered metal barrel & static safe PTFE tip s Easy one-hand loading and operation s Simple single handed loading system s Integral cleaning shaft self-cleans no-stick PTFE tip Length: 13 (330mm) Wt: 3.5oz (99g) Length: 8 (203mm) Wt: 1.9oz (54g) AS196 SS102 SILVERSTAT SOLDAPULLT Micro Tip Static Safe SOLDAPULLT Successor s TheRolls Royc of static safe desoldering hand tools s Micro tip version of SS011 for heavily populated boards and s Identical in size and performance to the DS017 precision work s Engineered with conductive plating s Palm grip or nger touch trigger for easier handling s Especially designed for desoldering of static safe components s Precision engineered metal barrel & static safe PTFE tip s Simple single handed loading system Length: 13 (330mm) Wt: 3.5oz (99g) DS017LS Length: 8.5 (216mm) Wt: 1.4oz (40g) SS343 Static Safe Deluxe SOLDAPULLT Static Safe Pico Tip Challenger SOLDAPULLT s Same as DS017 but molded from conductive plastic s New pointed pico tip for precision desoldering and high vacuum velocity for optimum performance s Precision engineered metal barrel & static safe PTFE tip Length: 12 (304mm) Wt: 2.5oz (71g) s Simple single-handed loading system PT109 s Static protection for sensitive devices SOLDAPULLT III s Smooth acting, light weight spring loaded tool s Similar to the DS017 but with petite barrel for smaller hands s Locking retractable shaft guide for portability and compact storage s Integral cleaning shaft self-cleans no-stick PTFE tip Length: 8.5 (216mm) Wt: 1.2oz (34g) SS750LS Economical Static Safe Challenger SOLDAPULLT s Compact static safe barrel s Quick change tiplet for no hassle maintenance Length: 12 (304mm) Wt: 2.5oz (71g) PT409 s Simple single-handed loading system Static Safe SOLDAPULLT III s Same as PT109 but molded from conductive plastic Length: 9 (229mm) Wt: 1.4oz (40g) SS350 Length: 12 (304mm) Wt: 2.5oz (71g) PT209 Static Safe Challenger SOLDAPULLT Micro Tip SOLDAPULLT III s Outstanding quality for the professional or hobbyist s Micro tip version of PT109 for heavily populated circuit boards and s Precision engineered metal barrel & static safe PTFE tip precision work s Simple single-handed loading system s Light weight petite barrel for smaller hands s Adjustable loading stroke to reduce hand strain s Locking retractable shaft guide for portability and compact storage s Integral cleaning shaft self-cleans no-stick micro PTFE tip Length: 8.5 (216mm) Wt: 1.5oz (43g) Length: 8.5 (216mm) Wt: 1.5oz (43g) US340 US140 Static Safe Universal SOLDAPULLT Universal SOLDAPULLT s Same as US140 but molded from conductive material s Compact single-handed loading system s Compact single-handed loading system s Adjustable loading stroke to t individual needs s Adjustable loading stroke to t individual needs s Loading and trigger release done with thumb s Loading and trigger release done with thumb *See page 37 for a complete list of Replacement Tips and O-Rings www.edsyn.com 8 3ERVICE 8 3ALES & 0(/.% s & s %- ), INFO EDSYN COM 33SOLDAPULLT Portable Desoldering Tips & O-Rings ...bringing innovative ideas to life Portable Replacement Tips and O-Rings Soldapullt Tip Tip Replacement i.d. L Part No. Part No. Image O-Ring Part No. AS196 LS197 .136 (3.4mm) .53 (13.5mm) ODS31 DS017 SRT12 .136 (3.4mm) .53 (13.5mm) ODS31 DS017LS LS197 .136 (3.4mm) .53 (13.5mm) ODS31 DS117 SRT12 .136 (3.4mm) .53 (13.5mm) OA193 & ODS31 .136 (3.4mm) .53 (13.5mm) DS317 LS197 OA195 & ODS31 DS517 LS561 .098 (2.5mm) .53 (13.5 mm) OA197 PT109 SRT12 .136 (3.4mm) .53 (13.5mm) OSB32 PT209 MRT16 .098 (2.5mm) .53 (13.5mm) OSB32 PT409 LS197 .136 (3.4mm) .53 (13.5mm) OSB32 SS011 LS363A .136 (3.4mm) .53 (13.5mm) OS130 SS102 LS364A .098 (2.5mm) .53 (13.5mm) OS130 SS343 LS915 .070 (1.8mm) .53 (13.5mm) OS130 SS350 LS363 .136 (3.4mm) .53 (13.5mm) OS130 SS750LS LS751 .107 (2.7mm) .50 (12.7mm) OS130 US140 SRT12 .136 (3.4mm) .53 (13.5mm) ODS31 US340 LS197 .136 (3.4mm) .53 (13.5mm) ODS31 Maintenance Tip: Use OL111 O-Ring lube for lubrication and longer tool life www.edsyn.com 8 3ERVICE 8 3ALES & 0(/.% s & s %- ), INFO EDSYN COM 37
