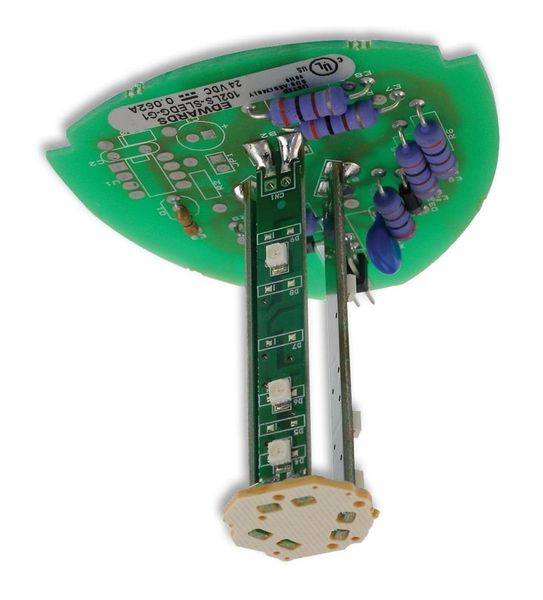

SIGNAL SOLUTIONS Reliable, easy-to-install TM Triliptical Stackable Status Indicator for industrial applications TM The 102 Series Triliptical Stackable status indicators from Edwards are PLC compatible, NEMA 4X Rated, industrial stackable beacons. They are unique audible-visual signaling devices which contain up to 5 light modules and an optional tone module in a single stack. Designed to maximize viewing surface while minimizing the mounting footprint the lens incorporates a projection ring to project the light over a distance and diffusion optics for viewing efficiency at close range. All modules TM 102 Series Triliptical have captive gaskets and screws. Stackable Status Indicator key The unit can be easily surface mounted or features: mounted on 3/4 (19 mm) NPT conduit. It is designed for use in non-hazardous dust and UL Listed and CSA Certified weatherproof applications. for indoor & outdoor applica- The lens modules are available in five bril- tions liant colors: red, amber, blue, green and clear. CE Marked visual signal Steady-on and flashing LED, halogen, standard NEMA 4X, NEMA 3R and incandescent and flashing strobe light mod- IP65 rated ules can be used in conjunction with any of the five available lens modules. The steady-on Molded in gaskets in lens and and flashing LED modules are available in four sound module panels colors (red, amber, blue and green) and must Modules stackable in any be used in conjunction with the matching lens combination or color module for true color. Available in 24V DC or 120V For more information on the 102 stackable AC beacons, see the Products Section of our website at: www.edwards-signals.com/products Optional base mounted single tone or multi-tone signal modules Vibration resistant design Module rearrangement re- quires no rewiringElectrical Lamp Replacement Lamp Life (hours) Manufacturer s Catalog No. Ratings Ratings Lamp Calculated Projected Light Output BASE UNIT - USE WITH OPTIONAL HORN ASSEMBLY AND 3/4 (19MM) CONDUIT MOUNT C/W CAP + 102TBS-G1 24V DC, 1.75A N/A N/A N/A N/A N/A + 102TBS-N5 120V AC, 0.60A BASE UNIT - MINI BASE FOR DIRECT PANEL MOUNT C/W CAP + 102DMBS-G1 24V DC, 1.75A N/A N/A N/A N/A N/A + 102DMBS-N5 120V AC, 0.60A BASE UNIT - MINI BASE FOR 3/4 (19 MM) CONDUIT MOUNT C/W CAP + 102PMBS-G1 24V DC, 1.75A N/A N/A N/A N/A N/A + 102PMBS-N5 120V AC, 0.60A OPTIONAL TONE MODULE 102SIGST-G1 24V DC, 0.05A N/A N/A N/A N/A N/A 102SIGST-N5 120V AC, 0.05A 102SIGMT-G1 24V DC, 0.05A N/A N/A N/A N/A N/A 102SIGMT-N5 120V AC, 0.05A LENS MODULES 102LM-* N/A N/A N/A N/A N/A N/A STEADY-ON HALOGEN LIGHT SOURCE 102LS-SINH-G1 24V DC, 0.32A 9 Watts 50LMP-9WH 12,000 52 Lumens or Ind. Trade 1692*** 102LS-SINH-N5 120V AC, 0.11A 12 Watts 50LMP-12WH 20,000 70 Lumens or Ind. Trade 15T7DC*** STEADY-ON STANDARD INCANDESCENT LIGHT SOURCE 102LS-SIN-G1 24V DC, 0.32A 10 Watts Ind. Trade 303 10,000 66 Lumens 102LS-SIN-N5 120V AC, 0.08A 10 Watts 50LMP-10W 2,500 66 Lumens FLASHING HALOGEN LIGHT SOURCE 102LS-FINH-G1 24V DC, 0.32A 9 Watts 50LMP-9WH 12,000 15,000 52 Lumens or Ind. Trade 1693*** 102LS-FINH-N5 120V AC, 0.11A 12 Watts 50LMP-12WH 20,000 25,000 70 Lumens or Ind. Trade 15T7DC*** FLASHING STANDARD INCANDESCENT LIGHT SOURCE 102LS-FIN-G1 24V DC, 0.32A 10 Watts Ind. Trade 303 10,000 12,500 66 Lumens 102LS-FIN-N5 120V AC, 0.08A 10 Watts 50LMP-10W 2,500 3,000 66 Lumens STROBE LIGHT SOURCE 102LS-ST-G1 24V DC, 0.30A 3 Joule 91B-ST 3,000 300,000 peak cd 102LS-ST-N5 120V AC, 0.12A 3 Joule 91B-ST 3,000 300,000 peak cd STEADY-ON LED LIGHT SOURCE 102LS-SLEDA-G1** 24V DC N/A 100,000 346 Lumens 102LS-SLEDB-G1** 0.062A 145 Lumens 102LS-SLEDG-G1** 145 Lumens 102LS-SLEDR-G1** 145 Lumens 102LS-SLEDA-N5** 120V AC N/A 100,000 346 Lumens 102LS-SLEDB-N5** 0.022A 145 Lumens 102LS-SLEDG-N5** 145 Lumens 102LS-SLEDR-N5** 145 Lumens FLASHING LED LIGHT SOURCE 102LS-FLEDA-G1** 24V DC N/A 100,000 346 Lumens 102LS-FLEDB-G1** 0.062A 145 Lumens 102LS-FLEDG-G1** 145 Lumens 102LS-FLEDR-G1** 145 Lumens 102LS-FLEDA-N5** 120V AC N/A 100,000 346 Lumens 102LS-FLEDB-N5** 0.022A 145 Lumens 102LS-FLEDG-N5** 145 Lumens 102LS-FLEDR-N5** 145 Lumens + Currents shown are for a stackable with 5 light modules. *Signifies lens module color (A - amber, B - blue, C - clear, G - green, R - red) NOTE: LED light sources must be used with the corresponding color **Signifies lens and LED module color (A - amber, B - blue, G - green, R - red) lens module (e.g., a blue LED light source, 102LS-SLEDB-G1, must be used with a blue lens, 102LM-B). ***A non-halogen lamp, as listed, may be used in place of the halogen lamp. At nominal operating voltage. Projected lamp life based on manufacturer s calculated lamp life 65 fpm and 50% duty cycle. Strobe tube life operating power to 75% efficiency. 90 Fieldstone Court Cheshire, CT 06410-1212 Phone: 203-699-3000 Fax-on-Demand: 203-699-3361 www.edwards-signals.com 1432-Ver. 1-7.5M
