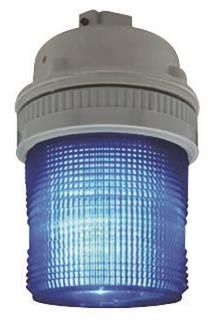

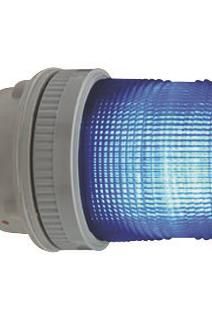

105XBRM Series XTRA-BRITE LED Adverse Location Visual Signals The 105XBRM Series LED visual signals are heavy duty, reliable, UL, cUL (General Utility) (misc. device/control unit accessory) beacons. The 105XBRM Series features a UL listed Type 4X enclosure and is UL Listed for Marine Use. These signals are designed for use in industrial applications or in applications where a Type 4X enclosure is required. The 105XBRM LED series come in a steady-on mode, and can easily be set to a 65 fpm flashing mode. The base is manufactured from glass-reinforced thermoplastic polyester resin and the double fresnel lens is made of shatter resistant polycarbonate. The 105XBRM Series has three different configurations for mounting that include the 105BX junction box, the 105BM mounting bracket, and the 105PM pipe mount attachment. The unit can be mounted on NPT using the 105PM pipe attachment. It can also be surface mounted using the 105BX junction box, or wall mounted using the 105BX junction box with the 105BM mounting bracket. All three mounting options are non-conductive plastic fixtures and do not provide earth-ground continuity when attached to metallic wiring systems. They are intended for use with the 105XBRM visual signals only when earth-grounding is not required. They can only be used with metallic wiring systems when installed at the end of the run. 105XBRM Series Features Available in 24V DC or 120V AC 65 fpm mode field-selectable via dipswitch Three mounting bases: pipe Immune to shock and vibration mount attachment, outlet box attachment, -31F to 212F (-35 to 100C) operating temperature or wall mounting bracket Data Sheet ES001-0112 Issue 1 Not to be used for installation purposes. Page 1 of 2105XBRM Series Projected LED Description Cat. No. LED Colors Life (L70)** Operating Voltage Current Replacement Lens Amber, Blue, Green, 105XBRM*24D 148,000 hours 24V DC 0.215 A 105-L* LED Adverse Location Signal Red, White in NEMA 4X Enclosure Amber, Blue, Green, 120V AC 105XBRM*120A 148,000 hours 0.108 A 105-L* Red, White 50/60 Hz *Letter in this position designates lens color: A - amber, B - blue, G - green, R - red, or W - white ** LED Manufacturers Median Projected LED Life for LUXEON Rebel LEDs (L70 at 85C and T 98C). Actual LED life will vary inversely with ambient temperature, voltage, driver current, junction junction temperature and duty-cycle at which the signaling device is operated. Please refer to
