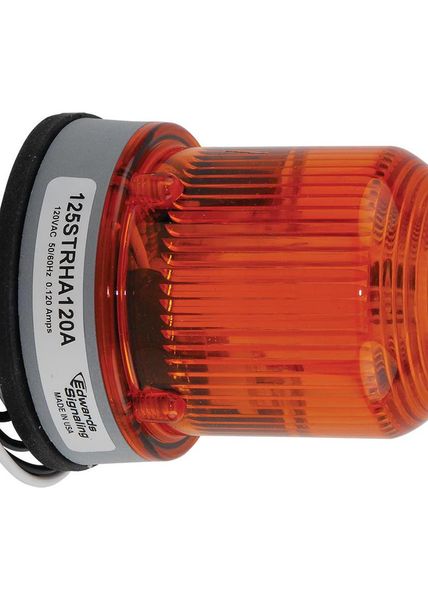

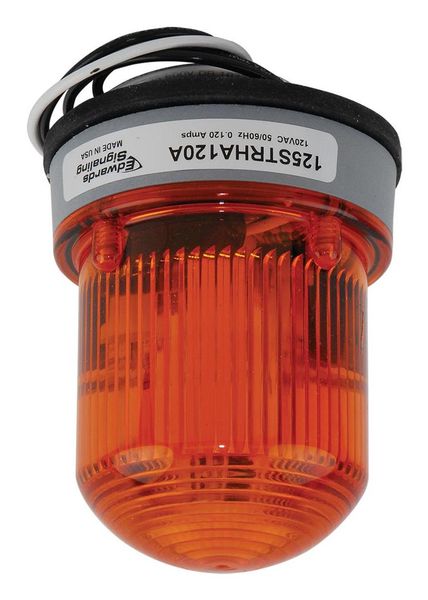

125 Class Strobe Beacons for NEMA 4X Applications The Edwards 125 Class Strobe beacons are UL and cUL listed signaling devices, available in two versions, normal light output and high light output. Both versions feature a corrosion resistant Type 4X enclosure and can be panel or conduit mounted. The base is manufactured from a polycarbonate/ABS blend, and the lens is made of shatter resistant polycarbonate. Both the normal light output and high light output beacons are available with either a black or gray base, and amber, blue, clear, green or red lens. The 125 Class Strobe beacons can be mounted on 1/2 or 3/4 NPT conduit using a 1/2 internal or 3/4 external conduit hub that comes with the unit. It can also be panel-mounted using the mounting gasket provided with the unit. When panel- mounting the 125 Class Strobe, the surface and construction details of the panel must be taken into consideration to ensure the integrity of the outdoor, NEMA 4X rating is fully maintained. 125 Class Strobe Features High Light Output available in 120V AC Available in High Light Output or Normal Light Output Normal Light Output available in 12-48V DC, 120V AC versions or 240V AC Available with amber, blue, clear, green or red lens Available with gray or black base -31F to 150F (-35C to 66C) operating temperature Option for panel or conduit mounting Protective wire guard available, Cat. No. 125GRD Data Sheet ES001-0108 Issue 1 Not to be used for installation purposes. Page 1 of 2125 Class Strobe Beacons Strobe Operating Replacement Replacement Description Output Cat. No. Base Color LED Colors Voltage Current Lens Strobe Tube Amber, Blue, Clear, 120V AC High 125STRH*120A Gray 0.120 A 125L* 91B-ST Output Green, Red 50/60 Hz 300,000 peak Amber, Blue, Clear, 120V AC 125STRH*120AB Black 0.120 A 125L* 91B-ST candlepower** Green, Red 50/60 Hz Amber, Blue, Clear, 125STRN*1248D Gray 12-48V DC 0.350 A 125L* 114-ST Green, Red Amber, Blue, Clear, 120V AC 125STRN*120A Gray 0.100 A 125L* 91B-ST Strobe Beacons in NEMA Green, Red 50/60 Hz 4X Enclosure Amber, Blue, Clear, 240V AC Normal 125STRN*240A Gray 0.050 A 125L* 91B-ST Output Green, Red 50/60 Hz 175,000 peak Amber, Blue, Clear, 125STRN*1248DB Black 12-48V DC 0.350 A 125L* 114-ST candlepower Green, Red Amber, Blue, Clear, 120V AC 125STRN*120AB Black 0.100 A 125L* 91B-ST Green, Red 50/60 Hz Amber, Blue, Clear, 240V AC 125STRN*240AB Black 0.050 A 125L* 91B-ST Green, Red 50/60 Hz *Letter in this position designates lens color: A - amber, B - blue, C - clear, G - green, or R - red **Maximum capacitor operating temperature (Tc) is 185F (85C). Dimensional Drawings 3.875 (98.4mm) Gasket (provided for use when direct panel mounting) Locknut - 1.3625 O.D. (provided Double threaded for for use when direct panel panel mounting or mounting) 1/2 internal or 3/4 external conduit mounting 3.25 (82.6mm) Agency Approvals 1638 Listed Listed Listed NEMA 4X Enclosure 41 Woodford Avenue Plainville, CT 06062 Data Sheet ES001-0108 Issue 1 1.800.336.4206 Not to be used for installation purposes. www.edwardssignaling.com Page 2 of 2 Copyright 2010 Edwards Signaling
