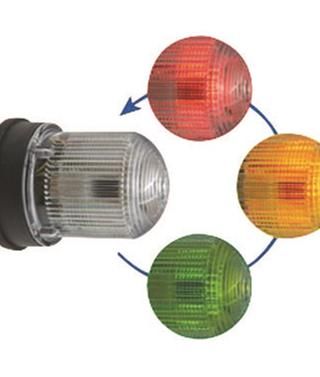

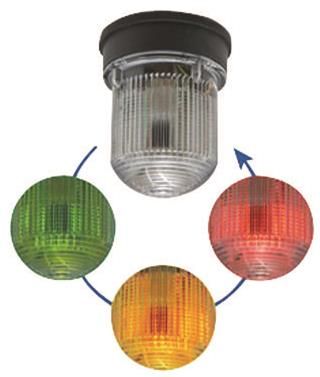

125 Class Chameleon 125XBRi Series XTRA-BRITE LED Multi-Status Indicator in NEMA 4X Enclosure The Edwards 125XBRi Series XTRA-BRITE LED Multi-Status Indicator is a UL and cUL listed, multi-color visual signaling device. It features a corrosion resistant Type 4X enclosure and can be panel or conduit mounted. The base is manufactured from a 33% glass filled nylon, providing high resistance to heat and high chemical resistivity. The lens is made of shatter resistant polycarbonate. The lights are available in 24V DC and 120V AC 50/60 Hz, in either Red/Blue/Amber or Red/Green/Amber. Edwards Signalings NEW 125XBRi Multi-status Indicator is more chameleon-like than ever. New Adaptive Design: One device does it all With a quick change to the new 125XBRi Chameleons dip switch settings, these flexible multi-status indicators instantly adapt for use with or without control from an external PLC, PAC, or control relay. Now, regardless of the application, you will have just the right device for the job with only half the inventory. XTRA-SAFE Enabled The Chameleon 125XBRi devices ship as standard with Edwards Signalings XTRA-SAFE Technology (patent pending) Enabled. XTRA-SAFE multi-status indicating devices employ patented combinations of color AND flash-rate to provide more definite status indication to those who are color- blind. With XTRA-SAFE , when Chameleon multi-status indicators are turned red, they pulse at a rate of 240 flashes per minute, further emphasizing the urgency that the color red typically connotes. When amber, these devices pulse at a less urgent rate of 120 flashes per minute. When Chameleon multi-status indicators are turned blue or green and no other colors are activated, the Chameleon devices remain steady-on and do not flash. Even in extreme cases where no color is perceived, flash-rate variation provides a redundant layer of visual indication. When XTRA-SAFE Technology is enabled, and multiple colors are energized, the device will cycle through the energized colors at the following pre-set flash-rates: Red: 240 FPM Amber: 120 FPM Green or Blue: 65 FPM XTRA-SAFE Disabled While in most cases, the added layer of safety gained by operating a multi-status indicator with XTRA-SAFE Technology is desirable, some applications may not require differentiation in flash rates. In other applications, changes do not correspond to escalating levels of urgency. The adaptive design of the new Chameleon 125XBRi allows the product to be adapted to accommodate these requirements by a simple dip switch configuration. With XTRA-SAFE Disabled, when red or amber, the unit pulses at a rate of 65 flashes per minute. When Chameleon multi-status indicators are turned green or blue and no other colors activated, the Chameleon devices remain steady on and do not flash. When XTRA-SAFE Technology is disabled, and multiple colors are energized, the device will cycle through the energized colors at 65 FPM. Externally Controlled The Chameleon multi-status indicators can also be used in applications where they will be controlled externally using a Programmable Logic Controller (PLC) or other such external controller. When externally controlled by a PLC, activation of colors and flash-rate are fully customizable, and can be programmatically determined. In applications, where multiple colors are activated simultaneously, the lights operate on a priority with red highest, amber second and blue or green, the lowest. The 125 Class Chameleon beacons can be mounted on 1/2 or 3/4 NPT conduit using a 1/2 internal or 3/4 external conduit hub that comes with the unit. It can also be panel-mounted using the mounting gasket provided with the unit. When panel-mounting the 125 Class Chameleon, the surface and construction details of the panel must be taken into consideration to ensure the integrity of the outdoor, NEMA 4X rating is fully maintained. 125XBRi Features Available in 24V DC or 120V AC Dip switch settings for use with or without external control Available with gray or black base Immune to shock and vibration Available in Red/Blue/Amber or Red/Green/Amber -31F to 150F (-35 to 66C) operating temperature Option for panel or conduit mounting Protective wire guard available, Cat. No. 125GRD PLC Compatible Data Sheet ES001-0114 Issue 1 XTRA-SAFE Technology enables status indication Not to be used for installation purposes. for those who are color blind Page 1 of 2125XBRi Series Chameleon Projected LED Description Cat. No. Base Color LED Colors Life (L70)** Operating Voltage Current Replacement Lens 125XBRiRGA24D Gray Red, Green, Amber 148,000 hours 24 VDC 0.150 A 125LC* 125XBRiRGA120A Gray Red, Green, Amber 148,000 hours 120 VAC 50/60 Hz 0.100 A 125LC* 125XBRiRBA24D Gray Red, Blue, Amber 148,000 hours 24 VDC 0.150 A 125LC* LED Multi-Status Indicator 125XBRiRBA120A Gray Red, Blue, Amber 148,000 hours 120 VAC 50/60 Hz 0.100 A 125LC* in NEMA 4X Enclosure 125XBRiRGA24DB Black Red, Green, Amber 148,000 hours 24 VDC 0.150 A 125LC* 125XBRiRGA120AB Black Red, Green, Amber 148,000 hours 120 VAC 50/60 Hz 0.100 A 125LC* 125XBRiRBA24DB Black Red, Blue, Amber 148,000 hours 24 VDC 0.150 A 125LC* 125XBRiRBA120B Black Red, Blue, Amber 148,000 hours 120 VAC 50/60 Hz 0.100 A 125LC* *Clear ** LED Manufacturers Median Projected LED Life for LUXEON Rebel LEDs (L70 at 85C and T 98C). Actual LED life will vary inversely with ambient temperature, voltage, driver current, junction junction temperature and duty-cycle at which the signaling device is operated. Please refer to
