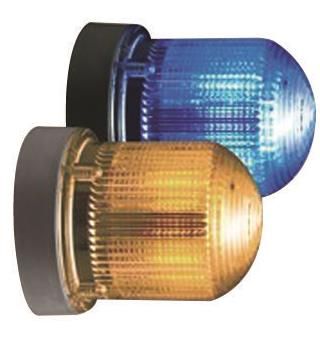

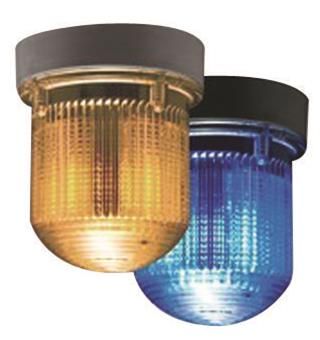

Installation Instructions for 125 Class Beacons, XBR (XTRA-BRIGHT) LED Models Description Mechanical Specifications Edwards 125 Class XBR LED Beacons are UL and cUL listed Outdoor Locations dual mode signaling appliances rated for NEMA 4X applica- Temperature Ratings ........... -31F to +150F (-35C to +66C) tions. Two versions of 125 Class XBR LED Beacons are available: Steady-On/Flashing (125XBRM) and Steady-On/ WARNING Lightburst (125XBRZ). Both versions can be either surface or To prevent electrical shock, ensure that power conduit mounted. A protective wire guard, Cat. No. 125GRD, is turned off before installing the signal. is also available. Both 125XBRM and 125XBRZ beacons are dual mode devic- Installation es maximizing application flexibility while reducing inventory Conduit Mounting (Figures 1 & 3) costs. 125XBRM beacons ship from the factory in Steady-On mode with the built-in option of switching to (65 fpm) Flashing 1. Feed the 18 (457 mm) signal wire leads through either mode by means of an additional wire connection. (Refer to 1/2 or 3/4 conduit into an approved conduit outlet box. Setting the Flash Mod for details). In the same manner, (Product is supplied with a double threaded - 1/2 internal 125XBRZ beacons ship from the factory in Steady-On mode and 3/4 external - conduit hub.) and where ultra visibility is critical, can be easily switched 2. Thread the conduit onto the base of the signal. to Lightburst mode. (Refer toSetting the Flash Mod for details). 125 Class XBR (XTRA-BRIGHT) LED Beacons are Panel Mounting (Figures 2 & 4) available in red, blue, green, amber, or white. Note: When panel mounting these beacons, the surface and construction details of the panel must be Electrical Specifications taken into consideration in order to ensure that the integrity of the outdoor, NEMA 4X rating is fully GRAY BASE BLACK BASE maintained. Installer should evaluate. Catalog Number Catalog Number Electrical Specs Color 1. Place the mounting gasket (supplied) over the hole in Steady-On/Flashing the panel and route the signal wires through the gasket 125XBRMA24D 125XBRMA24DB 24V DC, 0.215A Amber and the hole in the panel. 125XBRMA120A 125XBRMA120AB 120V AC*, 0.108A Amber 125XBRMB24D 125XBRMB24DB 24V DC, 0.215A Blue 2. Insert the base through the hole in the panel and screw 125XBRMB120A 125XBRMB120AB 120V AC*, 0.108A Blue the locking nut (supplied), with the raised locking edge facing the mounting surface, onto the base to secure the 125XBRMG24D 125XBRMG24DB 24V DC, 0.215A Green beacon. 125XBRMG120A 125XBRMG120AB 120V AC*, 0.108A Green 125XBRMR24D 125XBRMR24DB 24V DC, 0.215A Red 125XBRMR120A 125XBRMR120AB 120V AC*, 0.108A Red WARNING 125XBRMW24D 125XBRMW24DB 24V DC, 0.215A White To avoid risk of injury, install lens before 125XBRMW120A 125XBRMW120AB 120V AC*, 0.108A White energizing the unit and do not remove or Steady-On/Lightburst insert light source when unit is energized. 125XBRZA24D 125XBRZA24DB 24V DC, 0.215A Amber Wiring 125XBRZA120A 125XBRZA120AB 120V AC*, 0.108A Amber 125XBRZB24D 125XBRZB24DB 24V DC, 0.215A Blue 1. Using wire nuts (not supplied), connect the signal s wire leads as shown in Figure 1 or 2. Polarity must be 125XBRZB120A 125XBRZB120AB 120V AC*, 0.108A Blue observed on DC models. 125XBRZG24D 125XBRZG24DB 24V DC, 0.215A Green 125XBRZG120A 125XBRZG120AB 120V AC*, 0.108A Green - AC Models: Connect the black wire to hot and the 125XBRZR24D 125XBRZR24DB 24V DC, 0.215A Red white wire to common. 125XBRZR120A 125XBRZR120AB 120V AC*, 0.108A Red - DC Models: Connect the red wire to positive (+) and 125XBRZW24D 125XBRZW24DB 24V DC, 0.215A White the black wire to negative (-). 125XBRZW120A 125XBRZW120AB 120V AC*, 0.108A White * 120V AC 50/60 Hz P/N 3101568 ISSUE 3 2010 2. Turn on power and verify that the signal operates Maintenance properly. Changing the Flash Mode WARNING To change the flash mode from Steady-On to Flashing on To avoid risk of injury, install lens before 125XBRM beacons or from Steady-On to Lightburst on energizing the unit. 125XBRZ beacons, connect the optional yellow wire as follows: To avoid the risk of injury, do not start any maintenance when unit is energized. - AC Models: Connect yellow wire to hot Cleaning - DC Models: Connect yellow wire to positive Disconnect power before cleaning. The module lens exterior NOTE: When using as shipped in Steady-On mode, cap surfaces should be periodically cleaned with a soft clean the yellow wire with a wire nut (supplied). cloth using water and a mild detergent to maintain optimum (See Figures 1 - 4 for details.) light visibility. Figure 1. Conduit Mounting (3/4 Shown) Figure 2. Panel Mounting 125XBR Series 125XBR Series LED Visual Indicator LED Visual Indicator Gasket Locking Nut - (supplied) 1.3625 OD (supplied) 3/4 NPT external (shown) 18 Wire Leads 1/2 NPT internal Control panel conduit (not supplied) (Enclosure) DC units Red Positive (+) AC units Black Hot Yellow, DC units Black negative (-) 18 Wire Leads Not connected AC units White neutral (wire nut supplied) Wire Nuts DC units Red positive (+), (Not Supplied) AC units Black Hot Power Source Wires DC units Black negative (-) AC units White Neutral Wire Nuts (not supplied) Yellow, Not connected Power Source (wire nut supplied) Wires - Wiring for 125XBRM or 125XBRZ Steady-On Mode - Wiring for 125XBRM or 125XBRZ Steady-On Mode P/N 3101568 ISSUE 3
