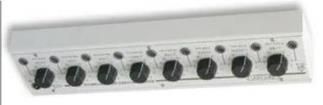

DR08 ELC

DECADE RESISTANCE BOXES ACCURACY 1% DR 04/05/06/07/08 ROBUST : Metal case, epoxy finish. PRECISE : Good long-term stability. - 1% resistors. EASY : front panel. - Intermediate tap at each decade. ROBUSTS RESISTANCE from 0,1 Ohm to 11,111 111 MOhms Specifications The DR04-07 boxes use metal film resistors offering 0.5% accuracy and a Other specifications temperature coefficient of 50 ppm/C. Safety : Complies with EN 61010-1, The DR08 box use thick film resistors of fering 1% accuracy and a temperature DR04-07, overvoltage category I, pollution degree 1. DR08, overvoltage category III, pollution degree 1. coefficient of 100 ppm/C Max voltage : DR04-07, 150V AC/DC (reinforced insulation). Output of each decade on 4mm safety socket. 250V AC/DC with earth connected to Screen outputs (front panel and case) on safety earth socket. safety earth socket (single insulation). DR08, 300V AC/DC (reinforced insulation) Robust switches with metal frame and gold-plated contacts. (R < 6m and R < 9m Pr esentation : aluminium mounting plate, screen-printed satin epoxy for DR08). Max power rating : 0.5 W. finish, metal case, epoxy finish. Type Weight Decades Multiplier in OHMS Totale Kg 1 10 100 1K 10K 100K 1M Resistance DR 04 1 4 11,110 K DR 05 1,4 5 111,110 K DR 06 1,44 6 1 111,110 K DR 07 1,52 7 11,111 110 M DR 08 1,4 8 11,111 111 M Accuracy % 3 1 1 1 1 1 1 1 Max current 2.3A 700 mA 200mA 70mA 20mA 7mA 2 mA 0,7 mA The assembly is mounted on the front panel which fits into a 19 standard DR04 : H = 2U (U = 44.45 mm) - L = 84F (F = 5.08 mm) subrack. DR 05, 06, 07 : H = 2U (U = 44.5 mm) - L = 84F (F = 5.08 mm) Mounting plate dimensions : 83 www.elc.fr X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for elc manufacturer: Other Similar products are found below : ALE2405R ALE2902M ALR3206D ALE2412 ALE1225 DL07 SH10020 ALE1502D DR07
