90921 Electri-Flex

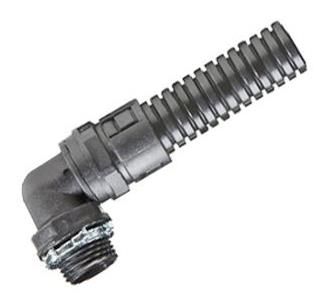

CORRLOK SYSTEM Nylon Conduit and Connectors t i u d n o C s r o t c e n n o C s e i r o s s e c c A CORRLOK Liquatite by Electri-Flex has earned a global reputation for manufacturing innovation and product quality. The pages that follow detail the Corrlok System. The Corrlok System is comprised of four types of flexible corrugated nylon conduits CL, CLR, CLL and CLFR designed for a wide range of applications. They are produced by an extrusion / corrugation process resulting in a flexible, seamless corrugated tube. The internal corrugations are well-rounded to facilitate easier wire pulling. The Corrlok System provides a very lightweight, liquidtight, flexible raceway alternative thats easy to work with and stands up to tough environments. Because the specially formulated nylons used are non-toxic and self-extinguishing, Corrlok is a proven choice in confined areas where fire hazards are a concern. The Corrlok accessories provide designers and electricians with many options for configuring and installing the raceway system. These accessories allow for a quick, simplified method of assembly and are perfectly suited for pre-wiring of harnesses. The low-profile fittings are great to use in tight areas and are molded from high-impact UL V-O Nylon. The one-piece design is easier than ever to assemble and re-use, using a simple removal sleeve. The conduit seats securely into place with the push of your hand. Distinctive Characteristics Include: Applications: Fast installation Passenger rail vehicle wiring UL recognized Industrial control equipment Liquidtight equivalent to IP 65 Machine tools (NEMA 4) and IP 68 (NEMA 6) Textile machinery Fitting material passes Molding / extrusion equipment ASTM E662, ATSM E1662 Fiber optics and SMP 800-C Medical equipment Halogen-free Robotics Flame-resistant Wire harnesses High impact and crush strength Resistant to many chemicals Sunlight-resistant Extreme temperature range High pullout strength RoHS and WEEE compliant The one-piece, snap-on connector can be easily removed by using the supplied yellow removal sleeve shown here. 2 www.electriflex.com Engineering Information
