T0-IT070Y024Z EMAS

Name: T0-IT070Y024Z
Brand: EMAS
SKU: T0IT070Y024Z_EMAS
Availability: InStock
Rating: 5 (11 reviews)

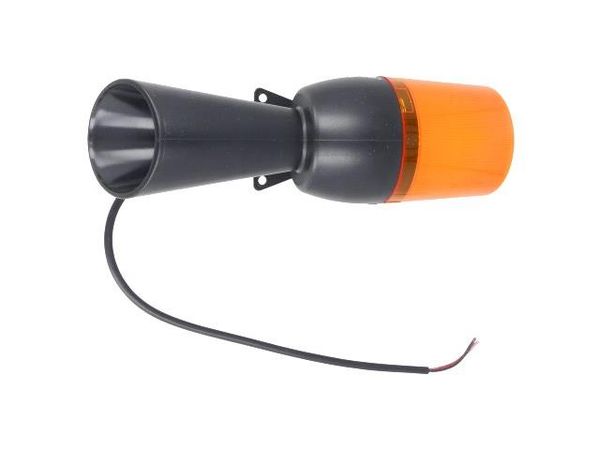

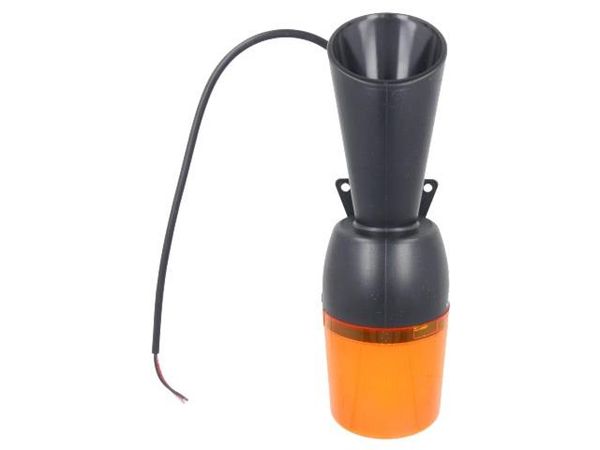

T0-IT070Y024Z electronic component of EMAS

Images are for reference only
See Product Specifications

Part No.	T0-IT070Y024Z
Manufacturer:	EMAS
Category:	Piezo Buzzers & Audio Indicators
Description:	Signaller: lighting-sound; 12÷24VDC; 12÷24VAC; LED; yellow; IP65
Datasheet:
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 63.3717 ea
Line Total: USD 63.37

Availability - 18
Ship by Wed. 25 Dec to Fri. 27 Dec

MOQ: 1 Multiples: 1
Pack Size: 1

T0-IT070Y024Z More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

18

Ship by Wed. 25 Dec to Fri. 27 Dec

MOQ : 1
Multiples : 1

1 : USD 63.3717
10 : USD 61.1226

Specifications

Manufacturer
EMAS EMAS

Product Category
Piezo Buzzers & Audio Indicators Piezo Buzzers & Audio Indicators

Current Rating
250 mA 250 mA

IP Rating
IP65 IP65

Category
Unclassified Unclassified

Colour
yellow yellow

Body Material
ABS, polycarbonate ABS, polycarbonate

Supply Voltage
12 To 24 VDC , 12 To 24 VAC 12 To 24 VDC , 12 To 24 VAC

Signalling Method
continuous light, blinking light, buzzer continuous light, blinking light, buzzer

Light Source
LED LED

Connection
lead 0,5m lead 0,5m

Type Of Signaller
lighting - sound lighting - sound

Additional Functions
8 lighting functions, 7 selectable tones 8 lighting functions, 7 selectable tones

Sound Level
130dB 130dB

Body Dimensions
Ø70x229mm Ø70x229mm

Insulation Voltage
300 V 300 V

Dielectric Strength
1500V AC 1500V AC

Operational Life
20000h 20000h

Manufacturer Series
IT070 IT070

Operating Temperature
- 25 To 55 C - 25 To 55 C
