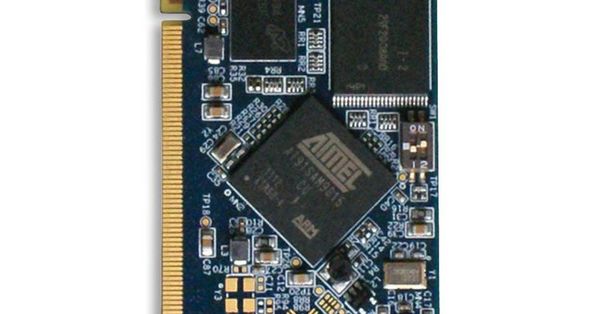

MBC-SAM9X25 Core Board Overview The ATMEL MBC-SAM9X25 ARM9 Board is an ARM embedded board produced by Embest, integrate the ATMEL ARM926EJ-S-based processor AT91SAM9X25, operating at 400MHz frequency, and can support WinCE and Linux. The board has 128MB DDR2 SDRAM, 256MB NandFlash, 4MB DataFlash, 64KB Serial EEPROM, 128B one-wire EEPROM. Hardware Features ARM926EJ-S ARM Thumb Processor running up 400 MHz 1.0V +/- 10% 16 Kbyte Data Cache, 16 Kbyte Instruction Cache, Memory Management Unit One 64 KByte internal ROM embedding bootstrap routine: Boot on NandFlash, SDCard, Dataflash or serial dataflash Programmable order One 32 KByte internal SRAM, single-cycle access at system speed External 128MB DDR2 SDRAM, 256MB NandFlash, 4MB DataFlash, 64KB Serial EEPROM 128B one-wire EEPROM 10/100Mbps Ethernet MAC controller(only for MBC-SAM9X25-P) Software Features(updating) Test routines and resources based on MDK Project Description audio Audio test nandflash Get familiar with the Nandflash operation fatfs Get familiar with the basic operation of file system filesystem Base on FAT file system and Embedded
