S5414 Energizer

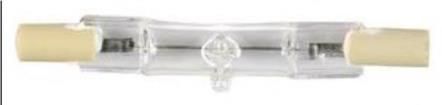

DATA SHEET ECO Halogen 120W LINEAR Product Overview Main voltage halogen lamps operate direct from the mains, without the need for a transformer, and can be dimmed: making them quick and easy to install, simple to operate and lowering installation and user costs. Features More eco-valued. Excellent color rendering and consistency Reliable construction Safety and Maintenance Switch off supply before installing or removing lamp. Allow to cool before handling. Do not use in application where voltage is unable This is a glass product, handle with care Page: 1 DATA SHEET Specifications R7s SKU S5414 S5160 Lamp R7s Nominal Power (W) 120 Voltage 220-240Vac 50Hz Current (mA) Nominal Luminous Flux (lm) 2250 CCT (K) 2900K warm White Nominal Lifetime (h) 2000 Dimmable Yes Switching Cycles 8000 Warm-up time to 60% (S) instant Length (mm) 78 Diameter (mm) 8 Mercury (mg) 0 Clean-up instructions See website Retrofit Yes Equivalent Wattage (W) 150 Rated Power (W) 120 Rated Luminous Flux (lm) 2250 Rated Lifetime (h) 2000 Power Factor 1 Rated Peak Candelas (cd) 920 Lumen Maintenance Factor at Nominal Lifetime 2000 CRI >99 Start Time (s) instant Ambient Temperature Range (C) -20 to 40 Energy Label R7s Energy Class C Energy Consumption (kWh/1000h) 120.00* * The kWh/1000h value published on the energy label is required to be rounded up to an integer according to the EU implementing directive on Energy Labelling. The value to 2 decimal places is given for reference Product Markings R7s Voltage 220-240Vac 50Hz Nominal Power (W) 120 Current (mA) CE Mark Yes WEEE Mark Yes Batch Code Yes Page: 2
