Product Information

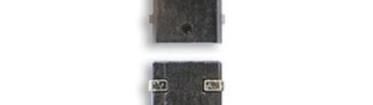

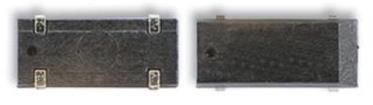

PH32768X

PH32768X electronic component of Euroquartz

Datasheet
CRYSTAL, 3X8MM, PLT, 32.768KHZ, 12.5
Manufacturer: Euroquartz
This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges



Price (USD)

1: USD 1.3574 ea
Line Total: USD 1.36

0 - Global Stock
MOQ: 1  Multiples: 1
Pack Size: 1

 More Buying Options & Price Grid(s)

Availability Price Quantity
0 - WHS 1


Ships to you between Mon. 20 May to Fri. 24 May

MOQ : 1
Multiples : 1

Stock Image

PH32768X
Euroquartz

1 : USD 1.2949
25 : USD 1.0578
50 : USD 0.903
100 : USD 0.792
300 : USD 0.6794
800 : USD 0.6003

Read More Specifications


Manufacturer
Product Category
Load Capacitance
Frequency
Brand
Frequency Nom
Crystal Case
Frequency Tolerance / -
Product Range
Operating Temperature Min
Operating Temperature Max
Svhc
Accuracy
Crystal Mounting Type
No. Of Pins
Operating Temperature Range
Output Frequency
LoadingGif

Notes:- Show Stocked Products With Similar Attributes.

More Products By Manufacturer "Euroquartz"

Image Description
24.000MHZ XO91050UITA electronic component of Euroquartz 24.000MHZ XO91050UITA

OSC, 5X7MM, SMD, CER, 24.000MHZ
Stock : 0

16.384MHZ HC49/4H/30/50/40/18PF/ATF electronic component of Euroquartz 16.384MHZ HC49/4H/30/50/40/18PF/ATF

CRYSTAL, THT, 16.384MHZ
Stock : 0

24.576MHZ XO91050UITA electronic component of Euroquartz 24.576MHZ XO91050UITA

OSC, SMD, QUARTZ, 24.576MHZ
Stock : 0

25.000MHZ HC49/4H/30/50/40/18PF/ATF electronic component of Euroquartz 25.000MHZ HC49/4H/30/50/40/18PF/ATF

CRYSTAL, THT, 25.000MHZ
Stock : 0

14.3181MHZ HC49/4H/30/50/40/18PF/ATF electronic component of Euroquartz 14.3181MHZ HC49/4H/30/50/40/18PF/ATF

CRYSTAL, THT, 14.31818MHZ
Stock : 0

4.9152MHZ HC49/4H/30/50/40/18PF/ATF electronic component of Euroquartz 4.9152MHZ HC49/4H/30/50/40/18PF/ATF

CRYSTAL, THT, 4.9152MHZ
Stock : 0

12.000MHZ 49USMX/30/50/40/18PF/ATF electronic component of Euroquartz 12.000MHZ 49USMX/30/50/40/18PF/ATF

CRYSTAL, 12MHZ, 18PF, SMD
Stock : 0

8.000MHZ XO53050UITA electronic component of Euroquartz 8.000MHZ XO53050UITA

OSC, 3.2X5MM, SMD, CER, 8.000MHZ
Stock : 0

6.000MHZ HC49/4H/30/50/40/18PF/ATF electronic component of Euroquartz 6.000MHZ HC49/4H/30/50/40/18PF/ATF

CRYSTAL, THT, 6.000MHZ
Stock : 0

3.57954MHZ HC49/4H/30/50/40/18PF/ATF electronic component of Euroquartz 3.57954MHZ HC49/4H/30/50/40/18PF/ATF

CRYSTAL, THT, 3.579545MHZ
Stock : 0

More Products By Category "Crystals"

Image Description
HC49USM-FF3F18-25.0000 electronic component of Abracon HC49USM-FF3F18-25.0000

Resonator: quartz; 25MHz; ±30ppm; 18pF; SMD; HC49SM
Stock : 1

HC49USM-FF5F18-7.3728 electronic component of Abracon HC49USM-FF5F18-7.3728

Resonator: quartz; 7.3728MHz; ±30ppm; 18pF; SMD; HC49SM
Stock : 1

ABL-3.6864MHZ-B2 electronic component of ABRACON ABL-3.6864MHZ-B2

Crystals +/-20ppm 3.6864MHZ FUNDAMENTAL
Stock : 1

ABLS-24.576MHZ-B2F-T electronic component of ABRACON ABLS-24.576MHZ-B2F-T

Crystals +/-20ppm 24.576 MHZ FUNDAMENTAL
Stock : 1

Hot ABM8-14.7456MHZ-10-1-U-T electronic component of ABRACON ABM8-14.7456MHZ-10-1-U-T

ABRACON Crystals 14.7456MHz 10pF -10C 60C 10ppm
Stock : 1

Hot ECS-92.1-S-1X electronic component of ECS Inc ECS-92.1-S-1X

Crystals 9.216MHz SERIES
Stock : 1

9C-27.000MAAE-T electronic component of TXC Corporation 9C-27.000MAAE-T

Crystals 27.000MHz 12pF 30ppm -20C +70C
Stock : 1

Hot ABM3-27.000MHZ-B2-T electronic component of ABRACON ABM3-27.000MHZ-B2-T

Crystals CRYSTAL 27.0000MHZ 18PF SMD
Stock : 1

Hot FOXSDLF/240F-20 electronic component of Abracon FOXSDLF/240F-20

Crystals 24MHz 20pF
Stock : 1

12.60043 electronic component of Geyer Electronic 12.60043

Crystal 25MHz 30ppm (Tol) 30ppm (Stability) 12pF FUND 50Ohm 4-Pin SMD T/R
Stock : 1

Additional Infomation About Product

EURO QUARTZ 90SMX(N) CRYSTALS 8.7 x 3.8 x 2.5mm SMD 32.768kHz Frequency 32.768kHz Industry-standard package Compact and low-profile Supplied on EIA tape and reel DESCRIPTION 90SMX(N) crystals are miniature surface-mount crystals specifically OUTLINE & DIMENSIONS designed to provide a low-cost and reliable source of real time clock 32.768kHz frequency fro mass-marlet applications. The crystals are low-profile and encapsulated in epoxy resin. SPECIFICATION Nominal Frequency: 32.7680kHz Calibration Tolerance at 25C: 20ppm Load Capacitance (CL): 12.5pF* Equivalent Series Resistance (ESR): 50k Ohms Drive level: 1.0 W max. Q: 50,000 minimum 2 Temperature Coefficient: -0.0350.008ppm/C (Parabolic) Turnover Temperature: +255C Shunt Capacitance: 1.35pF typical Ageing: 5ppm max. in first year at 25C Insulation Resistance: 500M Ohm minimum 100VDC Crystal Cut: X-Cut Operating Temperature Range: -40 to +85C Storage Temperature Range: -55 to +125C Reflow Soldering: 10s maximum at 260C twice or 180s at 230C, once. Shock: 5ppm max, free drops x3 from 75cm height onto hard wood surface. Packaging: EIA tape and reel, 3k pieces/reel RoHS Status: Compliant * Other CL (I.e CL = 6pF) is available, check with Euroquartz. PART NUMBER AND SPECIFICATION STABILITY OVER TEMPERATURE Order stock number: PH32768X for 32.768kHz 20ppm, 12.5pF X-Cut Crystal EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 info euroquartz.co.uk www.euroquartz.co.ukX-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for euroquartz manufacturer: Other Similar products are found below : 50.000MHZ XO91050UITA 20.000MHZ 49USMX/30/50/40/18PF/ATF 24.000MHZ MJ/30/30/40/12PF 14.31818MHZ 49USMX/30/50/40/18PF/ATF 16.000MHZ 49USMX/30/50/40/18PF/ATF 4.194304MHZ 49USMX/30/50/40/18PF/ATF 16.384MHZ HC49/4H/30/50/40/18PF/ATF 8.000MHZ HC49/4H/30/50/40/18PF/ATF 27.000MHZ HC49/4H/30/50/40/18PF/ATF 24.576MHZ MJ/30/30/40/12PF 48.000MHZ XO91050UITA 3.57954MHZ HC49/4H/30/50/40/18PF/ATF 6.000MHZ HC49/4H/30/50/40/18PF/ATF MH32768C 16.000MHZ XO53050UITA 11.0592MHZ MJ/30/30/40/12PF 12.000MHZ XO53050UITA 18.432MHZ HC49/4H/30/50/40/18PF/ATF 6.000MHZ MQ/30/30/-40+90/12PF 4.000MHZ 49USMX/30/50/40/18PF/ATF 32.000MHZ XO53050UITA 12.000MHZ MQ/30/30/40/12PF 25.000MHZ HC49/4H/30/50/40/18PF/ATF 4.19430MHZ HC49/4H/30/50/40/18PF/ATF 27.000MHZ 49USMX/30/50/40/18PF/ATF 14.3181MHZ HC49/4H/30/50/40/18PF/ATF 10.000MHZ 49USMX/30/50/40/18PF/ATF MH32768B 12.000MHZ 49USMX/30/50/40/18PF/ATF 16.000MHZ MJ/30/30/40/12PF

HS Compliance

Tariff Desc

8541.60.00 25 No - Mounted piezo-electric crystals Free
