X-On Electronics has gained recognition as a prominent supplier of FH17-1A2STL-DC12V/10AS General Purpose Relays across the USA, India, Europe, Australia, and various other global locations. FH17-1A2STL-DC12V/10AS General Purpose Relays are a product manufactured by Fanhar. We provide cost-effective solutions for General Purpose Relays, ensuring timely deliveries around the world.

FH17-1A2STL-DC12V/10AS Fanhar

Name: FH17-1A2STL-DC12V/10AS
Brand: Fanhar
SKU: FH171A2STLDC12V10AS_Fanhar
Availability: OutOfStock
Rating: 5 (11 reviews)

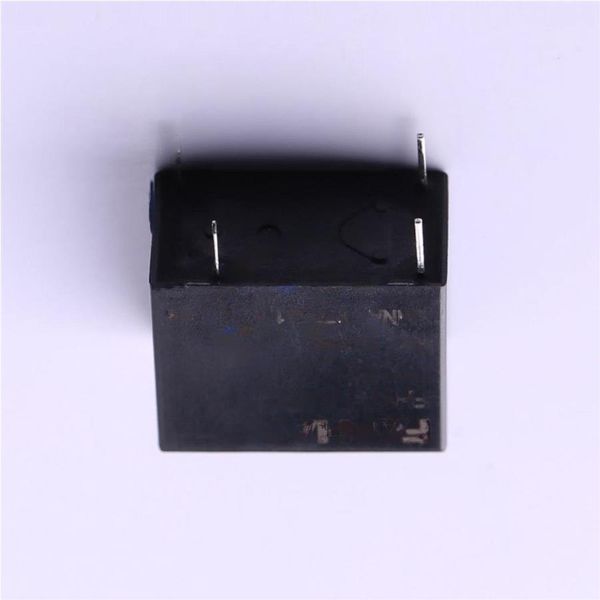

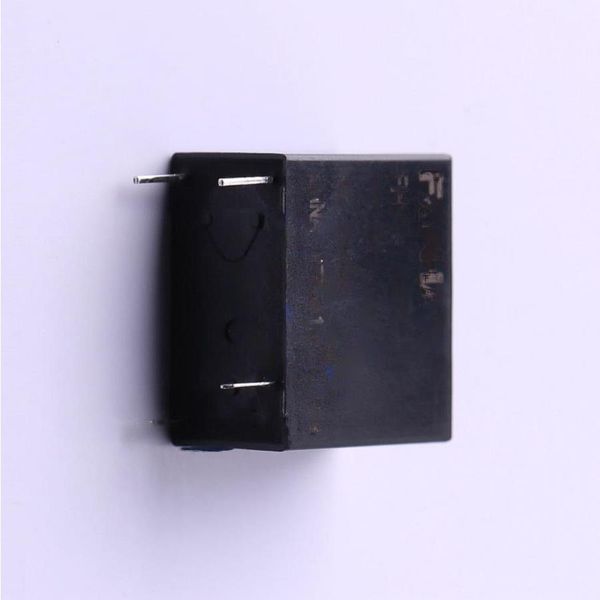

FH17-1A2STL-DC12V/10AS electronic component of Fanhar

Images are for reference only
See Product Specifications

Part No.	FH17-1A2STL-DC12V/10AS
Manufacturer:	Fanhar
Category:	General Purpose Relays
Description:	Relays Through Hole RoHS
Datasheet:
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 0.7106 ea
Line Total: USD 0.71

Availability - 0

MOQ: 1 Multiples: 1
Pack Size: 1

FH17-1A2STL-DC12V/10AS More Buying Options & Price Grid(s)

Availability	Price	Buy Price	Quantity
0 Ship by Wed. 27 Nov to Mon. 02 Dec MOQ : 1 Multiples : 1	1 : USD 0.7106 10 : USD 0.5885 30 : USD 0.5263 100 : USD 0.4643 500 : USD 0.4065 1000 : USD 0.3866

Specifications

Manufacturer Fanhar Fanhar
Product Category General Purpose Relays General Purpose Relays
Coil Voltage 12 V 12 V
Contact Form Normal Open:1A(SPST - Normal Open) Normal Open:1A(SPST - Normal Open)
Coil Type Non Latching Non Latching
Coil Resistance 720 Ohms 720 Ohms
Contact Material AgSnO2 AgSnO2
Category General Purpose Relays General Purpose Relays
Rohs y y
Package THROUGH HOLE THROUGH HOLE
Brand Category Fanhar Fanhar
Contact Rating 10A@250VAC 10A@250VAC
Contact Resistance 100 mOhms 100 mOhms
Release Time 5ms 5ms
Operate Time 10ms 10ms
Maximum Switching Voltage 277 V @AC 277 V @AC
Maximum Switching Current 16 A 16 A
Coil Rated Power 200 mW 200 mW
Operating Temperature - 40 C ~ + 70 C - 40 C ~ + 70 C
Pin Number 4 4

We are delighted to provide the FH17-1A2STL-DC12V/10AS from our General Purpose Relays category, at competitive rates not only in the United States, Australia, and India, but also across Europe and beyond. A long established and extensive electronic component distribution network has enhanced our global reach and dependability, ensuring cost savings through prompt deliveries worldwide. Client satisfaction is at the heart of our business, where every component counts and every customer matters. Our technical service team is ready to assist you. From product selection to after-sales support, we strive to deliver a seamless and satisfying experience. Are you ready to experience the best in electronic component distribution? Contact X-ON Electronics today and discover why X-On are a preferred choice for the FH17-1A2STL-DC12V/10AS and other electronic components in the General Purpose Relays category and beyond.
