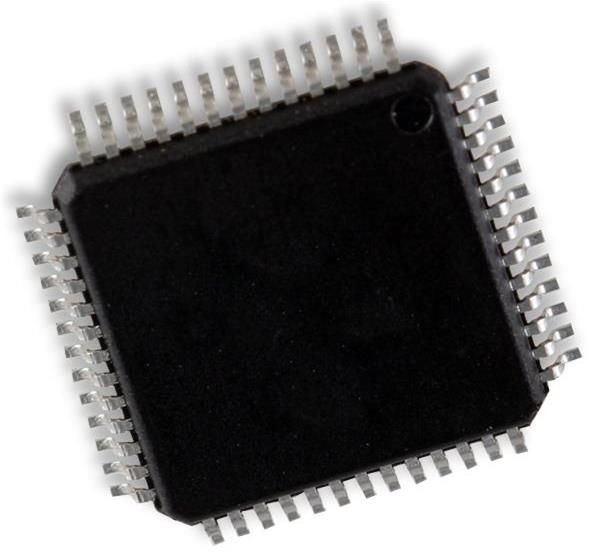

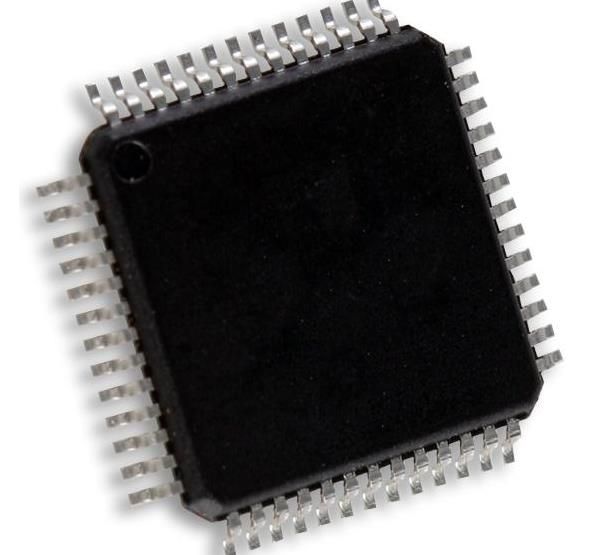

MB95F116JSPMC-GE1 Fujitsu

FUJITSU MICROELECTRONICS DS07-12611-6E DATA SHEET 8-bit Microcontrollers CMOS 2 F MC-8FX MB95110M Series MB95117M/F114MS/F114NS/F114JS/F116MS/F116NS/F116JS/F116MAS/F116NAS MB95F118MS/F118NS/F118JS/F114MW/F114NW/F114JW/F116MAW/F116NAW MB95F116MW/F116NW/F116JW/F118MW/F118NW/F118JW/FV100D-103 DESCRIPTION The MB95110M series is general-purpose, single-chip microcontrollers. In addition to a compact instruction set, the microcontrollers contain a variety of peripheral functions. 2 Note : F MC is the abbreviation of FUJITSU Flexible Microcontroller. FEATURES 2 F MC-8FX CPU core Instruction set optimized for controllers Multiplication and division instructions 16-bit arithmetic operations Bit test branch instruction Bit manipulation instructions etc. Clock Main clock Main PLL clock Sub clock (for dual clock product) Sub PLL clock (for dual clock product, except MB95F116MAW/F116NAW) (Continued) For the information for microcontroller supports, see the following web site. This web site includes theCustomer Design Review Supplemen which provides the latest cautions on system development and the minimal requirements to be checked to prevent problems before the system development. MB95110M Series (Continued) Timer 8/16-bit compound timer 2 channels Can be used to interval timer, PWC timer, PWM timer and input capture. 8/16-bit PPG 2 channels 16-bit PPG 1 channel Time-base timer 1 channel Watch prescaler (for dual clock product) 1 channel LIN-UART 1 channel LIN function, clock asynchronous (UART) or clock synchronous (SIO) serial data transfer capable Full duplex double buffer UART/SIO 1 channel Clock asynchronous (UART) or clock synchronous (SIO) serial data transfer capable Full duplex double buffer 2 I C 1 channel Built-in wake-up function External interrupt 8 channels Interrupt by edge detection (rising, falling, or both edges can be selected) Can be used to recover from low-power consumption (standby) modes. 8/10-bit A/D converter 8 channels 8-bit or 10-bit resolution can be selected Low-power consumption (standby) mode Stop mode Sleep mode Watch mode (for dual clock product) Time-base timer mode I/O port The number of maximum ports - Single clock product : 39 ports - Dual clock product : 37 ports Configuration - General-purpose I/O ports (N-ch open drain) : 2 ports - General-purpose I/O ports (CMOS) : Single clock product : 37 ports Dual clock product : 35 ports Programmable input voltage levels of port Automotive input level / CMOS input level / hysteresis input level Dual operation Flash memory (Except MB95F116MAW/F116NAW/F116MAS/F116NAS) Erase/Write and read can be executed in the different bank (Upper Bank/Lower Bank) at the same time. Flash memory security function Protects the content of Flash memory (Flash memory device only) 2 DS07-12611-6E
