X-On Electronics has gained recognition as a prominent supplier of PBS-42D02 Pushbutton Switches across the USA, India, Europe, Australia, and various other global locations. PBS-42D02 Pushbutton Switches are a product manufactured by G-Switch. We provide cost-effective solutions for Pushbutton Switches, ensuring timely deliveries around the world.

PBS-42D02 G-Switch

Name: PBS-42D02
Brand: G-Switch
SKU: PBS42D02_G-Switch
Availability: InStock
Rating: 5 (11 reviews)

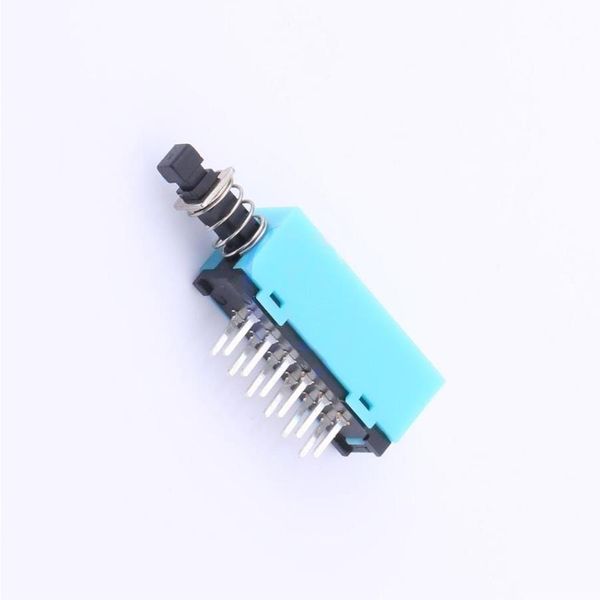

PBS-42D02 electronic component of G-Switch

Images are for reference only
See Product Specifications

Part No.	PBS-42D02
Manufacturer:	G-Switch
Category:	Pushbutton Switches
Description:	Black Projected Plunger 100MΩ -25℃~+65℃ 250gf 10000 33.2mm 500mA 7.4mm 30V Plugin Push Switches - Horizontal Type ROHS
Datasheet:	PBS-42D02 Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 0.5356 ea
Line Total: USD 0.54

Availability - 1905
Ship by Fri. 06 Dec to Wed. 11 Dec

MOQ: 1 Multiples: 1
Pack Size: 1

PBS-42D02 More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

1905

Ship by Fri. 06 Dec to Wed. 11 Dec

MOQ : 1
Multiples : 1

1 : USD 0.5356
10 : USD 0.4329
30 : USD 0.39
200 : USD 0.3342
400 : USD 0.28
1000 : USD 0.2652

Specifications

Manufacturer
G-Switch G-Switch

Product Category
Pushbutton Switches Pushbutton Switches

Voltage Rating AC
- -

Voltage Rating DC
30 V 30 V

Category
Pushbutton Switches Pushbutton Switches

Rohs
y y

Actuator/Cap Color
Black Black

Actuator Style
Projected Plunger Projected Plunger

Self Lock / No Lock
- -

Circuit
- -

Insulation Resistance
100 MOhms 100 MOhms

Operating Temperature
- 25 C ~ + 65 C - 25 C ~ + 65 C

Operating Force
250gf 250gf

Mechanical Life
10000 10000

Switch Height
33.2 mm 33.2 mm

Contact Current
500 mA 500 mA

Switch Width
7.4 mm 7.4 mm

Switch Length
- -

Notes:- Show Stocked Products With Similar Attributes.
