CA.100 TAŚMA WŁÓKNO ACETATOWE 12MM50M H-OLD

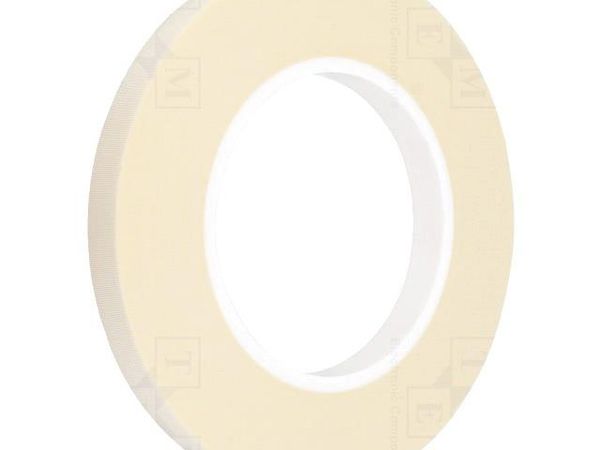

CA.100 Acetate Cloth Tape General Description: 160 micron acetate cloth coated with a thermosetting rubbr adhesive system. Designed for coil wrapping, wire harnesses and all applications where an excellent flexibility combined with ahesthetycal aspect are required. Product Features And Applications: Oustanding fexibility and conformability Good adhesion and ageing resistance Motor & transformer manufacturers Capacitor and coil manufacturers Wiring harness Industry, automotive, home appliance Technical data sheet PRODUCT TYPE Single coated BACKING TYPE Acetate cloth ADHESIVE TYPE Thermosetting Rubber COLOR White - Black BACKING THICKNESS 160 m TOTAL THICKNESS 210 m PEEL ADHESION AT 180 ON STEEL 1.80 N/cm ROLLING BALL TACK < 10 cm TENSILE STRENGTH 55.00 N/cm ELONGATION AT BREAK 10 % BREAKDOWN VOLTAGE 1.50 kV THERMAL CLASS 105 (A) SHORT TIME TEMPERATURE RESISTANCE 150 C ELECTROLITIC CORROSION 1 SHELF LIFE 12 months STANDARD LENGTH 50 m STANDARD WIDTH 1000 mm International Harmonized Test Methods: ASTM D-1000, PSTC, EN 60454-2 All statements and information listed above regarding this product are typical values for general guidance, these data have not to be intended as conformity specification. These suggestions are based on tests we believe reliable, but are not guaranteed for accuracy and completeness. The user must test, evaluate and validate this product before the use, assuming risks and liability of such use. This document may be revised without prior notice, the user who downloaded it will automatically be informed of any future revisions. Suggested storage temperature is between 10C and 30C with 50% relative humidity.X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for Adhesive Tapes category: Click to view products by H-OLD manufacturer: Other Similar products are found below : PF24.0W 4718 4516-1/4x36 56-YELLOW-34 X72YD 00-021200-13972-7 021200-64630 60 TAPE (1 ) 62-GRAY-12 X36YD 62-GRAY- 1 X36YD 69-1 X36YD 764-1 x36yd-Red 764-1 x36yd-White PG ASSY 926-1/4X18YD 967454-1 1194-14 X36YD 1181 19MM X 16,5 METERS 1182-7.7X10 1245-34 X18YD 1267 130C-1X15FT 130-1x10FT 1345-3/8x18yrd 1380-2 X8 E39-RS1-CA 1900-48mm 22- 1/2X36YD 2229-P-2-1/2x3-3/4 88-SUPER-34X44FT 890103N001 2670 SJ3527N-Black-1.5 x50yd EVK-TA-TM047NBH01 AD-UCUSB- DCAUD-SPL 20-1 X60YDS 2020-18mmx55m H150 3900-Blue 3939-24mmx55m 396-1 x36yd 4016-34 x36yd 4462W-12 x72yd 44- TAN-14 X90YD 4504-34x18 471-Trans-1 x36yd-Bulk 5414 34X36 C-22 35-Gray-1/2 371-Tan-48mmx50m 4008-12 X36YD
