X-On Electronics has gained recognition as a prominent supplier of RS601HL-1010011BB Rocker Switches across the USA, India, Europe, Australia, and various other global locations. RS601HL-1010011BB Rocker Switches are a product manufactured by HCTL. We provide cost-effective solutions for Rocker Switches, ensuring timely deliveries around the world.

RS601HL-1010011BB HCTL

Name: RS601HL-1010011BB
Brand: HCTL
SKU: RS601HL1010011BB_HCTL
Availability: InStock
Rating: 5 (11 reviews)

RS601HL-1010011BB electronic component of HCTL

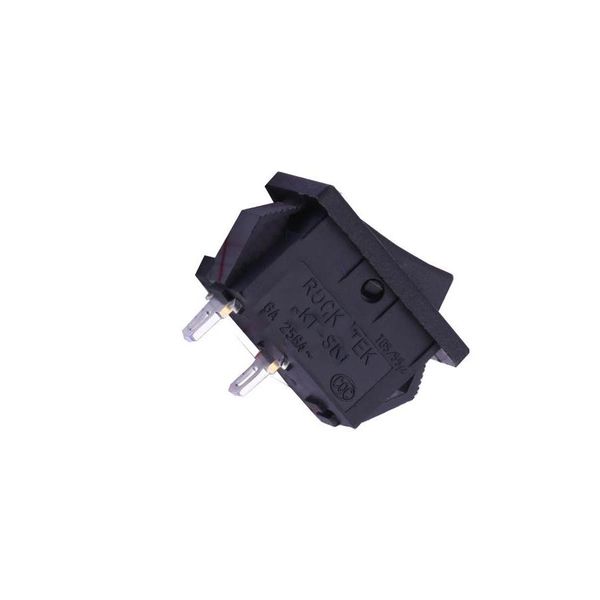

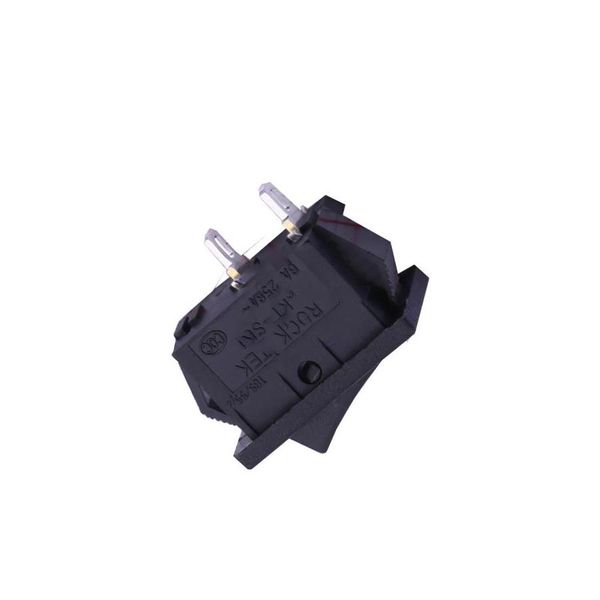

Images are for reference only
See Product Specifications

Part No.	RS601HL-1010011BB
Manufacturer:	HCTL
Category:	Rocker Switches
Description:	Black Concave edge bending SPST -25℃~+85℃ 10000 3A 15mm Solder Lug 250V 11.7mm 10.5mm No \| O Plugin Rocker Switches ROHS
Datasheet:	RS601HL-1010011BB Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

5: USD 0.3854 ea
Line Total: USD 1.93

Availability - 5344
Ship by Fri. 09 May to Wed. 14 May

MOQ: 5 Multiples: 5
Pack Size: 5

RS601HL-1010011BB More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

5344

Ship by Fri. 09 May to Wed. 14 May

MOQ : 5
Multiples : 5

5 : USD 0.3854
50 : USD 0.2992
150 : USD 0.1967
500 : USD 0.1458
2500 : USD 0.132
5000 : USD 0.1238

Specifications

Manufacturer

HCTL HCTL

Product Category

Rocker Switches Rocker Switches

Voltage Rating AC

250 V 250 V

Voltage Rating DC

- -

Category

Rocker Switches Rocker Switches

Rohs

y y

Actuator Color

Black Black

Actuator Type

Concave edge bending Concave edge bending

Circuit

SPST SPST

Operating Temperature

- 25 C ~ + 85 C - 25 C ~ + 85 C

Mechanical Life

10000 10000

Contact Current

3 A 3 A

Switch Length

15 mm 15 mm

Pin Style

Solder Lug Solder Lug

Switch Height

11.7 mm 11.7 mm

Switch Width

10.5 mm 10.5 mm

With Lamp

No No

Actuator Marking

| O | O
