X-On Electronics has gained recognition as a prominent supplier of TC-3601L-2.5-260G Tactile Switches across the USA, India, Europe, Australia, and various other global locations. TC-3601L-2.5-260G Tactile Switches are a product manufactured by HCTL. We provide cost-effective solutions for Tactile Switches, ensuring timely deliveries around the world.

TC-3601L-2.5-260G HCTL

Name: TC-3601L-2.5-260G
Brand: HCTL
SKU: TC3601L25260G_HCTL
Availability: InStock
Rating: 5 (11 reviews)

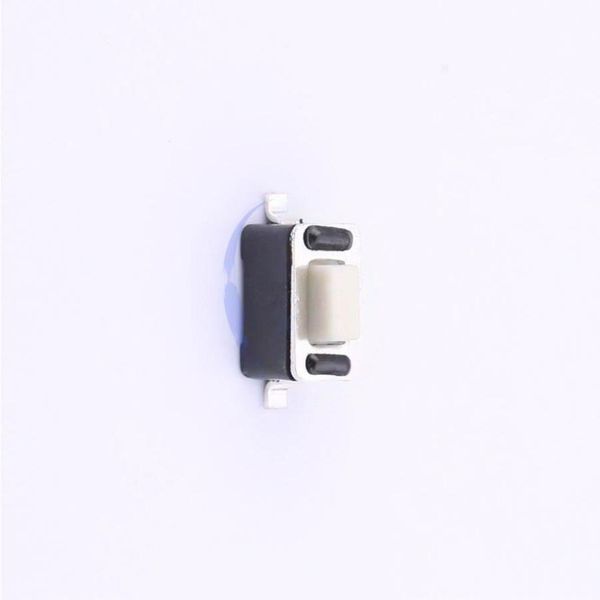

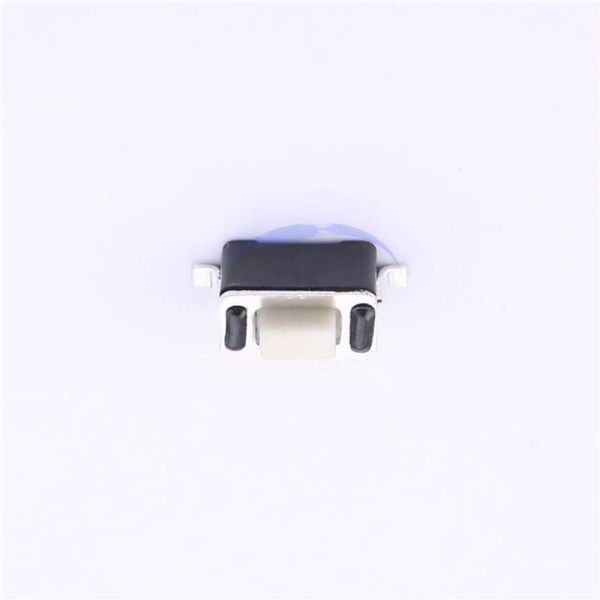

TC-3601L-2.5-260G electronic component of HCTL

Images are for reference only
See Product Specifications

Part No.	TC-3601L-2.5-260G
Manufacturer:	HCTL
Category:	Tactile Switches
Description:	No -25℃~+85℃ Gull Wing 2.5mm Beige Square Plunger 50mA Brick nogging SPST 100MΩ 80000 260gf@±50gf 12V SMD Tactile Switches ROHS
Datasheet:	TC-3601L-2.5-260G Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

20: USD 0.0301 ea
Line Total: USD 0.6

Availability - 5172
Ship by Thu. 09 Jan to Tue. 14 Jan

MOQ: 20 Multiples: 20
Pack Size: 20

TC-3601L-2.5-260G More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

5172

Ship by Thu. 09 Jan to Tue. 14 Jan

MOQ : 20
Multiples : 20

20 : USD 0.0301
200 : USD 0.0242
600 : USD 0.0208
3000 : USD 0.0184
9000 : USD 0.0167
21000 : USD 0.0158

Specifications

Manufacturer

HCTL HCTL

Product Category

Tactile Switches Tactile Switches

Operating Force

260gf@ ± 50gf 260gf@ ± 50gf

Voltage Rating DC

12 V 12 V

Mounting Style

Brick nogging Brick nogging

Category

Tactile Switches Tactile Switches

Rohs

y y

With Lamp

No No

Operating Temperature

- 25 C ~ + 85 C - 25 C ~ + 85 C

Pin Style

Gull Wing Gull Wing

Switch Height

2.5 mm 2.5 mm

Actuator/Cap Color

Beige Beige

Actuator Style

Square Plunger Square Plunger

Contact Current

50 mA 50 mA

Circuit

SPST SPST

Insulation Resistance

100 MOhms 100 MOhms

Mechanical Life

80000 80000

Notes:- Show Stocked Products With Similar Attributes.
